EC fan 320 RD PWM
EC Axial Fan 170W 230V AC 280x280x80mm F2E-320B23HRP Two Ball Bearing
EC fan 320 RD PWM
EC Axial Fan 170W 230V AC 280x280x80mm F2E-320B23HRP Two Ball Bearing
EC fan 320 RD PWM
EC Axial Fan 170W 230V AC 280x280x80mm F2E-320B23HRP Two Ball Bearing
EC fan 320 RD PWM
EC Axial Fan 170W 230V AC 280x280x80mm F2E-320B23HRP Two Ball Bearing

EC Axial Fan 170W 230V AC 280x280x80mm F2E-320B23HRP Two Ball Bearing

$155.10 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
People are currently viewing this
In stock!
Free Express Shipping on Orders Over $200 | Bulk Discounts Available.

No code needed — just add items to your cart and head to checkout!

100% Fit & Function Guarantee | 30-Day Technical Returns.

Not the right spec for your rail? Return unopened packs within 30 days for a full refund or exchange.

Select The Options Above

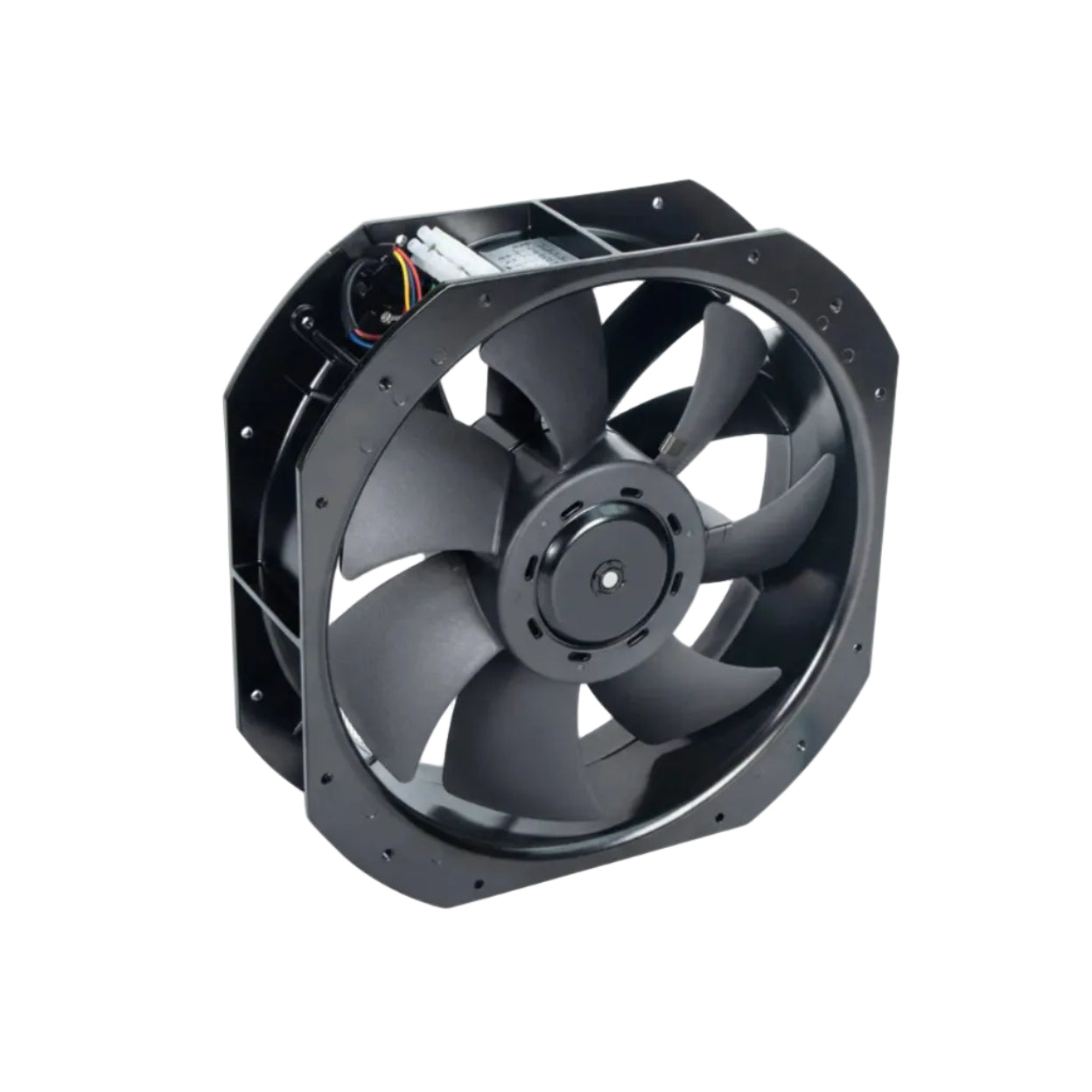

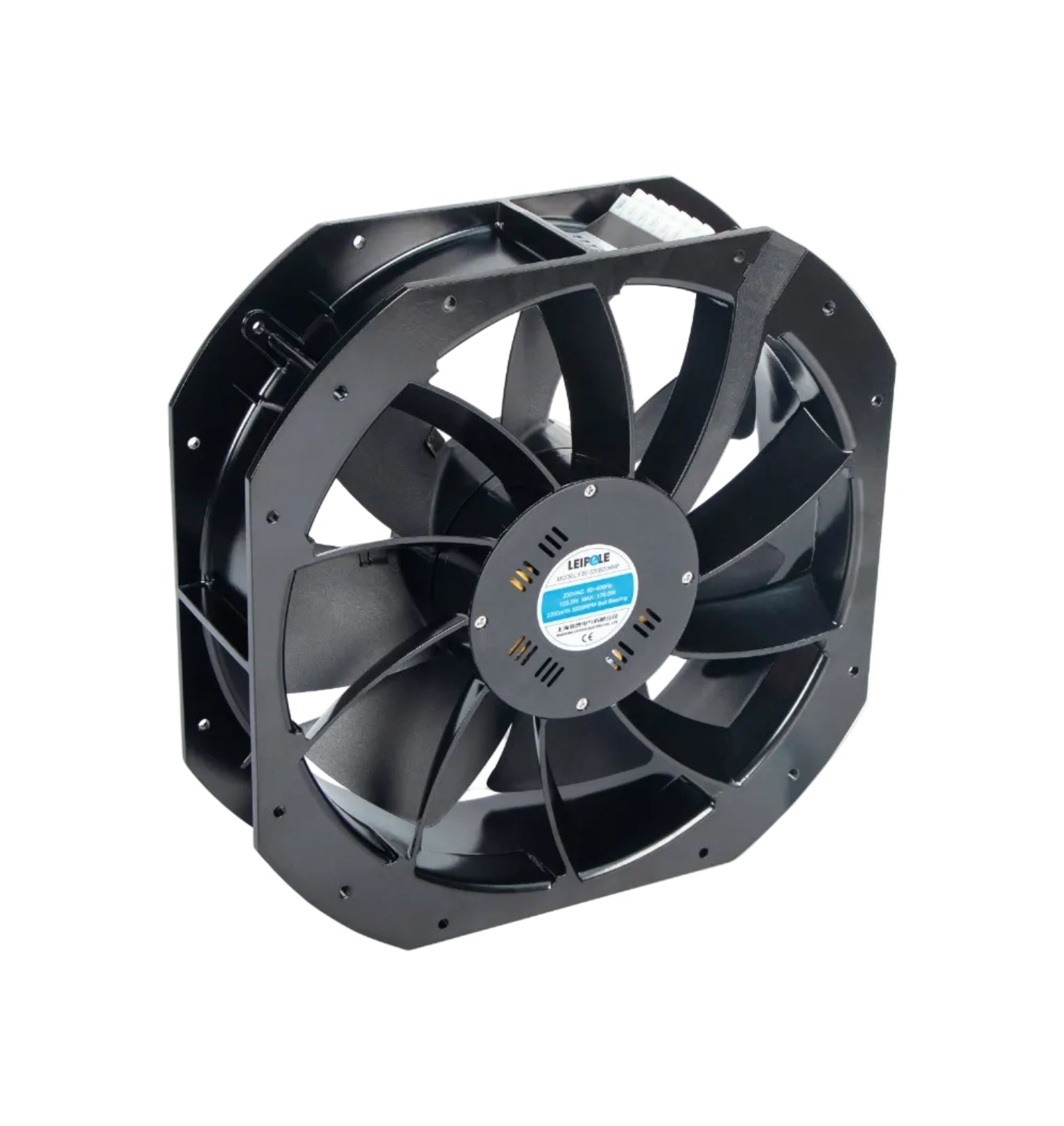

The LEIPOLE F2E-320B23HRP EC Axial Fan provides high-performance electrical solutions for demanding industrial environments. Engineered for superior reliability, this fan is ideal for electrical cabinets and automation systems requiring efficient thermal management. With its durable two ball bearing design and robust aluminum alloy frame, it ensures consistent operation and longevity for critical equipment.

Key Features

  • Delivers an exceptional maximum air flow of 1298.20 CFM (36.74 m³/min) for optimal cooling.
  • Equipped with a reliable two ball bearing system offering a life expectancy of 70,000 hours at 25°C.
  • Features comprehensive safety mechanisms including locked rotor protection, automatic restart, and polarity protection.
  • Supports both PWM and VC speed control modes, allowing for precise airflow adjustments.
  • Constructed with a black aluminum alloy frame and flame-retardant PBT UL94V-0 propeller and bobbin.
  • Provides an IP22 waterproof rating and meets CE safety approvals for industrial applications.

Applications

This industrial-grade EC Axial Fan is designed for integration into electrical cabinets, control panels, and automated machinery systems. It provides essential heat dissipation to maintain safe operating temperatures, preventing equipment failure and ensuring the continuous operation of high-power electrical components.

Technical Specifications

Parameter Value
Product Name EC Axial Fan
Model Number F2E-320B23HRP
Dimensions 280 * 280 * 80 mm
Rated Voltage 230 VAC
Operating Voltage 150-240 VAC
Operating Frequency 50~400 Hz
Rated Power 123.2 W (Max: 170.0 W)
Rated Speed 3200 Rpm/min ±10%
Max. Air Flow 1298.20 CFM (36.74 m³/min)
Max. Static Pressure 35.49 mmH2O
Noise Level 70.1 dBA (Max: 75.0 dBA)
Bearing Type Two Ball Bearing
Life Expectancy 70,000 hrs at 25°C
Waterproof Level IP22
Operating Temperature -10°C to +70°C
Safety Approvals CE
