• 190FLW3 Centrifugal Fan | 620 m³/h, Ø190 mm | 380V AC Single-Phase Capacitor Motor
190FLW3
190FLW3

190FLW3 Centrifugal Fan | 620 m³/h, Ø190 mm | 380V AC Single-Phase Capacitor Motor

$125.09 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Version: 380V AC
Select The Options Above

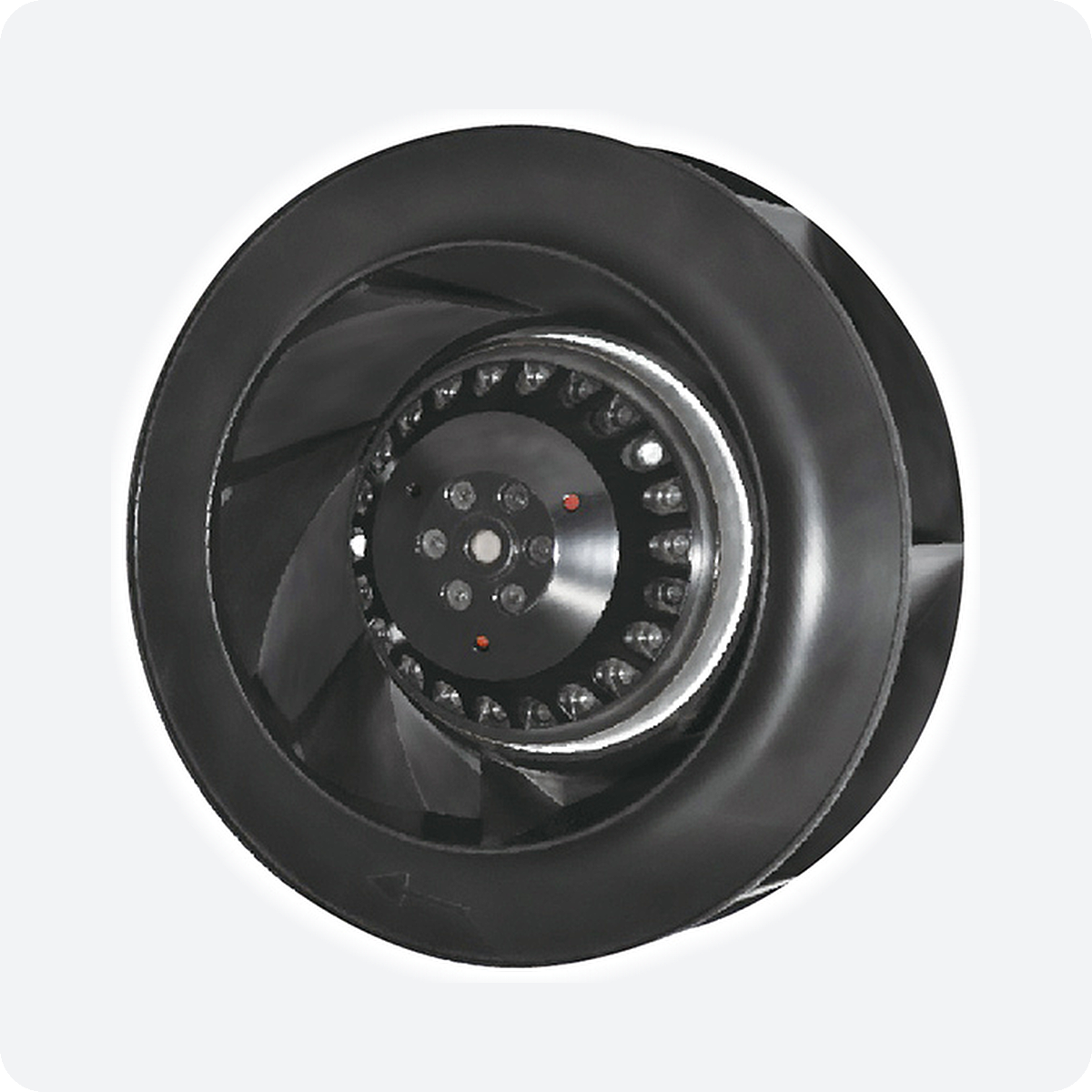

The LEIPOLE 190FLW3 is a Ø190 mm centrifugal fan with a capacitive external-rotor motor for 380V AC single-phase supply. The flame-retardant PA66 impeller draws air in axially and discharges it at 90°.

Technical Specifications

Model 190FLW3
Order number 2019.006
Motor code M2D09201-AF
Motor type Capacitive external-rotor centrifugal motor, 2 poles
Rated voltage 380V AC, 50/60 Hz, single phase
Voltage range 353–406V
Rated current (50/60 Hz) 0.17 / 0.19 A
Power consumption (50/60 Hz) 63 / 73 W
Rated speed (50/60 Hz) 2500 / 2700 rpm
Max. airflow 620 m³/h
Max. noise 68 / 70 dB(A)
Capacitor CBB60 0.5 μF / 630 V
Bearing Ball bearing (NMB 608)
Impeller Flame-retardant PA66
Air direction Straight in, 90° out
Motor protection Thermal overheat protection (130 °C), automatic reset
Insulation class Class F (IEC 61858)
Ingress protection IP20
Operating temperature -30 °C to +75 °C
Service life 50,000 h at 25 °C
Dimensions Ø190 × 70 mm
Weight 1.23 kg
Certifications CE, UL/cUL (E324860)

Packaging

Order number 2019.006
Units per box 1 pc
Box dimensions (L × W × H) 27 × 26.5 × 13 cm
Box gross weight 1.75 kg
Units per carton 14 pcs
Carton dimensions (L × W × H) 71 × 59 × 41 cm
Carton gross weight 23.86 kg

The LEIPOLE 190FLW3 is a Ø190 mm centrifugal fan with a capacitive external-rotor motor for 380V AC single-phase supply. The flame-retardant PA66 impeller draws air in axially and discharges it at 90°.

Use it for ventilation and heat removal in control cabinets and electrical enclosures. Specifications: 620 m³/h, Ø190 mm.
