• D8x12 Insulated Terminal Busbar | 8 × 12 mm Brass, 150 A, 4–12 Poles, M4 Screws | N/PE Terminal Bar in Insulated Housing | Packs of 50–100
D8x12
D8x12

D8x12 Insulated Terminal Busbar | 8 × 12 mm Brass, 150 A, 4–12 Poles, M4 Screws | N/PE Terminal Bar in Insulated Housing | Packs of 50–100

$99.24 USD
$1.98 pc

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Pole Quantity: D8x12-4K, 4-pole (50 pcs)
Select The Options Above

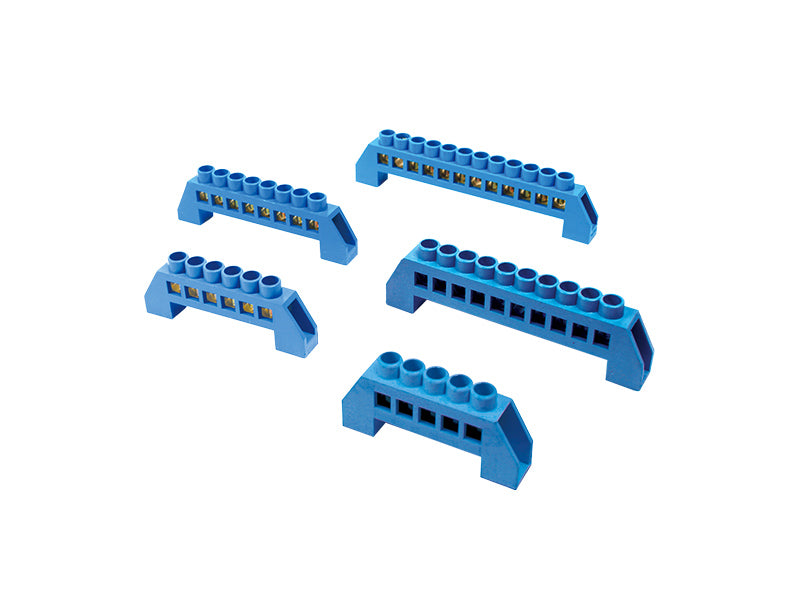

The LEIPOLE D-series terminal busbar combines an 8 × 12 mm brass bar rated 150 A with an insulated enclosure and M4 clamping screws, for neutral or protective-earth collection in distribution boards. Available with 4 to 12 poles.

Model Overview

Model Order no. Poles Pitch Pack
D8x12-4K 5015.013 4 48 mm, M4 50 pcs
D8x12-5K 5015.014 5 55 mm, M4 50 pcs
D8x12-6K 5015.015 6 65 mm, M4 100 pcs
D8x12-8K 5015.016 8 82 mm, M4 50 pcs
D8x12-10K 5015.017 10 99 mm, M4 50 pcs
D8x12-12K 5015.018 12 116 mm, M4 50 pcs

Technical Specifications

Series D series (D-8×12)
Bar section 8 × 12 mm, brass
Rated current 150 A
Design Brass bar in insulated enclosure
Clamping screws M4

Packaging

Model Order no. Units per box Box gross weight
D8x12-4K 5015.013 50 pcs 1.47 kg
D8x12-5K 5015.014 50 pcs 1.59 kg
D8x12-6K 5015.015 100 pcs 4.15 kg
D8x12-8K 5015.016 50 pcs 2.61 kg
D8x12-10K 5015.017 50 pcs 3.09 kg
D8x12-12K 5015.018 50 pcs 3.82 kg

The LEIPOLE D-series terminal busbar combines an 8 × 12 mm brass bar rated 150 A with an insulated enclosure and M4 clamping screws, for neutral or protective-earth collection in distribution boards. Available with 4 to 12 poles.

Use it as a collection or bonding point for neutral or protective-earth conductors in enclosures and distribution boards. Specifications: 8 × 12 mm Brass, 150 A, 4–12 Poles, M4 Screws.

  • Standard delivery within 7–15 business days
  • Request a return within 30 days after the last item in your order is delivered
  • Return items in original condition for a full refund
  • Customers cover return shipping costs for standard returns
  • No restocking fee
  • Cancellation requests are accepted before the item is fulfilled (shipped)
Add to Cart Select The Options Above
