F2E220-230-DVP Roof Ventilator | 675/702 m³/h IP55, 230V AC | Enclosure Top Exhaust Fan, RAL7035 / RAL7032

$233.06 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Colour: RAL7035
Select The Options Above

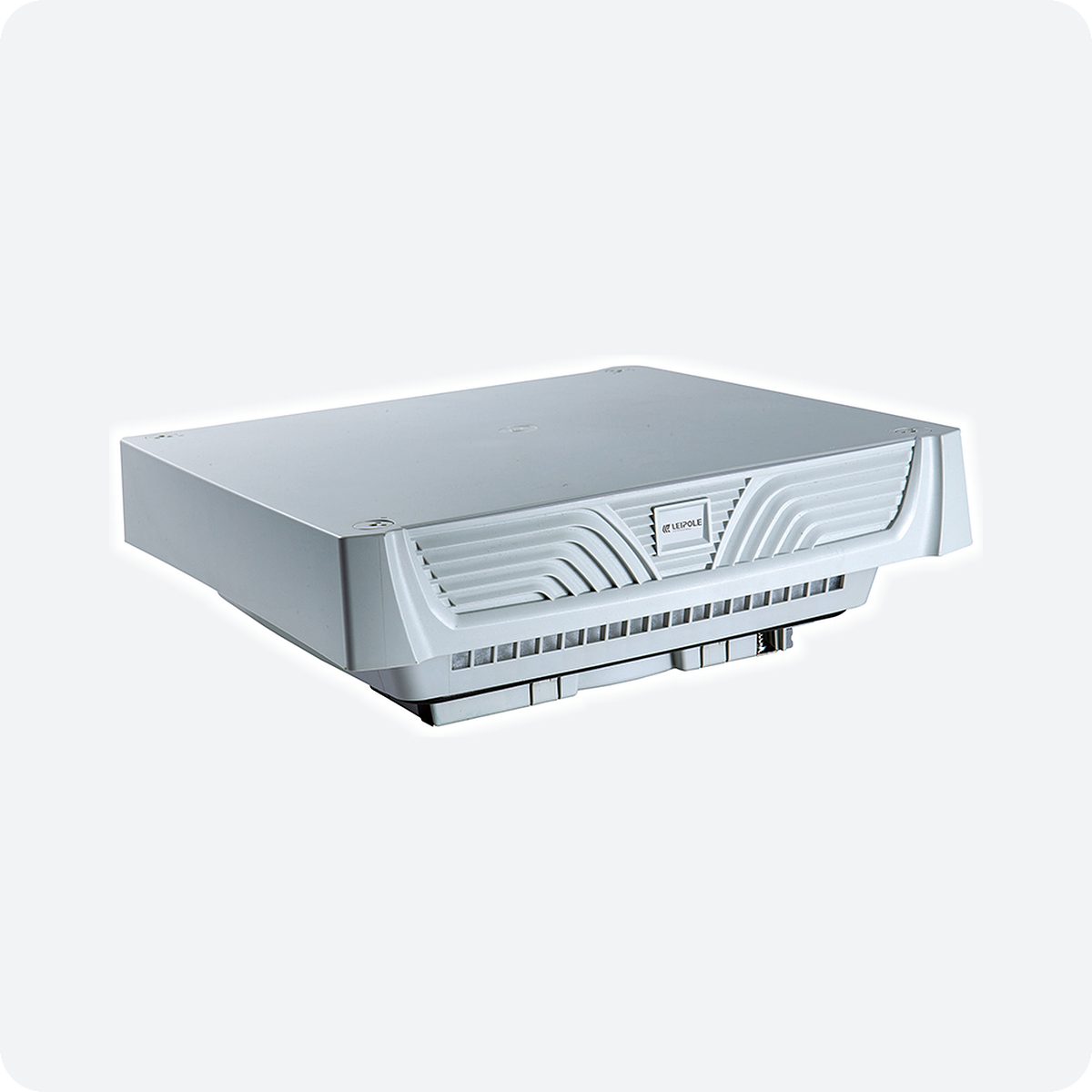

The LEIPOLE F2E220-230-DVP is a DVP-series roof (top-mounted) ventilator with a centrifugal fan and capacitor motor. It exhausts warm air through the cabinet roof and is available in RAL7035 or RAL7032; supply air enters through exit filters such as the FKL6626.300.

Technical Specifications

Model F2E220-230-DVP
Order number 2017.019 (RAL7035), 2017.024 (RAL7032)
Product type Roof ventilator with centrifugal fan
Motor Capacitor motor
Rated voltage 230V AC, 50/60 Hz
Voltage range 200–240V AC
Air flow, free blowing (IP22) 860/900 m³/h (50/60 Hz)
Air flow, free blowing (IP55) 675/702 m³/h (50/60 Hz)
Rated current 0.51/0.55 A (50/60 Hz)
Power 105/123 W (50/60 Hz)
Noise level 74 dB
Protection class IP22 / IP55
Dimensions (W × H × L) 400 × 135 × 400 mm
Cut-out size 258 × 258 mm
Operating temperature -20 °C to +55 °C
Storage temperature -25 °C to +70 °C
Flammability rating UL94-V2
Recommended exit filter FKL6626.300
Colour RAL7035 / RAL7032

Packaging

Version Order no. Box dimensions (L × W × H) Box gross weight Units per carton
RAL7035 2017.019 47 × 47 × 19.5 cm 6.92 kg 4 pcs
RAL7032 2017.024 47 × 47 × 19.5 cm 6.82 kg 4 pcs

The LEIPOLE F2E220-230-DVP is a DVP-series roof (top-mounted) ventilator with a centrifugal fan and capacitor motor. It exhausts warm air through the cabinet roof and is available in RAL7035 or RAL7032; supply air enters through exit filters such as the FKL6626.300.

Use it for ventilation and heat removal in control cabinets and electrical enclosures. Specifications: 675/702 m³/h IP55, 230V AC.
