• FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan

FB9804/120B Slim Filter Fan | 204x204 mm, 120mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan

$28.43 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Voltage: 230V AC
Colour: RAL7035
Select The Options Above

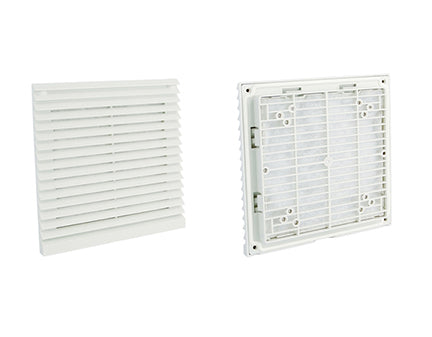

The LEIPOLE FB9804/120B is a slim 204 × 204 mm filter fan unit with a 120 mm ball-bearing fan, offered for 230V AC and 115V AC supply and in two housing colours (RAL7035 light grey, RAL7032 pebble grey). A low-profile louvre and edge sealing strip protect the cabinet opening against rain and dust; the non-woven filter mat retains particles larger than 10 µm.

Model Overview

Model Order no. Voltage Colour
FB9804/120B.230 2016.042 230V AC RAL7035
FB9804/120B.115 2016.046 115V AC RAL7035
FB9804/120B.230 2016.011 230V AC RAL7032
FB9804/120B.115 2016.015 115V AC RAL7032

Technical Specifications

Series FB9804/120B
Product type Slim filter fan unit (fan + filter)
Fitted fan 120 mm ball-bearing fan
Supply voltage options 230V AC, 115V AC
Housing colours RAL7035 / RAL7032
Frame dimensions 204 × 204 mm
Cut-out dimensions 173 × 173 mm
Screw hole spacing 184 × 184 mm
Filter mat 12 mm G2 non-woven filter mat
Protection class IP54
Housing material ABS, UL94-V2

Packaging

Version Order no. Box dimensions (L × W × H) Box gross weight Units per carton
230V AC / RAL7035 2016.042 21.3 × 21.3 × 11.7 cm 1.06 kg 21 pcs
115V AC / RAL7035 2016.046 21.3 × 21.3 × 11.7 cm 0.98 kg –
230V AC / RAL7032 2016.011 21.3 × 21.3 × 11.7 cm 1.04 kg 21 pcs
115V AC / RAL7032 2016.015 21.3 × 21.3 × 11.7 cm 1.07 kg 21 pcs

The LEIPOLE FB9804/120B is a slim 204 × 204 mm filter fan unit with a 120 mm ball-bearing fan, offered for 230V AC and 115V AC supply and in two housing colours (RAL7035 light grey, RAL7032 pebble grey). A low-profile louvre and edge sealing strip protect the cabinet opening against rain and dust; the non-woven filter mat retains particles larger than 10 µm.

Use it for ventilation and heat removal in control cabinets and electrical enclosures. Specifications: 204x204 mm, 120mm Ball-Bearing.

  • Standard delivery within 7–15 business days
  • Request a return within 30 days after the last item in your order is delivered
  • Return items in original condition for a full refund
  • Customers cover return shipping costs for standard returns
  • No restocking fee
  • Cancellation requests are accepted before the item is fulfilled (shipped)
Add to Cart Select The Options Above
