- SKU: 2016.044
- VENDOR: LEIPOLE
FB9804/150B Slim Filter Fan | 204x204 mm, 150mm Ball-Bearing | 230V / 115V AC IP54 Cabinet Filter Fan
$42.14 USD
Shipping calculated at checkout.
Selling quickly!
In stock!
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification
Specification
Featured
Featured
Shipping & Returns
Shipping & Returns

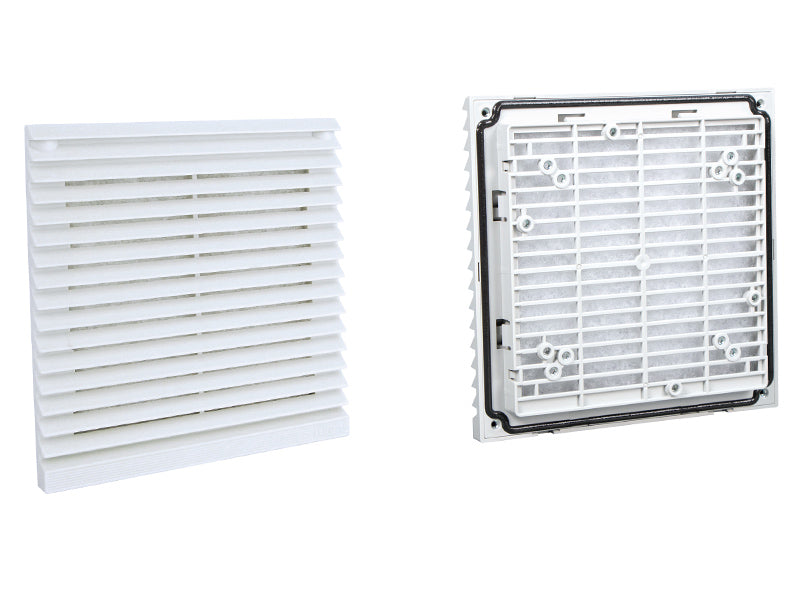

The LEIPOLE FB9804/150B is a slim 204 × 204 mm filter fan unit with a 150 mm ball-bearing fan, offered for 230V AC and 115V AC supply and in two housing colours (RAL7035 light grey, RAL7032 pebble grey). A low-profile louvre and edge sealing strip protect the cabinet opening against rain and dust; the non-woven filter mat retains particles larger than 10 µm.
Model Overview
| Model | Order no. | Voltage | Colour |
| FB9804/150B.230 | 2016.044 | 230V AC | RAL7035 |
| FB9804/150B.115 | 2016.048 | 115V AC | RAL7035 |
| FB9804/150B.230 | 2016.013 | 230V AC | RAL7032 |
| FB9804/150B.115 | 2016.017 | 115V AC | RAL7032 |
Technical Specifications
| Series | FB9804/150B |
| Product type | Slim filter fan unit (fan + filter) |

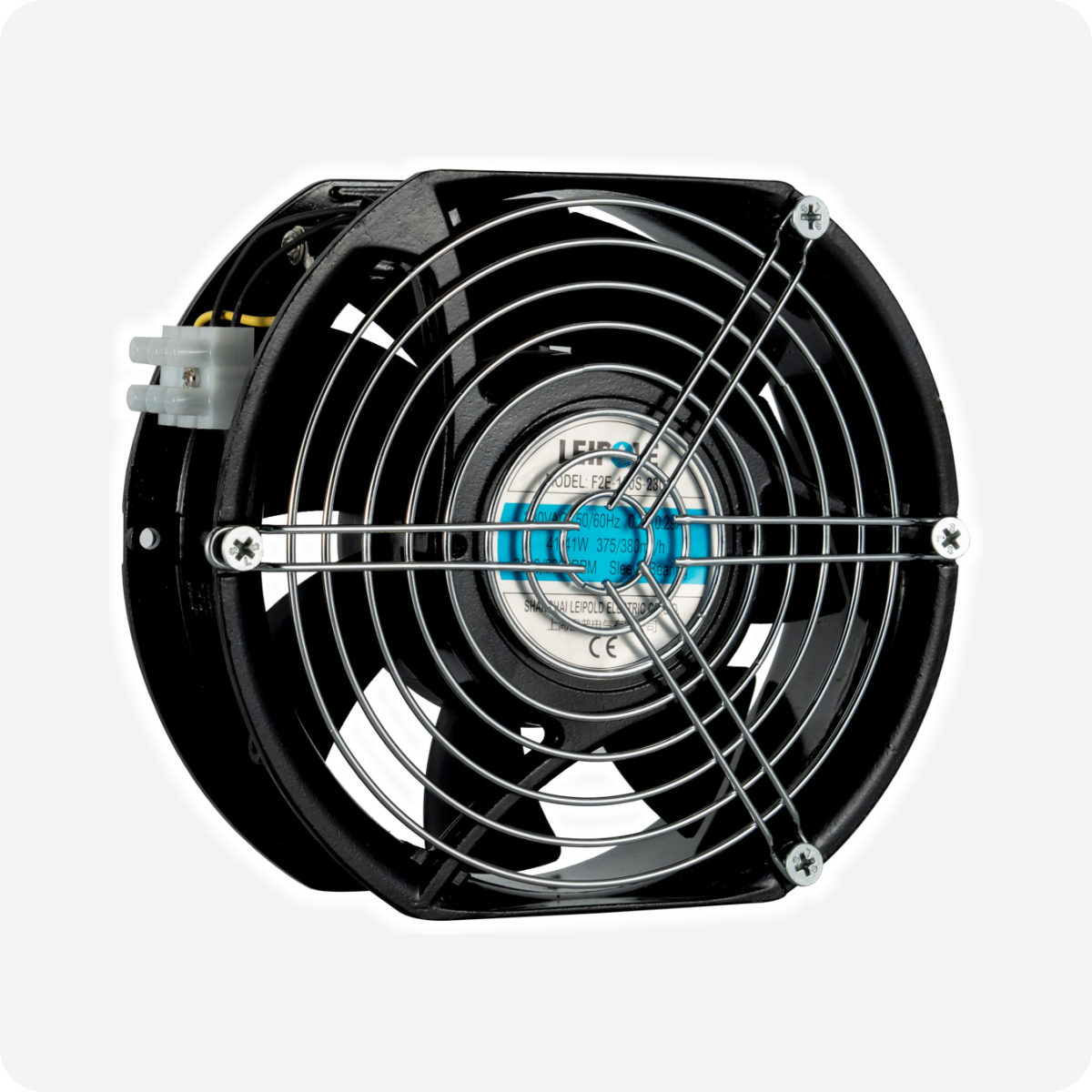

| Fitted fan | 150 mm ball-bearing fan |
| Fan model (230V) | F2E-150B-230 |
| Motor type | Shaded-pole motor |
| Rated current (230V, 50/60 Hz) | 0.29 / 0.27 A |
| Power (230V, 50/60 Hz) | 43 / 40 W |
| Free airflow (230V, 50/60 Hz) | 370 / 320 m³/h |
| Airflow with filter (230V, 50/60 Hz) | 220 / 200 m³/h |
| Noise level (230V) | 58 dB |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -15 °C to +60 °C |
| Insulation withstand voltage | 1800 V AC, 5 mA |
| Overall dimensions | 204 × 204 × 87 mm |
| Depth into cabinet | approx. 75 mm |
| Supply voltage options | 230V AC, 115V AC |
| Housing colours | RAL7035 / RAL7032 |
| Frame dimensions | 204 × 204 mm |
| Cut-out dimensions | 173 × 173 mm |
| Screw hole spacing | 184 × 184 mm |
| Filter mat | 12 mm G2 non-woven filter mat |
| Protection class | IP54 |
| Housing material | ABS, UL94-V2 |
Packaging
| Version | Order no. | Box dimensions (L × W × H) | Box gross weight | Units per carton |
| 230V AC / RAL7035 | 2016.044 | 21.3 × 21.3 × 11.7 cm | 1.49 kg | 21 pcs |
| 115V AC / RAL7035 | 2016.048 | 21.3 × 21.3 × 11.7 cm | 1.4 kg | – |
| 230V AC / RAL7032 | 2016.013 | 21.3 × 21.3 × 11.7 cm | 1.48 kg | 21 pcs |
| 115V AC / RAL7032 | 2016.017 | 21.3 × 21.3 × 11.7 cm | 1.4 kg | – |
