LEIPOLE FK9923.300 Exit Filter | 204 x 204mm | IP54 Passive Outlet

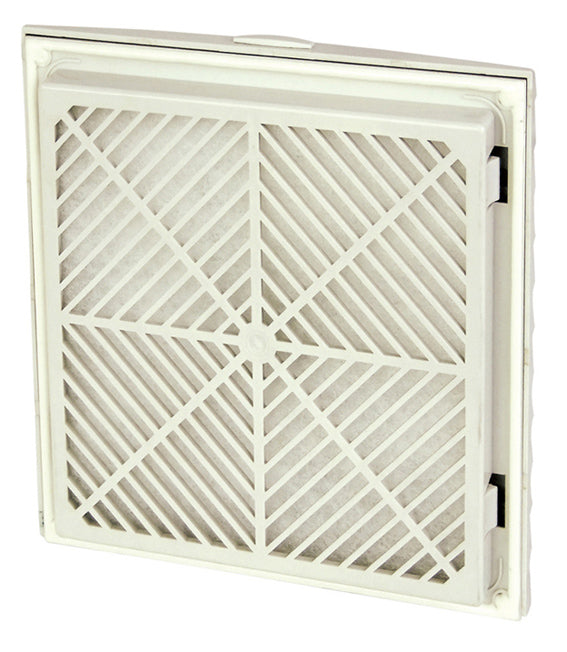

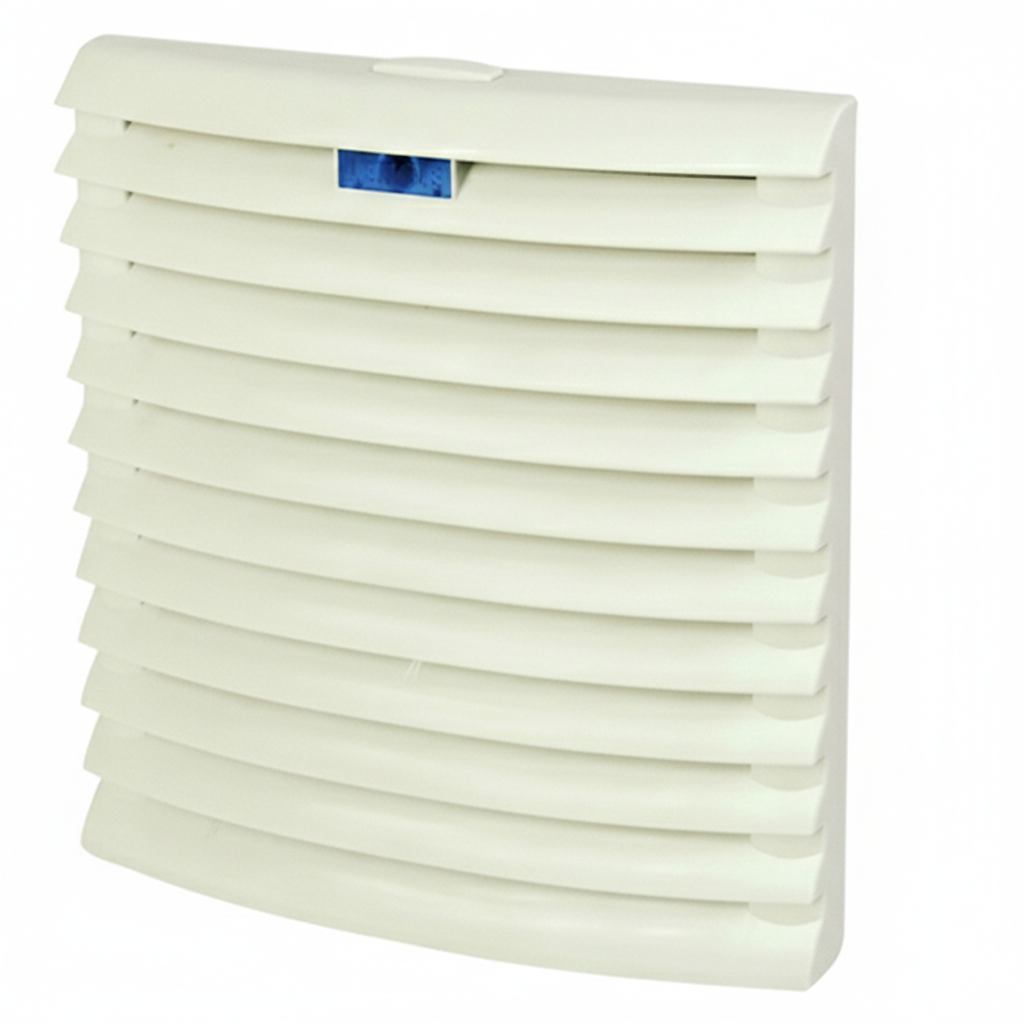

The FK9923.300 is the matching exit (outlet) filter for the FK9923 fan family. It has no motor: it provides a filtered, IP54-rated exhaust path for the air displaced by the companion filter fan, so the fan works against minimal back-pressure and the enclosure stays protected against dust ingress.

Housing dimensions match the FK9923 fans for a uniform panel layout, and the front cover opens for quick filter mat replacement.

Technical Specifications

Model / Order No. FK9923.300 / 2023.020
Type Passive exit filter (no motor)
Dimensions (W x H) 204 x 204 mm
Panel Cut-Out 177 x 177 mm
Protection Class IP54
Companion Fan Family FK9923.230 / FK9923.115 (230V/115V, 50/60 Hz) / FK9923.024 (24V DC)
Color RAL7035 / RAL7032
Min. Packaging 1 pc/box, 215 x 205 x 45 mm, ~0.36 kg gross; 65 units/carton (71 x 59 x 41 cm, 23.27 kg)

The FK9923.300 is a passive IP54 exit filter that completes the airflow path for FK9923 enclosure filter fans in mid-size control cabinets, switchgear and automation enclosures. Mount it high on the opposite side of the enclosure from the intake fan so warm air leaves through a filtered outlet.

Because it contains no motor, the FK9923.300 works with every voltage version of its companion fans — 230V/50 Hz installations in Europe and Asia as well as 115V/60 Hz panels in North America and 24V DC solar and telecom cabinets.
