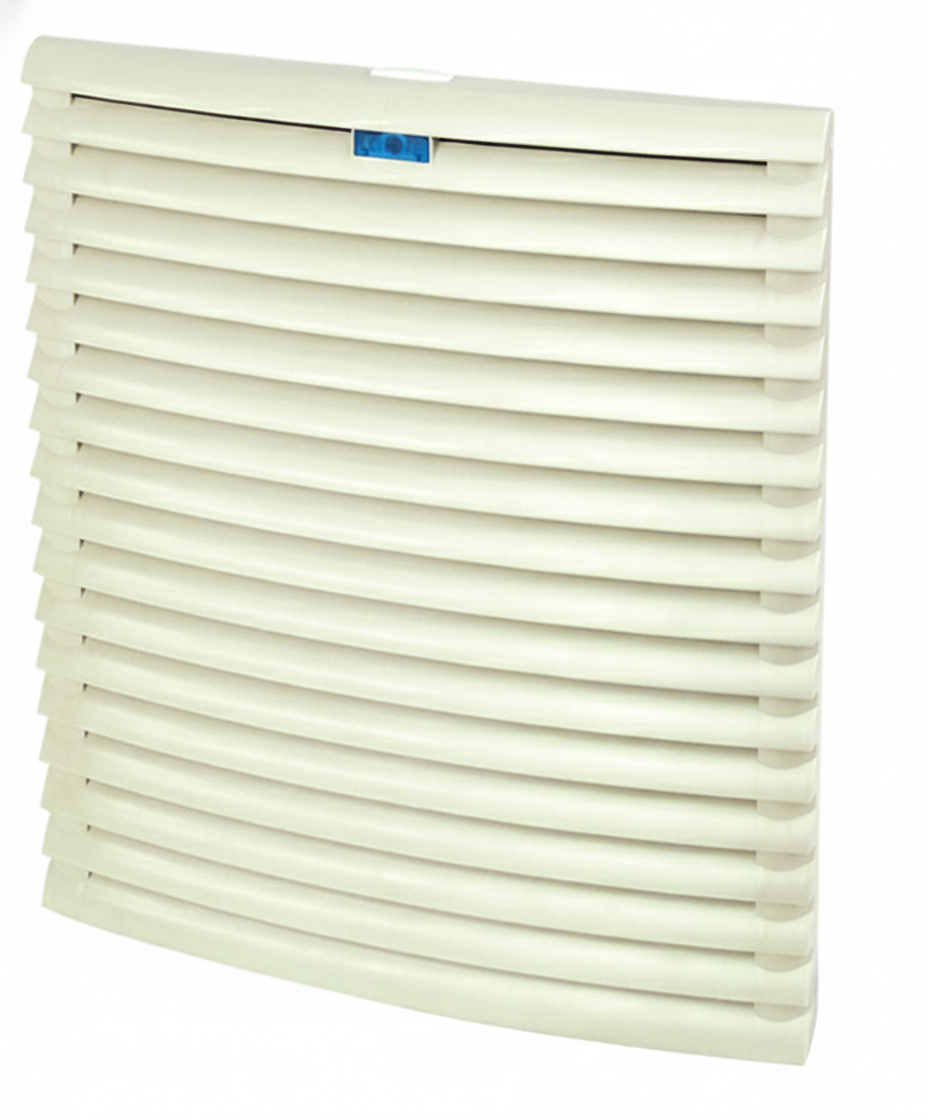

LEIPOLE FK9926.300 Exit Filter | 320 x 320mm | IP54 Passive Outlet

The FK9926.300 is the matching exit (outlet) filter for the FK9926 fan family. It has no motor: it provides a filtered, IP54-rated exhaust path for the air displaced by the companion filter fan, so the fan works against minimal back-pressure and the enclosure stays protected against dust ingress.

Housing dimensions match the FK9926 fans for a uniform panel layout, and the front cover opens for quick filter mat replacement.

Technical Specifications

Model / Order No. FK9926.300 / 2023.040
Type Passive exit filter (no motor)
Dimensions (W x H) 320 x 320 mm
Panel Cut-Out 292 x 292 mm
Screw-Hole Pattern 298 x 298 mm
Protection Class IP54
Companion Fan Family FK9926.230 / FK9926.115 (230V/115V, 50/60 Hz), FK9926.230-D / FK9926.115-D
Color RAL7035 / RAL7032
Min. Packaging 1 pc/box, 325 x 330 x 45 mm, ~0.85 kg gross; 26 units/carton (71 x 59 x 41 cm, 22.21 kg)

The FK9926.300 is a passive IP54 exit filter that completes the airflow path for FK9926 enclosure filter fans in large control cabinets, switchgear and automation enclosures. Mount it high on the opposite side of the enclosure from the intake fan so warm air leaves through a filtered outlet.

Because it contains no motor, the FK9926.300 works with every voltage version of its companion fans — 230V/50 Hz installations in Europe and Asia as well as 115V/60 Hz panels in North America.
