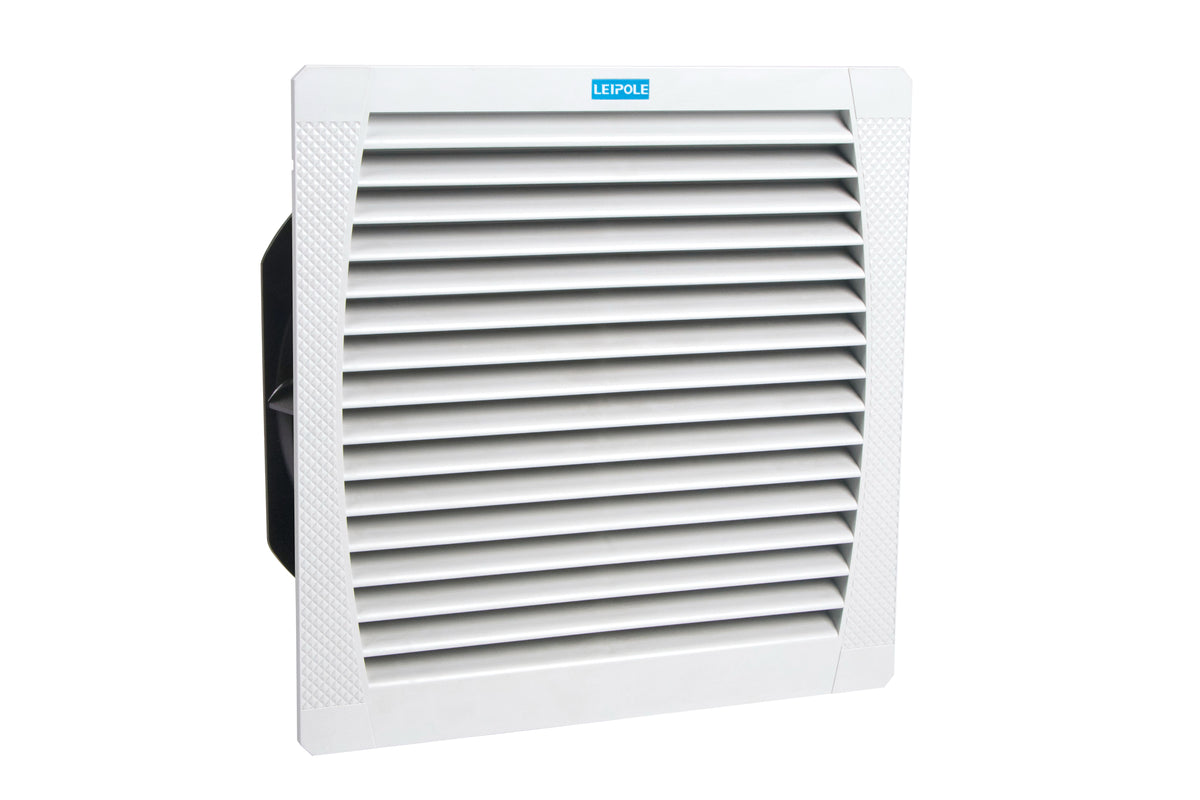

FKL5526-230 Fan Filter Unit | 292x292mm Cabinet Cooling | 230V AC High-Volume Airflow
$251.00 USD
Shipping calculated at checkout.
Selling quickly!
In stock!
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification
Specification
Featured
Featured
Shipping & Returns
Shipping & Returns
The FKL5526-230 is the standard full-size unit in the FKL55 lineup, built on a 292x292mm frame for enclosures that need substantial airflow in a slim, weather-sealed housing. It shares its cutout and filter media with the higher-output FKL5526-230-D, giving panel builders a clean upgrade path if cooling demand grows.
| Model | FKL5526.230 |
|---|---|
| Order Number / SKU | 8058.097 / 8058.121 |
| Bearing | Ball bearing |
| Voltage / Frequency | 230V AC, 50/60Hz |
| Rated Current | 0.39A / 0.32A (50Hz/60Hz) |
| Power | 71W / 69W (50Hz/60Hz) |
| Airflow | 750 / 900 m³/h (50Hz/60Hz) |
| Noise Level | 63 / 67 dB (50Hz/60Hz) |
| Cut-out Dimension | 292 x 292 mm |
| IP Rating | IP54/55 (with filter); IP20 (without filter) |
| Operating Temperature | -10°C to +55°C |
| Filter Media | Standard G3 filter; optional G4 high-efficiency pleated filter (MATL5526 / 8011.269) |
| Packaging (Min Pack) | 34.0 x 32.8 x 18.6 cm, 3.81 kg |
