• FKL6625 Filter Fan Unit | 255×255 mm, 230V AC / 115V AC / 24V DC | IP54 Cabinet Filter Fan, RAL7035 / RAL7032
FKL6625 Filter Fan Unit | 255×255 mm, 230V AC / 115V AC / 24V DC | IP54 Cabinet Filter Fan, RAL7035 / RAL7032
FKL6625 Filter Fan Unit | 255×255 mm, 230V AC / 115V AC / 24V DC | IP54 Cabinet Filter Fan, RAL7035 / RAL7032

FKL6625 Filter Fan Unit | 255×255 mm, 230V AC / 115V AC / 24V DC | IP54 Cabinet Filter Fan, RAL7035 / RAL7032

$86.32 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Voltage: 230V AC
Colour: RAL7035
Select The Options Above

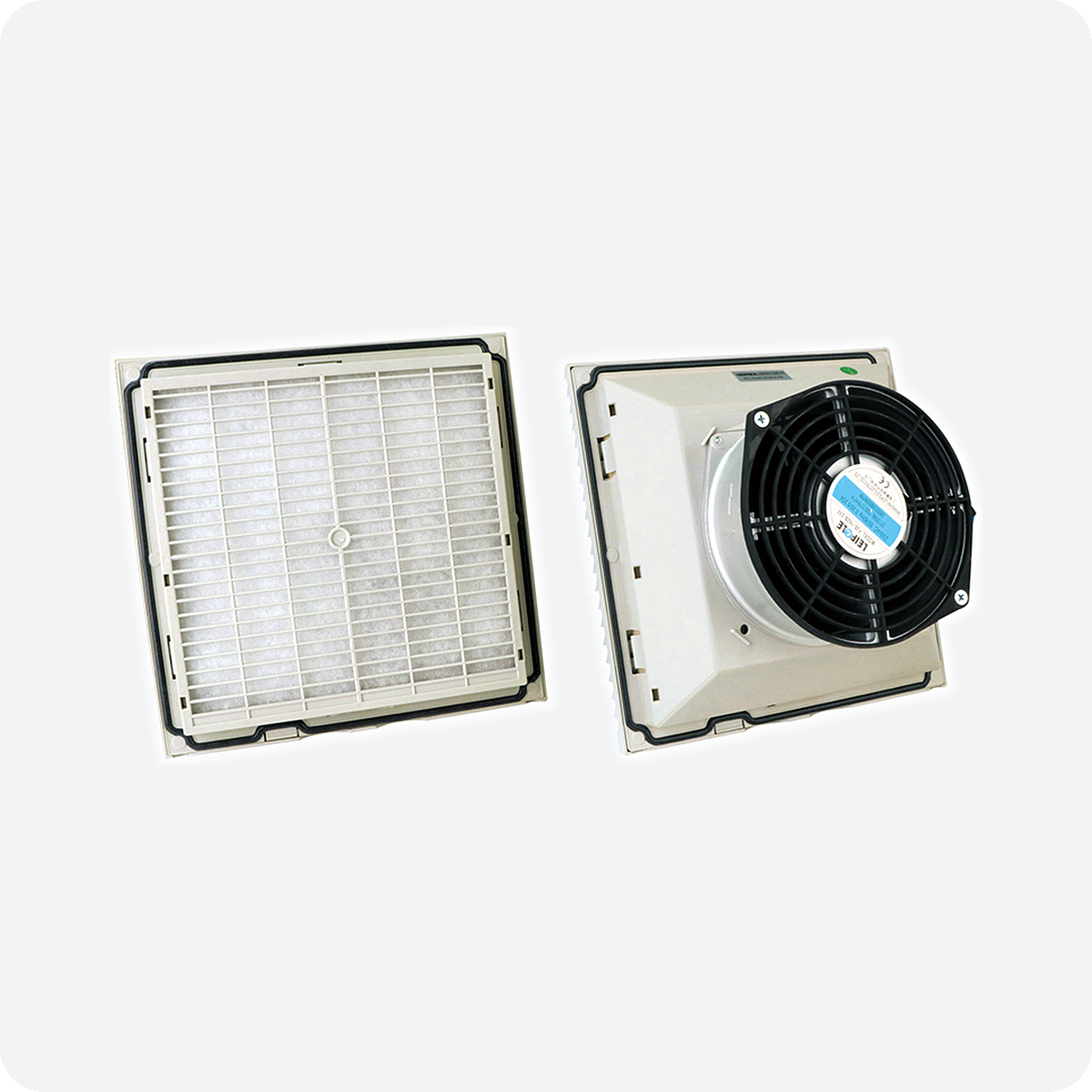

The LEIPOLE FKL6625 is a 255 × 255 mm cabinet filter fan unit that combines an axial fan, filter mat and louvred housing in one assembly. It is offered for 230V AC, 115V AC, 24V DC supply and in two housing colours, RAL7035 (light grey) and RAL7032 (pebble grey).

Model Overview

Model Order no. Voltage Colour Fitted fan
FKL6625.230 2013.013 230V AC RAL7035 162 mm, ball bearing (162B-230)
FKL6625.115 2013.014 115V AC RAL7035 162 mm, ball bearing (162B-115)
FKL6625.024 2013.015 24V DC RAL7035 162 mm, ball bearing (162B-24-B)
FKL6625.230 2013.034 230V AC RAL7032 162 mm, ball bearing (162B-230)
FKL6625.115 2013.035 115V AC RAL7032 162 mm, ball bearing (162B-115)
FKL6625.024 2013.036 24V DC RAL7032 162 mm, ball bearing (162B-24-B)

Technical Specifications

Series FKL6625
Product type Filter fan unit (fan + filter)
Housing size 255 × 255 mm
Supply voltage options 230V AC, 115V AC, 24V DC
Housing colours RAL7035 / RAL7032
Frame dimensions 255 × 255 mm
Cut-out dimensions 224 × 224 mm
Screw hole spacing 234 × 234 mm
Filter mat 12 mm G2 filter mat
Protection class IP54 (EN 60529)
Housing material ABS, UL94-V2
Matching exit filter FKL6625.300

Packaging

Version Order no. Box dimensions (L × W × H) Box gross weight Units per carton
230V AC / RAL7035 2013.013 27 × 26.5 × 13 cm 1.81 kg 14 pcs
115V AC / RAL7035 2013.014 27 × 26.5 × 13 cm 1.86 kg 14 pcs
24V DC / RAL7035 2013.015 27 × 26.5 × 13 cm 1.19 kg 14 pcs
230V AC / RAL7032 2013.034 27 × 26.5 × 13 cm 1.88 kg 14 pcs
115V AC / RAL7032 2013.035 27 × 26.5 × 13 cm 1.91 kg 14 pcs
24V DC / RAL7032 2013.036 27 × 26.5 × 13 cm 1.17 kg 14 pcs

The LEIPOLE FKL6625 is a 255 × 255 mm cabinet filter fan unit that combines an axial fan, filter mat and louvred housing in one assembly. It is offered for 230V AC, 115V AC, 24V DC supply and in two housing colours, RAL7035 (light grey) and RAL7032 (pebble grey).

Use it for ventilation and heat removal in control cabinets and electrical enclosures. Specifications: 255×255 mm, 230V AC / 115V AC / 24V DC.
