Product Title

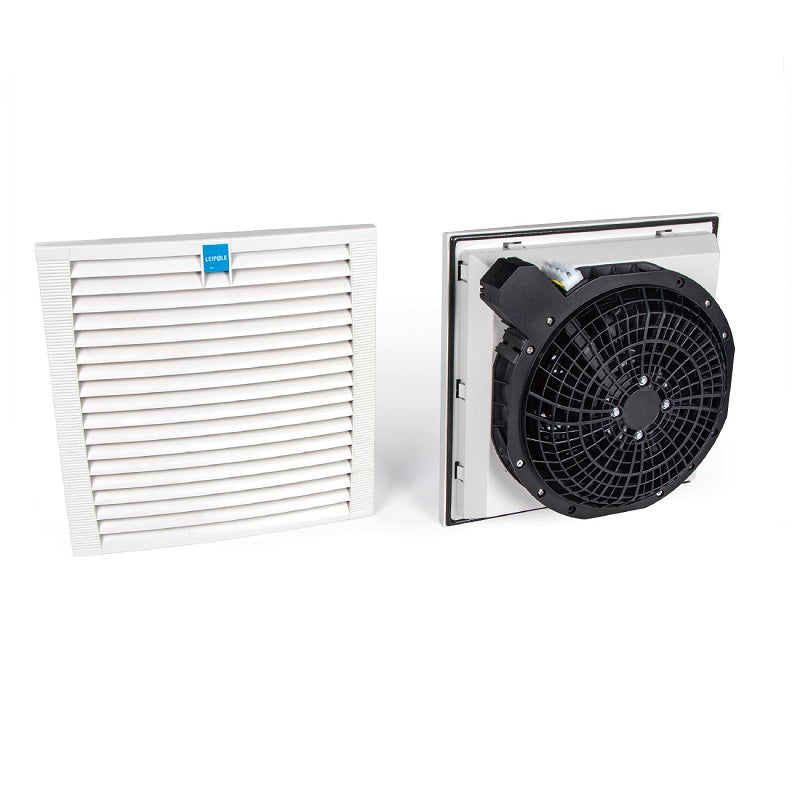

FKL9926.230-D High-Capacity 230V AC Fan & Filter | For Enclosure & Panel Fans

Product Description

Industrial-Grade Cooling for High-Demand Electrical Cabinets

When your heavy-duty equipment requires massive airflow and premium protection, the FKL9926.230-D Fan and Filter Assembly delivers. Driven by a powerful, capacitor-start asynchronous motor, this side-mounted unit is engineered for large-scale enclosure fans and panel fans that demand maximum ventilation.

Pushing an incredible combined airflow of up to 1000 m³/h (with filter), this 230V AC assembly ensures that even densely packed control cabinets stay cool under pressure. It comes fully equipped with premium G4 filter cotton, providing a reliable IP54 protection rating against dust and moisture, ensuring your sensitive electronics operate flawlessly in tough industrial environments.

Key Features & Benefits:

• Massive Airflow: Delivers up to 970 m³/h (50Hz) or 1000 m³/h (60Hz) of filtered air, perfect for high-heat applications.

• Heavy-Duty Motor: Features a robust capacitor-start asynchronous motor (Supporting Axial Fan: F2E-280107B-230) for dependable, long-term continuous operation.

• Premium Filtration & Protection: Built with heat-resistant (up to 80°C) G4 filter cotton, offering IP54-rated protection to keep your panel fans safe from harmful airborne contaminants.

• Certified Safety: Meets rigorous international standards with CE, CCC, and UL94-V2 flame-retardant certifications.

• Side-Mounted Design: Optimized for side-wall cabinet installation, finished in a clean RAL7035 light gray to match standard industrial enclosures.

Technical Specifications:

• Model Number: FKL9926.230-D (Order Number: 2028.018)

• Motor Type: Capacitor-start asynchronous motor

• Rated Operating Voltage: 230V AC (Operating Range: 115V - 235V)

• Rated Current: 0.43A ±10% (50Hz) / 0.60A ±10% (60Hz)

• Power: 95W ±10% (50Hz) / 135W ±10% (60Hz)

• Combined Airflow (With Filter): 970 m³/h ±5% (50Hz) / 1000 m³/h ±5% (60Hz)

• Noise Level: 63 dB

• Operating Temperature Range: -10°C to +55°C

• Storage Temperature Range: -15°C to +60°C

• Protection Class: IP54 (Equipped with G4 filter cotton)

• Product Color: RAL7035
