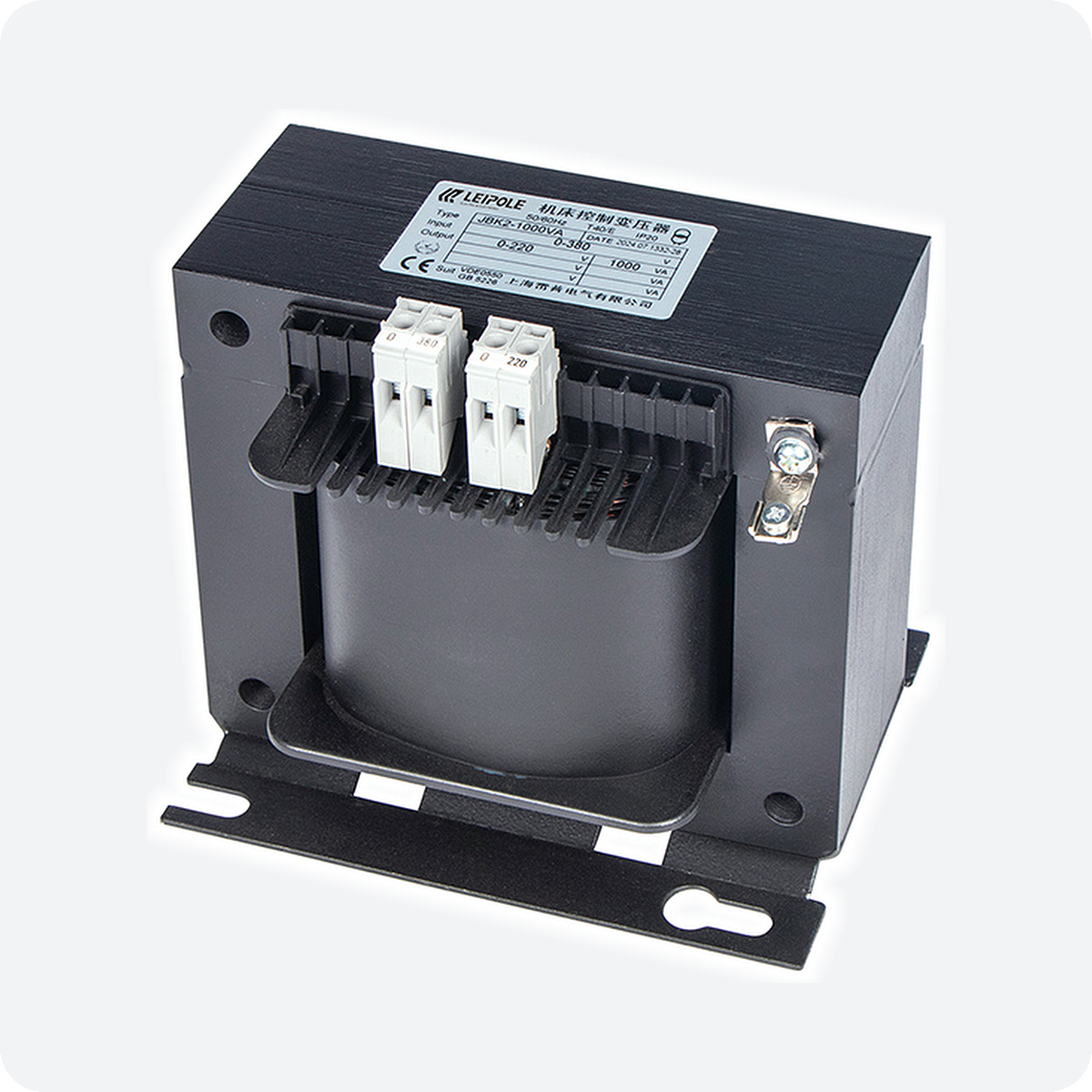

JBK2 Series Single-Phase Control Transformer, 63 VA – 20 kVA

The LEIPOLE JBK2 series is a cost-effective single-phase control transformer for basic control-circuit applications, providing dependable performance with minimal maintenance requirements. The range covers 22 ratings from 63 VA to 20 kVA for control panels, machinery and power-distribution equipment.

General Specifications

Rated capacity 63 VA – 20 kVA (see variants)
Protection IP20
Compliance RoHS

Models, Outline & Installation Dimensions (mm)

Model Rated capacity Order No. L W H Installation A Installation B KF F
JBK2-63VA 63 VA 4028.001 84 94 92 64 ±0.2 62 ±0.2 4.6 1.5
JBK2-100VA 100 VA 4028.002 96 105 105 84 ±0.2 87 ±0.2 5.8 1.5
JBK2-160VA 160 VA 4028.003 96 110 105 84 ±0.2 85 ±0.2 5.8 1.5
JBK2-250VA 250 VA 4028.004 120 100 122 90 ±0.2 85 ±0.2 5.8 1.5
JBK2-400VA 400 VA 4028.005 120 115 122 90 ±0.2 96 ±0.2 7 2
JBK2-500VA 500 VA 4028.006 150 110 145 122 ±0.2 90 ±0.2 7 2
JBK2-630VA 630 VA 4028.007 150 128 145 122 ±0.2 105 ±0.2 7 2
JBK2-800VA 800 VA 4028.008 168 125 155 138 ±0.2 105 ±0.2 9 2
JBK2-1KVA 1 kVA 4028.009 168 125 155 138 ±0.2 105 ±0.2 9 2
JBK2-1.6KVA 1.6 kVA 4028.010 168 138 155 138 ±0.3 116 ±0.5 10 3
JBK2-2KVA 2 kVA 4028.011 180 160 164 135 ±0.2 130 ±0.5 8 3
JBK2-2.5KVA 2.5 kVA 4028.012 192 170 180 168 ±0.2 140 ±0.5 10 3
JBK2-3KVA 3 kVA 4028.013 228 160 215 190 ±0.4 152 ±0.5 10 3
JBK2-4KVA 4 kVA 4028.014 228 192 215 190 ±0.4 162 ±0.5 10 3
JBK2-5KVA 5 kVA 4028.015 228 212 230 190 ±0.4 200 ±0.5 10 3
JBK2-6KVA 6 kVA 4028.016 228 212 230 190 ±0.4 200 ±0.5 10 3
JBK2-7KVA 7 kVA 4028.017 240 230 250 200 ±0.4 200 ±0.5 10 4
JBK2-8KVA 8 kVA 4028.018 240 240 250 200 ±0.4 205 ±0.5 10 4
JBK2-10KVA 10 kVA 4028.019 270 270 280 225 ±0.4 200 ±0.5 12 4
JBK2-12KVA 12 kVA 4028.020 300 280 320 250 ±0.4 190 ±0.5 12 4
JBK2-15KVA 15 kVA 4028.021 300 310 320 250 ±0.4 210 ±0.5 12 5
JBK2-20KVA 20 kVA 4028.022 300 330 320 250 ±0.4 230 ±0.5 12.5 5

The LEIPOLE JBK2 series is a cost-effective single-phase control transformer for basic control-circuit applications, covering 22 ratings from 63 VA to 20 kVA. It provides dependable performance with minimal maintenance requirements in an IP20, RoHS-compliant design.

Typical uses include control panels, machinery and power-distribution equipment where a simple, economical control-circuit supply is needed. Choose the rating that matches your control load from the model table, which lists outline and installation dimensions for every size.
