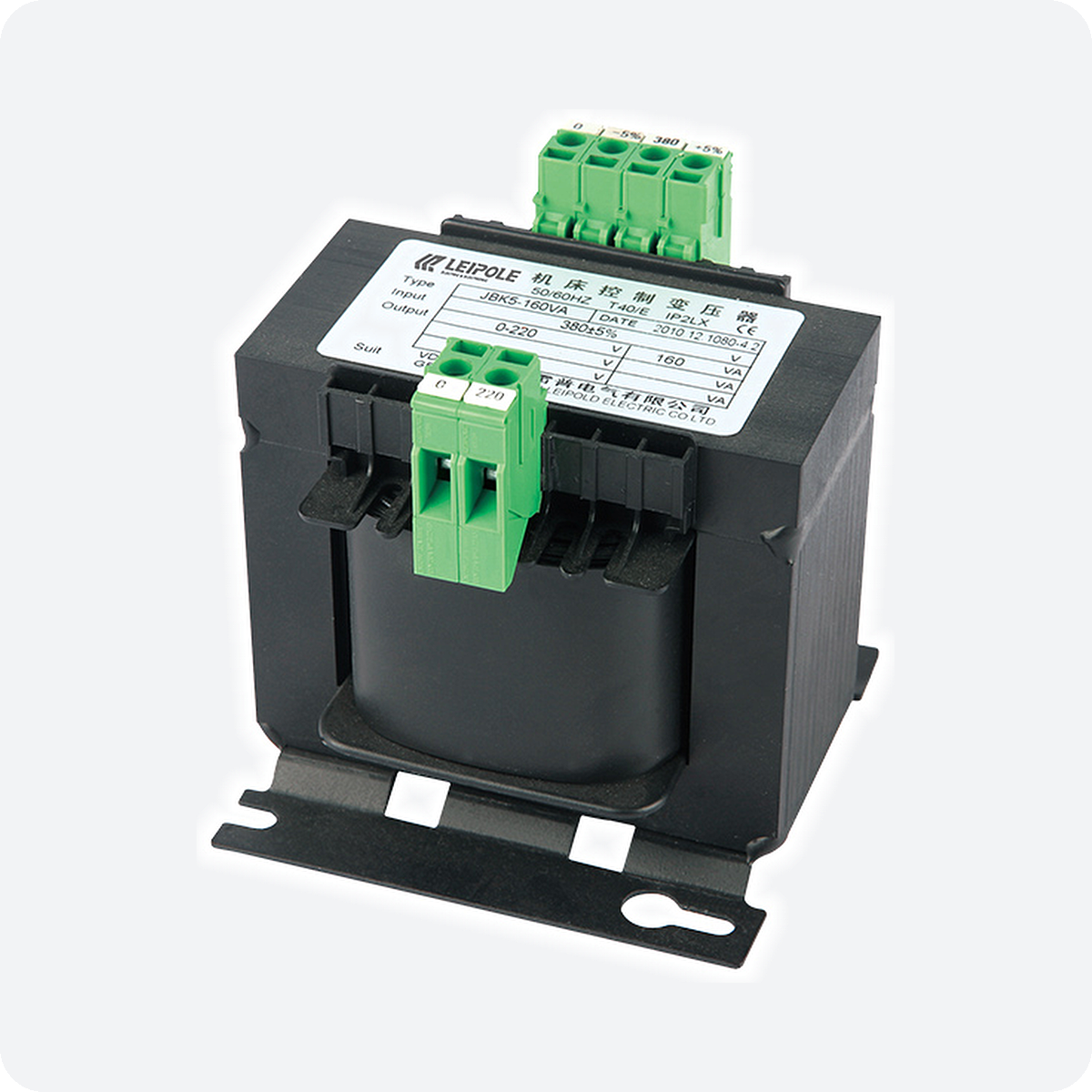

JBK5 Series Single-Phase Control Transformer, 40 VA – 5000 VA

The LEIPOLE JBK5 series is a single-phase control transformer for demanding industrial environments, with improved safety features and voltage stability. It provides isolated control, signal and lighting voltages for machine-tool, automation and power-distribution control circuits from a 380 V or 220 V AC supply. Winding capacity distribution can be configured to customer requirements.

Electrical Specifications

Rated capacity 40 VA – 5000 VA (see variants)
Rated input voltage AC 380 V ±5% or AC 220 V ±5%
Rated output voltage AC 220 (127), 110, 48, 35, 24, 12, 6 V – control winding and signal/lighting winding
Load output voltage 95% – 105% of rated
Winding configuration Capacity distribution between windings configurable to customer demand
Protection IP20
Compliance RoHS

Model Overview

Model Rated capacity Order No.
JBK5-40 40 VA 4011.001
JBK5-63 63 VA 4011.002
JBK5-100 100 VA 4011.003
JBK5-160 160 VA 4011.004
JBK5-250 250 VA 4011.005
JBK5-400 400 VA 4011.006
JBK5-500 500 VA 4011.025
JBK5-630 630 VA 4011.007
JBK5-800 800 VA 4011.008
JBK5-1000 1000 VA 4011.009
JBK5-1600 1600 VA 4011.010
JBK5-2500 2500 VA 4011.011
JBK5-4000 4000 VA 4011.013
JBK5-5000 5000 VA 4011.014

Dimensions & Mounting (mm)

Model Mounting B max D max E max Hole distance A Hole distance C K F max
JBK5-40 — 78 72 90 56 ±0.15 46 ±0.125 4.6 1.5
JBK5-63 — 78 72 90 56 ±0.15 46 ±0.125 4.6 1.5
JBK5-100 — 84 75 96 64 ±0.15 62 ±0.15 4.6 1.5
JBK5-160 — 96 92 105 84 ±0.175 73.5 ±0.15 5.5 1.5
JBK5-250 — 96 100 104 84 ±0.175 85 ±0.175 5.8 1.5
JBK5-400 — 120 100 122 90 ±0.175 85 ±0.175 5.8 2
JBK5-500 — 120 110 122 90 ±0.175 96 ±0.175 5.8 2
JBK5-630 — 150 110 140 122 ±0.2 90 ±0.175 7 2
JBK5-800 — 150 128 142 122 ±0.2 105 ±0.2 7 2
JBK5-1000 Horizontal 150 190 142 130 ±0.2 152 ±0.2 7 3
JBK5-1000 Vertical 168 125 155 138 ±0.2 105 ±0.2 9 2
JBK5-1600 Horizontal 170 225 153 144 ±0.2 176 ±0.2 7 3
JBK5-1600 Vertical 168 138 155 138 ±0.2 116 ±0.2 7 2
JBK5-2500 Horizontal 194 250 170 170 ±0.2 200 ±0.23 7 4
JBK5-2500 Vertical 228 200 230 190 ±1.0 126 ±1.0 10 4
JBK5-4000 Horizontal 194 250 200 170 ±0.2 200 ±0.23 7 4
JBK5-4000 Vertical 228 240 230 190 ±1.0 146 ±1.0 10 4
JBK5-5000 Horizontal 220 286 215 208 ±0.5 235 ±0.5 9 4
JBK5-5000 Vertical 240 225 240 200 ±1.0 152 ±1.0 10 4

JBK5-40 to JBK5-800: single mounting version. JBK5-1000 and above: horizontal and vertical mounting versions.

Packaging

Model Order No. Pack Package L × W × H (cm) Gross weight (kg) Net weight (kg)
JBK5-40 4011.001 1 unit — — 1.04
JBK5-63 4011.002 1 unit — — 1.16
JBK5-100 4011.003 1 unit — — 1.20
JBK5-160 4011.004 1 unit — — 2.72
JBK5-250 4011.005 1 unit — 5 3.42
JBK5-400 4011.006 1 unit — 6 5.16
JBK5-500 4011.025 1 unit 30 × 23 × 21 10 6.26
JBK5-630 4011.007 1 unit — 10 7.60
JBK5-800 4011.008 1 unit — 13 9.48
JBK5-1000 4011.009 1 unit 21 × 17 × 17 16 11.6
JBK5-1600 4011.010 1 unit 31 × 19 × 17 19 —
JBK5-2500 4011.011 1 unit 30 × 22 × 22 31 25.14
JBK5-4000 4011.013 1 unit 30 × 22 × 22 43 36.14
JBK5-5000 4011.014 1 unit 35 × 26 × 22 46 38.7

Ordering Notes

Please state the required primary voltage (220 V or 380 V) and secondary voltage(s) with your order.

JBK5 single-phase control transformers supply isolated 24 V, 110 V and 230 V control voltages in machine tool control circuits, CNC and packaging machinery, conveyor systems and industrial automation panels. Stepping down a 380 V or 220 V AC mains supply to safe control and signal levels, they power contactor coils, relays, PLC I/O, pilot lights and solenoid valves with stable output across 40 VA to 5000 VA.

In switchgear, MCC panels and power distribution boards, the JBK5 separates control and lighting circuits from the main supply, with configurable control and signal/lighting windings. Larger 1000 VA to 5000 VA ratings in horizontal or vertical mounting suit HVAC plant control, pump and fan stations, water treatment and building automation enclosures where a dependable control power transformer is required.
