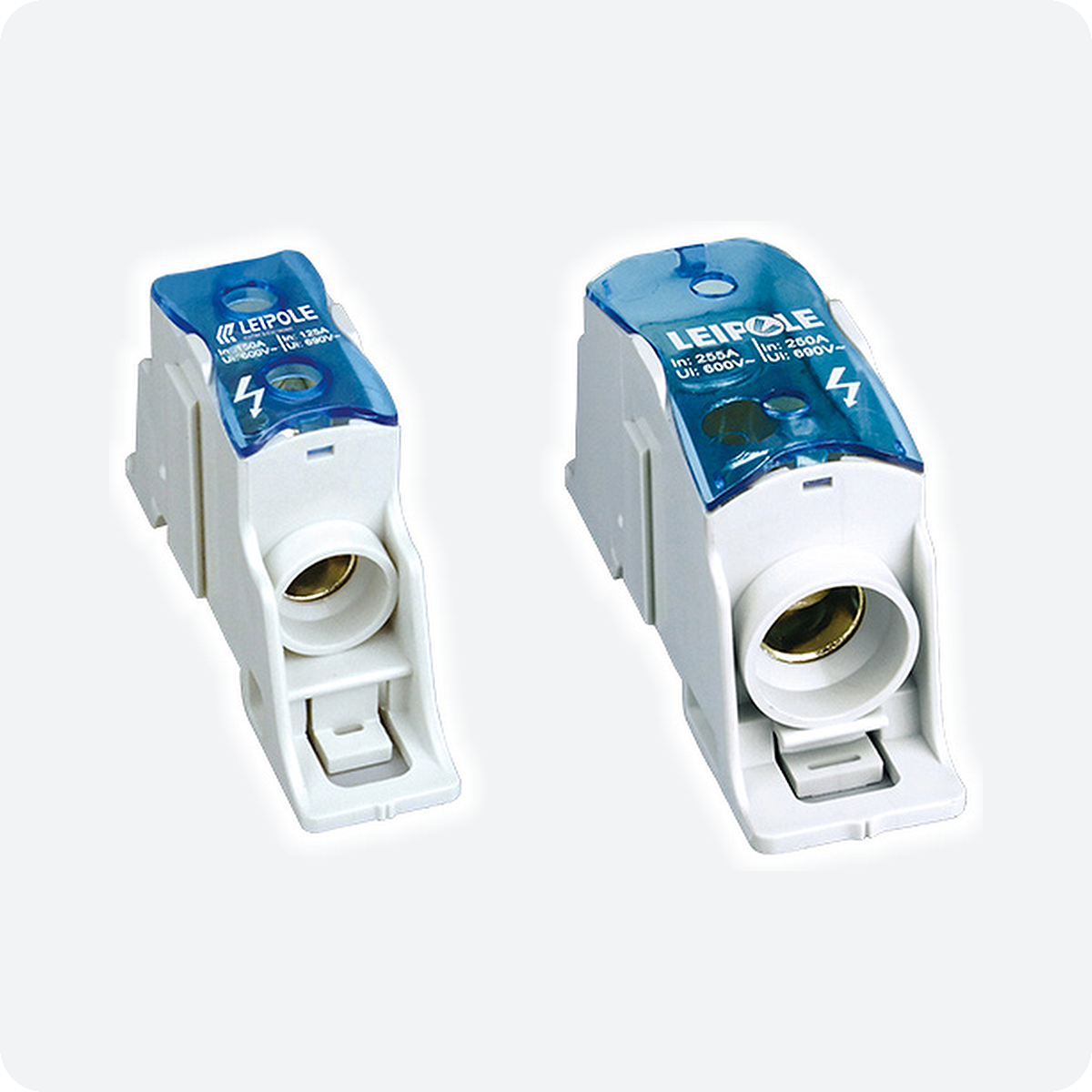

• JUKH250 Single-Pole Power Distribution Block 250A | 1000V IEC, 35–120 mm² In/Out | IP20 Modular High-Current Connection Block
JUKH250
JUKH250

JUKH250 Single-Pole Power Distribution Block 250A | 1000V IEC, 35–120 mm² In/Out | IP20 Modular High-Current Connection Block

$19.85 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Select The Options Above

JUKH250 Power Distribution Block – 250 A / 1000 V

The LEIPOLE JUKH250 is a single-pole, high-current connection block with one input and one output terminal for 35–120 mm² conductors. Rated 250 A to IEC (255 A UL/CSA) with 1000 V AC/DC IEC insulation voltage and IP20 protection. Individual modules are stackable for multi-pole applications.

Technical Specifications

Model JUKH250
Order number 5012.127
Poles 1 (modules stackable for multi-pole use)
Rated current 250 A (IEC); 255 A (UL/CSA)
Rated voltage Ui 1000 V AC/DC (IEC); 600 V (UL)
Short-time withstand current (Icw, 1 s) 14.4 kA rms
Peak withstand current (Ipk) 42 kA
Connections 1 × input, 1 × output
Conductor cross-section 35–120 mm² (6 AWG–250 kcmil)
Tightening torque 19 N·m (168 lb-in)
Mounting hole spacing 82.9 × 7.4 mm
IP rating IP20

Packaging

Sales unit 1 pc
Inner box quantity 1 pc
Inner box dimensions 10 × 3.5 × 5.2 cm
Inner box gross weight 0.30 kg
Carton quantity 104 pcs
Carton dimensions 51 × 35 × 33 cm
Carton gross weight 28.60 kg

The LEIPOLE JUKH250 is a single-pole, high-current connection block with one input and one output terminal for 35–120 mm² conductors. Rated 250 A to IEC (255 A UL/CSA) with 1000 V AC/DC IEC insulation voltage and IP20 protection.

Specifications: 1000V IEC, 35–120 mm² In/Out.
