• JUKKB-3 Double-Level Screw Terminal Block | 2.5 mm², 32A 500V, Grey/Blue, 5.2 mm Wide | Two-Tier DIN-Rail Terminal | Pack of 50
JUKKB-3
JUKKB-3

JUKKB-3 Double-Level Screw Terminal Block | 2.5 mm², 32A 500V, Grey/Blue, 5.2 mm Wide | Two-Tier DIN-Rail Terminal | Pack of 50

$57.70 USD
$1.15 pc

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Order Unit: 50 pcs
Color: Blue
Select The Options Above

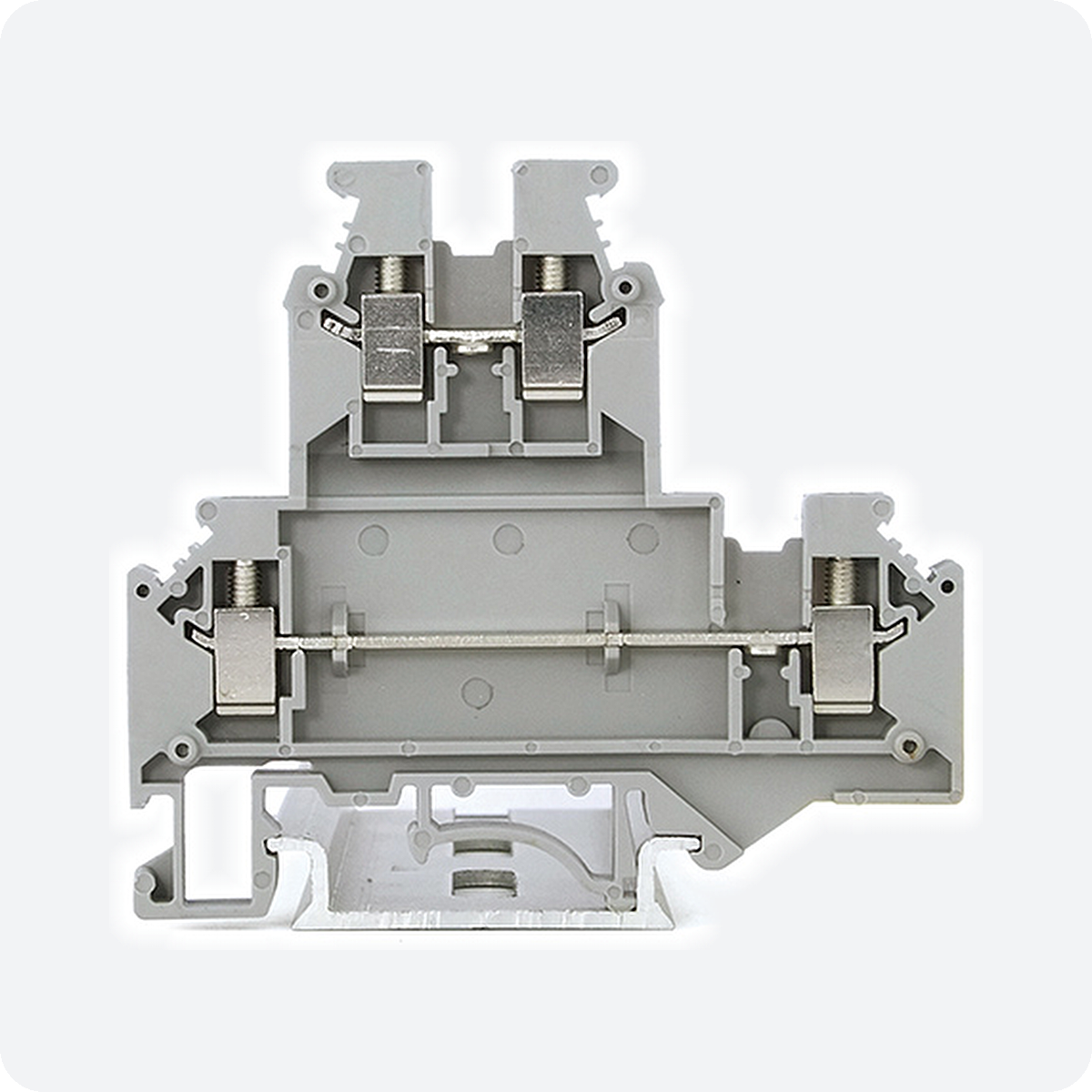

The JUKKB-3 is a double-level screw terminal block for conductors from 0.2 to 4 mm², rated 32 A / 500 V. Two levels in a 5.2 mm wide housing double the wiring density on the rail. Available in grey and blue; the blue version is typically used for neutral conductors.

Listed price is for a pack of 50 pcs.

Technical Specifications

Model JUKKB-3
Order number 1010.044 (grey), 1010.050 (blue)
Colour Grey, Blue
Connection type Screw connection
Nominal cross section 2.5 mm²
Wire cross section 0.2–4 mm²
Rated current / voltage 32 A / 500 V
Dimensions (T × H × W) 5.2 × 62.5 × 67 mm
Connection standard IEC 60947-7-1
Flammability class UL 94 V0
Marker strip ZB5
End cover D-JUKKB 3/5
Space compensation plates DG-JUKKB 3/5, DP-JUKKB 3/5
Fixed bridge FBI 10-5
Insertion bridge EB 2-5 / EB 3-5 / EB 10-5

Packaging

Units per box 50 pcs
Box dimensions (L × W × H) 34 × 6.5 × 6 cm
Box gross weight 0.70 kg (grey); 0.79 kg (blue)
Units per carton 1,200 pcs
Carton dimensions (L × W × H) 51 × 35 × 33 cm
Carton gross weight 17.65 kg (blue)

The LEIPOLE JUKKB-3 is a double-level screw terminal block for 2.5 mm² conductors, rated 32 A / 500 V, available in grey and blue and 5.2 mm wide.

A DIN-rail terminal for wiring control cabinets, machine panels and distribution boards. Specifications: 2.5 mm², 32A 500V, Grey/Blue, 5.2 mm Wide, Two-Tier DIN-Rail Terminal.
