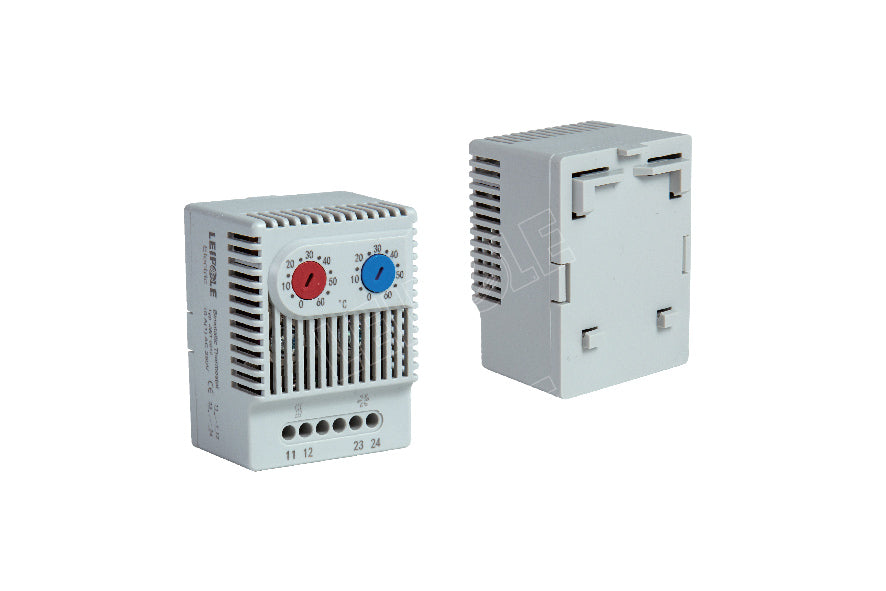

JWT6012 Dual Enclosure Thermostat (NO + NC)

The LEIPOLE JWT6012 is an automatic temperature controller for 35mm DIN-rail installation inside industrial enclosures. Built with an ABS housing and bimetallic sensing elements, it integrates two separate temperature setpoints in one unit, so heating and cooling equipment can be controlled independently from a single device. Wiring is via screw terminals. For the same function with tool-free spring terminals, see the upgraded JSK0012. Supplied in packs of 10.

Technical Specifications

Model JWT6012
Order No. 2021.004
Sensing Element Bimetallic
Temperature Adjustment Range 0°C to +60°C
Switching Difference approx. 7K ± 4K
Rated Voltage 230 / 115 / 60 / 48 / 24V AC; 60 / 48 / 24V DC
Maximum Switching Capacity 250V AC 10(2) A; 120V AC 15(2) A; DC 30W
Electrical Connection 4-position screw terminal, 0.5–2.5 mm² wire
Installation 35mm DIN rail
Housing Material ABS
Protection Rating IP20
Operating / Storage Temperature -5°C to +80°C
Dimensions (W × H × D) 50 × 67 × 46 mm
Certifications CE, RoHS

Packaging

Pack Quantity 10 pcs
Pack Dimensions (L × W × H) 24.6 × 10.7 × 7.6 cm
Pack Gross Weight 1.18 kg
Master Carton Quantity 190 pcs
Master Carton Dimensions (L × W × H) 51 × 35 × 33 cm
Master Carton Gross Weight 22.46 kg

The LEIPOLE JWT6012 dual enclosure thermostat combines an NO and an NC contact with two independent setpoints in a single DIN-rail module. One channel switches an enclosure heater on at low temperature to prevent condensation and frost; the other switches a filter fan, heat exchanger or alarm signal when the cabinet overheats, saving DIN-rail space in compact control panels.

Typical installations include switchgear, PLC and drive cabinets, telecom shelters, outdoor battery and EV charger enclosures, and machine control panels exposed to day/night temperature swings. Combine the JWT6012 with LEIPOLE JRQ PTC heaters and LEIPOLE filter fans for a complete, thermostatically controlled enclosure climate solution.
