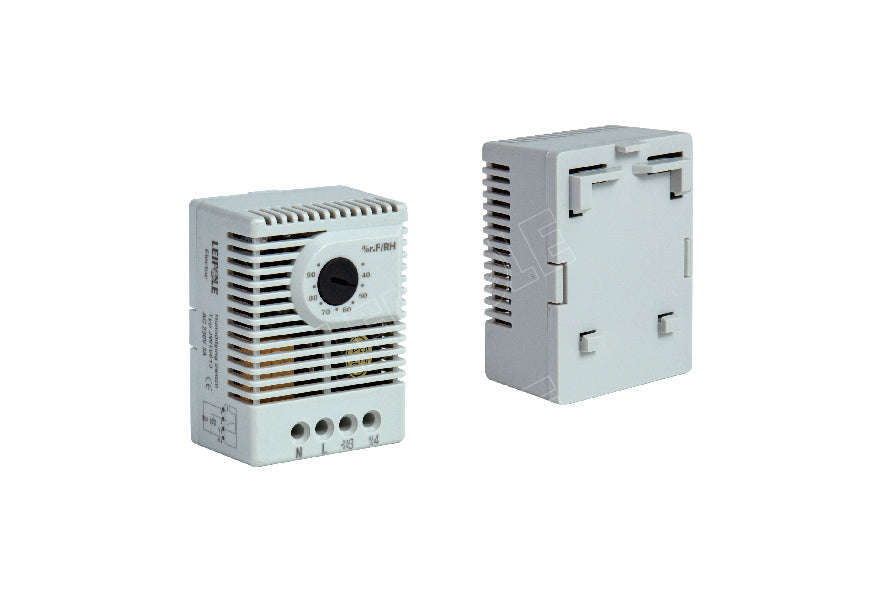

JWT6013 Electronic Humidity Controller | Hygrostat pack of 10

The Leipole JWT6013 is an electronic humidity controller designed for 35mm DIN rail installation within electrical enclosures. Equipped with an electronic sensing element, this hygrostat monitors and regulates relative humidity levels to protect internal electronic components from moisture damage, corrosion, and insulation degradation.

The controller manages enclosure climate conditions through two distinct outputs based on the configured humidity set point:

• Below Set Point: Output terminal 3 remains closed (typically connected to a fan or alternative supervisory circuit).

• Above Set Point: Output terminal 4 closes, completing the circuit to activate an enclosure heater. Raising the internal ambient temperature increases the moisture-holding capacity of the air, lowering the relative humidity to eliminate condensation risk and maintain stable operating conditions.

  Technical Parameters

  Parameter	Specification
  Model Number	JWT6013
  Order Number	2021.005
  Brand	LEIPOLE
  Sensing Element	Electronic
  Humidity Adjustment Range	40% to 90% RH
  Switching Tolerance	±3% to ±4% RH
  Rated Working Voltage	230 / 115 / 60 / 48 / 24 V (AC) 60 / 48 / 24 V (DC)
  Maximum Output Current	3A (600W)
  Maximum Switching Capacity	3A @ 230V AC
  Allowable Air Velocity	15 m/s
  Electrical Connection	4-position pressure wire terminal for 0.5 ~ 2.5 mm² standard wire
  Installation Requirement	35mm DIN rail mounting
  Protection Level	IP20
  Housing Material	ABS
  Operating / Storage Temperature	0°C to +80°C
  Dimensions (H x W x D)	67 mm × 50 mm × 38 mm
  Safety Certifications	CE, RoHS
