• JXB-16/35 Screw Terminal Block | 16 mm², 76A 750V, 12 mm Wide | Grey / Blue Feed-Through DIN-Rail Terminal | Pack of 50
JXB-16/35
JXB-16/35

JXB-16/35 Screw Terminal Block | 16 mm², 76A 750V, 12 mm Wide | Grey / Blue Feed-Through DIN-Rail Terminal | Pack of 50

$60.93 USD
$1.22 pc

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Colour: Grey (Pack of 50)
Select The Options Above

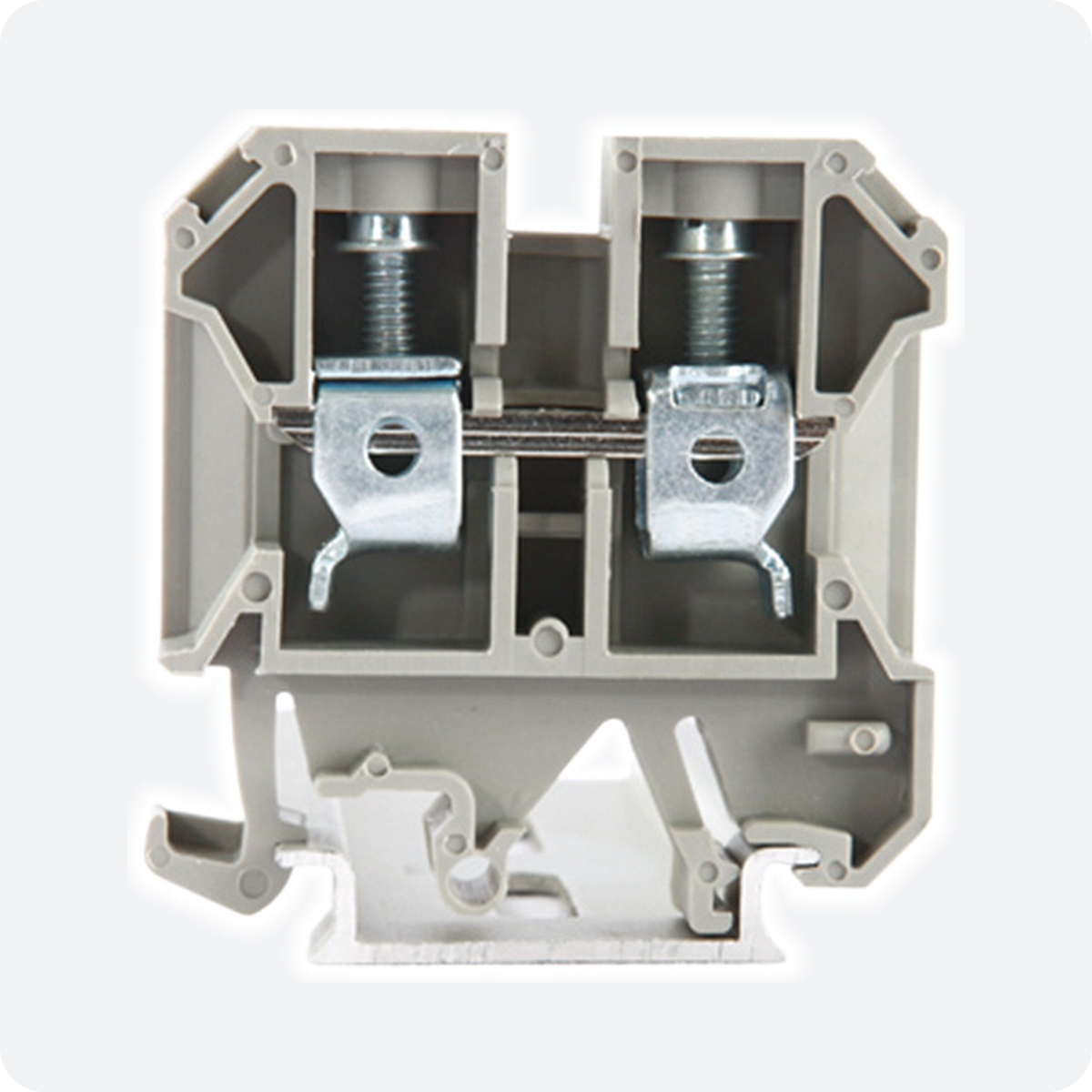

The JXB-16/35 is a feed-through screw terminal block for 16 mm² conductors, rated 76 A / 750 V, for NS 35 and NS 32 DIN rails. It is available in grey and in blue (typically used for neutral conductors).

Technical Specifications

Model JXB-16/35 (grey), JXB-16/35-BU (blue)
Order number 1011.072 (grey), 1011.079 (blue)
Connection type Screw connection
Nominal cross section 16 mm²
Wire cross section 0.5–16 mm²
Rated current / voltage 76 A / 750 V
Dimensions (T × H × W) 12 × 53.5 × 51 mm
DIN rail NS 35/7.5, NS 35/15, NS 32
Connection standard IEC 60947-7-1
Flammability class UL 94 V0
End cover JXB-16/35G (1.5 mm thick)
End clamp GD 35
Marker DEK 6
Centre jumper bar JXB-16L, 2–10 poles

Packaging

Model Order no. Units per box Box gross weight
JXB-16/35 1011.072 50 pcs 1.5 kg
JXB-16/35-BU 1011.079 50 pcs 1.45 kg

The JXB-16/35 is a feed-through screw terminal block for 16 mm² conductors, rated 76 A / 750 V, for NS 35 and NS 32 DIN rails. It is available in grey and in blue (typically used for neutral conductors).

A DIN-rail terminal for wiring control cabinets, machine panels and distribution boards. Specifications: 16 mm², 76A 750V, 12 mm Wide, Grey / Blue Feed-Through DIN-Rail Terminal.
