• JXB-2.5/35 Screw Terminal Block | 2.5 mm², 26A 750V, 6 mm Wide | Grey / Blue Feed-Through DIN-Rail Terminal | Pack of 50
JXB-2.5/35
JXB-2.5/35

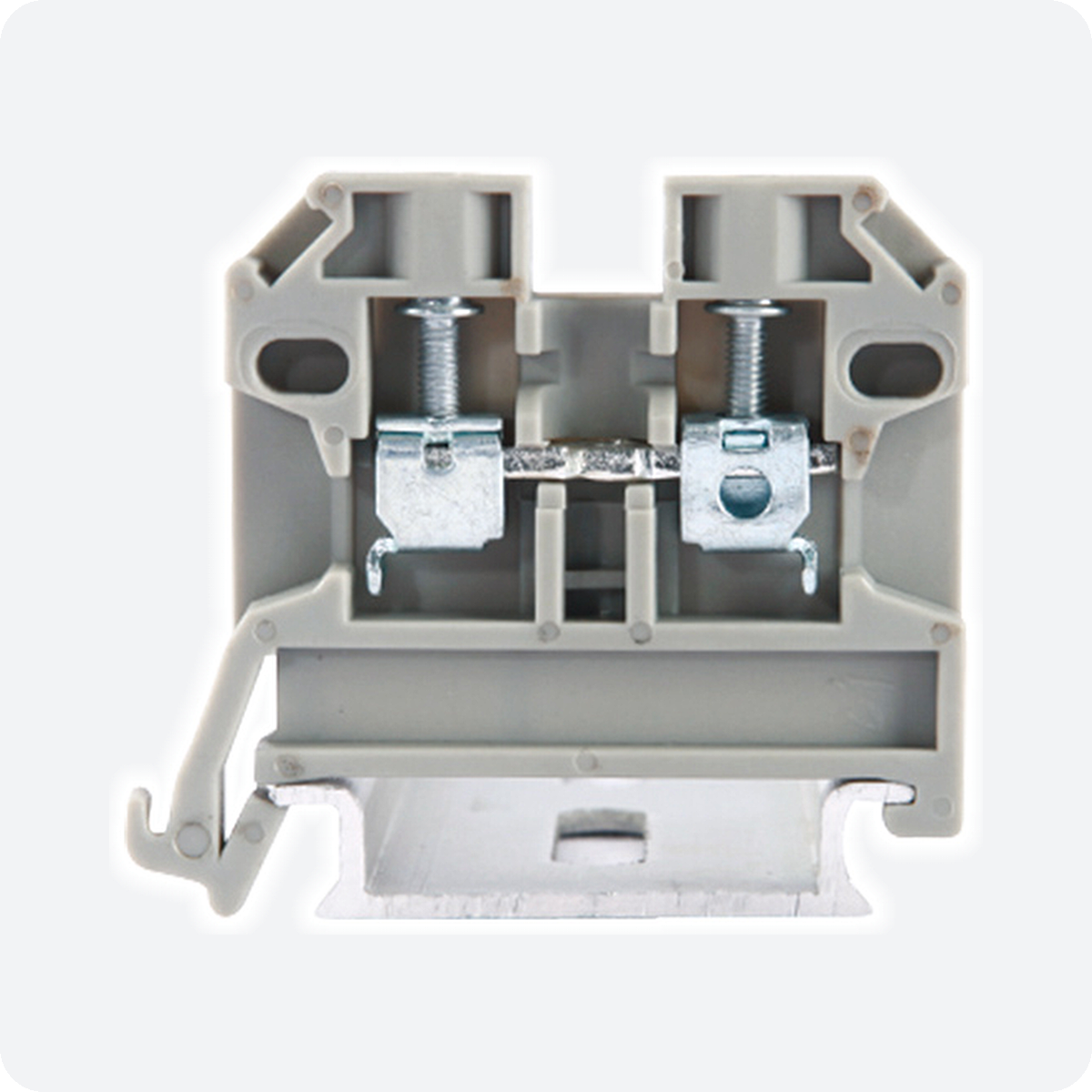

JXB-2.5/35 Screw Terminal Block | 2.5 mm², 26A 750V, 6 mm Wide | Grey / Blue Feed-Through DIN-Rail Terminal | Pack of 50

$17.08 USD
$0.34 pc

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Colour: Grey (Pack of 50)
Select The Options Above

The JXB-2.5/35 is a feed-through screw terminal block for 2.5 mm² conductors, rated 26 A / 750 V, for NS 35 and NS 32 DIN rails. It is available in grey and in blue (typically used for neutral conductors).

Technical Specifications

Model JXB-2.5/35 (grey), JXB-2.5/35-BU (blue)
Order number 1011.068 (grey), 1011.075 (blue)
Connection type Screw connection
Nominal cross section 2.5 mm²
Wire cross section 0.2–2.5 mm²
Rated current / voltage 26 A / 750 V
Dimensions (T × H × W) 6 × 40.5 × 45 mm
DIN rail NS 35/7.5, NS 35/15, NS 32
Connection standard IEC 60947-7-1
Flammability class UL 94 V0
End cover JXB-2.5/35G (1.5 mm thick)
End clamp GD 35
Marker DEK 5/6
Centre jumper bar JXB-2.5L, 2–10 poles

Packaging

Model Order no. Units per box Box gross weight
JXB-2.5/35 1011.068 50 pcs 0.5 kg
JXB-2.5/35-BU 1011.075 50 pcs 0.55 kg

The JXB-2.5/35 is a feed-through screw terminal block for 2.5 mm² conductors, rated 26 A / 750 V, for NS 35 and NS 32 DIN rails. It is available in grey and in blue (typically used for neutral conductors).

A DIN-rail terminal for wiring control cabinets, machine panels and distribution boards. Specifications: 2.5 mm², 26A 750V, 6 mm Wide, Grey / Blue Feed-Through DIN-Rail Terminal.
