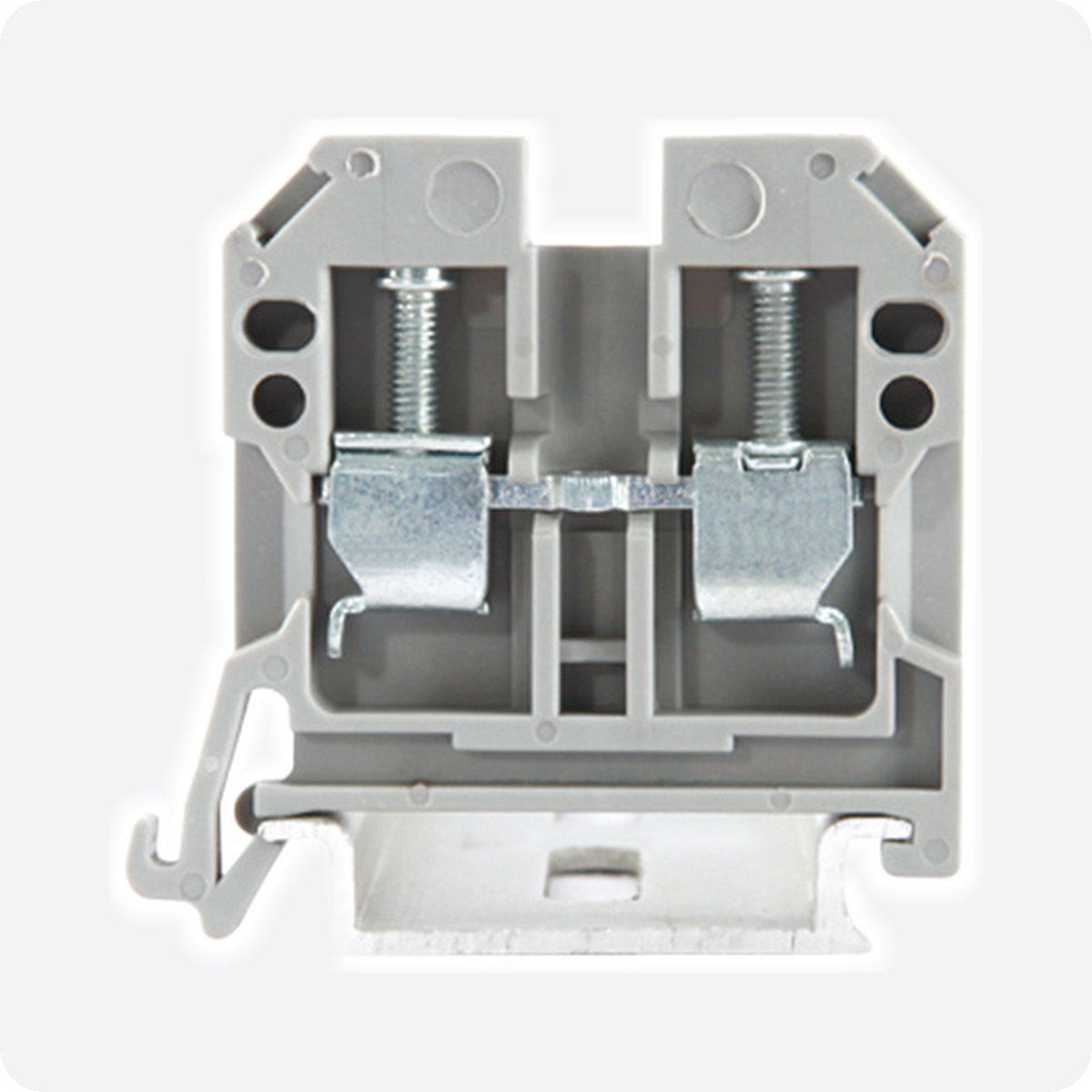

• JXB-4/35 Screw Terminal Block | 4 mm², 34A 750V, 6.5 mm Wide | Grey / Blue Feed-Through DIN-Rail Terminal | Pack of 50
JXB-4/35
JXB-4/35

JXB-4/35 Screw Terminal Block | 4 mm², 34A 750V, 6.5 mm Wide | Grey / Blue Feed-Through DIN-Rail Terminal | Pack of 50

$19.39 USD
$0.39 pc

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Colour: Grey (Pack of 50)
Select The Options Above

The JXB-4/35 is a feed-through screw terminal block for 4 mm² conductors, rated 34 A / 750 V, for NS 35 and NS 32 DIN rails. It is available in grey and in blue (typically used for neutral conductors).

Technical Specifications

Model JXB-4/35 (grey), JXB-4/35-BU (blue)
Order number 1011.069 (grey), 1011.076 (blue)
Connection type Screw connection
Nominal cross section 4 mm²
Wire cross section 0.2–4 mm²
Rated current / voltage 34 A / 750 V
Dimensions (T × H × W) 6.5 × 45 × 45 mm
DIN rail NS 35/7.5, NS 35/15, NS 32
Connection standard IEC 60947-7-1
Flammability class UL 94 V0
End cover JXB-4/10G (1.5 mm thick)
End clamp GD 35
Marker DEK 6
Centre jumper bar JXB-4L, 2–10 poles

Packaging

Model Order no. Units per box Box gross weight
JXB-4/35 1011.069 50 pcs 0.57 kg
JXB4/35-BU 1011.076 50 pcs 0.56 kg

The JXB-4/35 is a feed-through screw terminal block for 4 mm² conductors, rated 34 A / 750 V, for NS 35 and NS 32 DIN rails. It is available in grey and in blue (typically used for neutral conductors).

A DIN-rail terminal for wiring control cabinets, machine panels and distribution boards. Specifications: 4 mm², 34A 750V, 6.5 mm Wide, Grey / Blue Feed-Through DIN-Rail Terminal.
