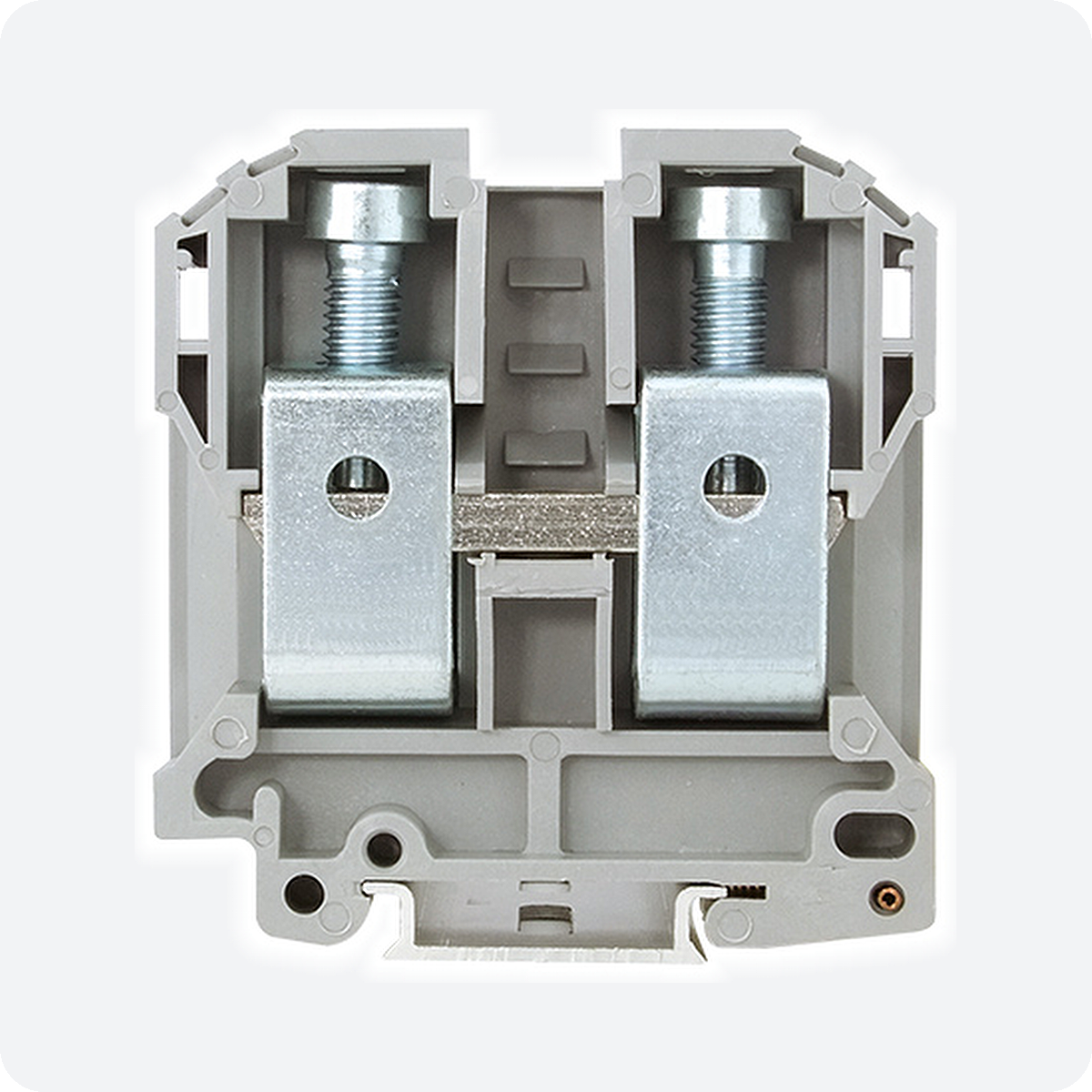

The JXB-70/35 is a high-current feed-through screw terminal block for conductors from 2.5 to 70 mm², rated 207 A / 800 V, for NS 35 and NS 32 DIN rails.

Technical Specifications

Model JXB-70/35
Order number 1011.074
Colour Grey
Connection type Screw connection
Nominal cross section 70 mm²
Wire cross section 2.5–70 mm²
Rated current / voltage 207 A / 800 V
Dimensions (T × H × W) 22 × 79 × 75 mm
DIN rail NS 35/7.5, NS 35/15, NS 32
Connection standard IEC 60947-7-1
Flammability class UL 94 V0
End cover JXB-70/35G (1.5 mm thick)
End clamp GD 35
Marker DEK 6
Centre jumper bar JSAK 70, 2–10 poles

Packaging

Units per box 9 pcs
Box dimensions (L × W × H) 20.5 × 7.5 × 7.8 cm
Box gross weight 1.53 kg
Units per carton 252 pcs
Carton dimensions (L × W × H) 51 × 35 × 33 cm
Carton gross weight 41.4 kg

The JXB-70/35 is a high-current feed-through screw terminal block for conductors from 2.5 to 70 mm², rated 207 A / 800 V, for NS 35 and NS 32 DIN rails.

A DIN-rail terminal for wiring control cabinets, machine panels and distribution boards. Specifications: 70 mm², 207A 800V, 22 mm Wide, Feed-Through DIN-Rail Power Terminal.
