• JXB-RD Fuse Terminal Block | 0.2–4 mm², 6.3A 750V, 8 mm Wide | DIN-Rail Fuse Terminal | Pack of 50
JXB-RD
JXB-RD

JXB-RD Fuse Terminal Block | 0.2–4 mm², 6.3A 750V, 8 mm Wide | DIN-Rail Fuse Terminal | Pack of 50

$55.39 USD
$1.11 pc

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Order Unit: 50 pcs
Select The Options Above

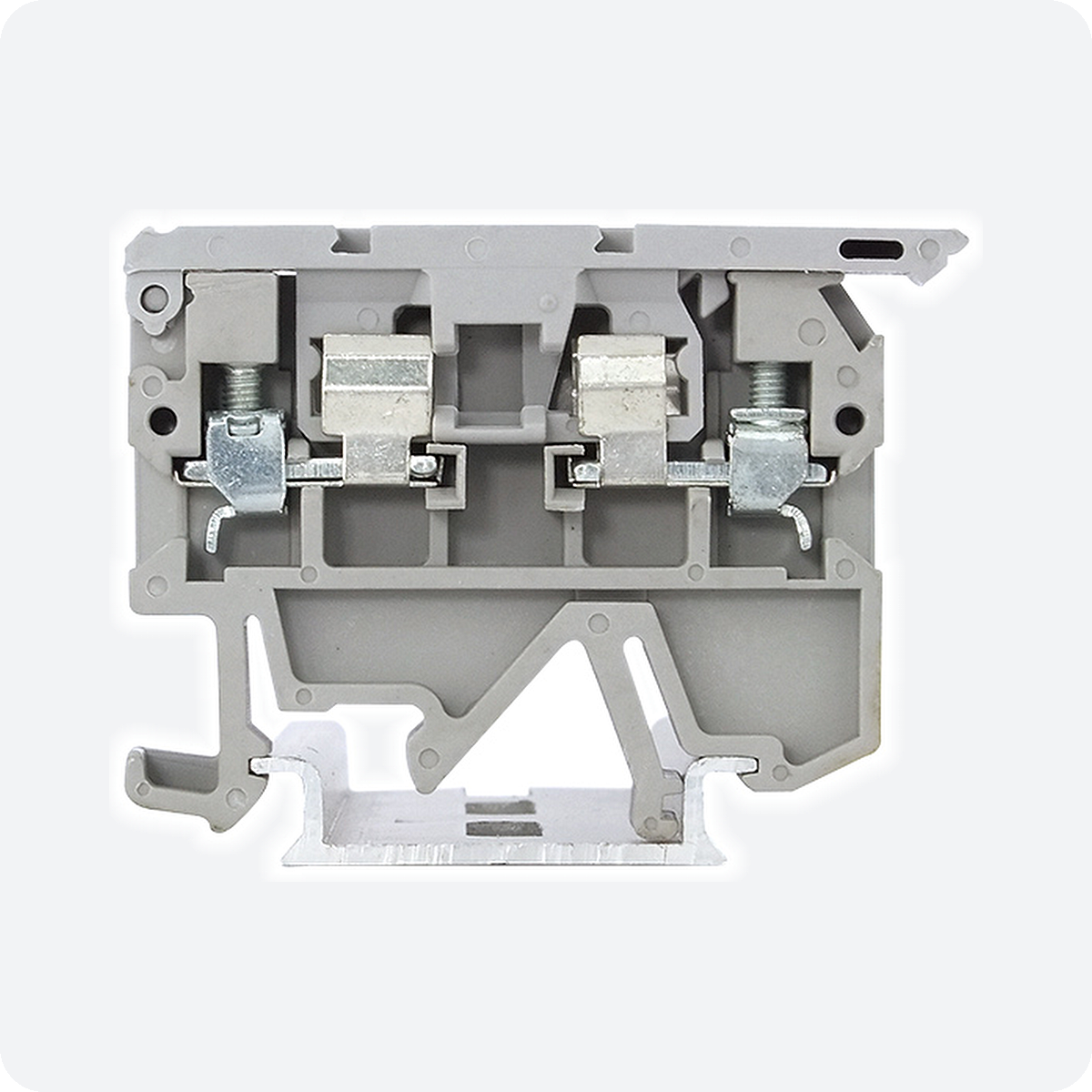

The JXB-RD is a fuse terminal block of the JXB series for conductors from 0.2 to 4 mm², rated 6.3 A / 750 V, for NS 35 and NS 32 DIN rails. It protects individual control and signal circuits directly at the terminal strip.

Technical Specifications

Model JXB-RD
Order number 1011.081
Product type Fuse terminal block
Connection type Screw connection
Wire cross section 0.2–4 mm²
Rated current / voltage 6.3 A / 750 V
Dimensions (T × H × W) 8 × 45.5 × 58 mm
DIN rail NS 35/7.5, NS 35/15, NS 32
Connection standard IEC 60947-7-1
Flammability class UL 94 V0
End cover RDG
End clamp GD 35
Marker DEK 6
Centre jumper bar JXB-6L, 2–10 poles

Packaging

Units per box 50 pcs
Box dimensions (L × W × H) 29 × 8.5 × 4.5 cm
Box gross weight 0.77 kg
Units per carton 1,500 pcs
Carton dimensions (L × W × H) 51 × 35 × 33 cm
Carton gross weight 21.64 kg

The JXB-RD is a fuse terminal block of the JXB series for conductors from 0.2 to 4 mm², rated 6.3 A / 750 V, for NS 35 and NS 32 DIN rails. It protects individual control and signal circuits directly at the terminal strip.

A DIN-rail terminal for wiring control cabinets, machine panels and distribution boards. Specifications: 0.2–4 mm², 6.3A 750V, 8 mm Wide, DIN-Rail Fuse Terminal.
