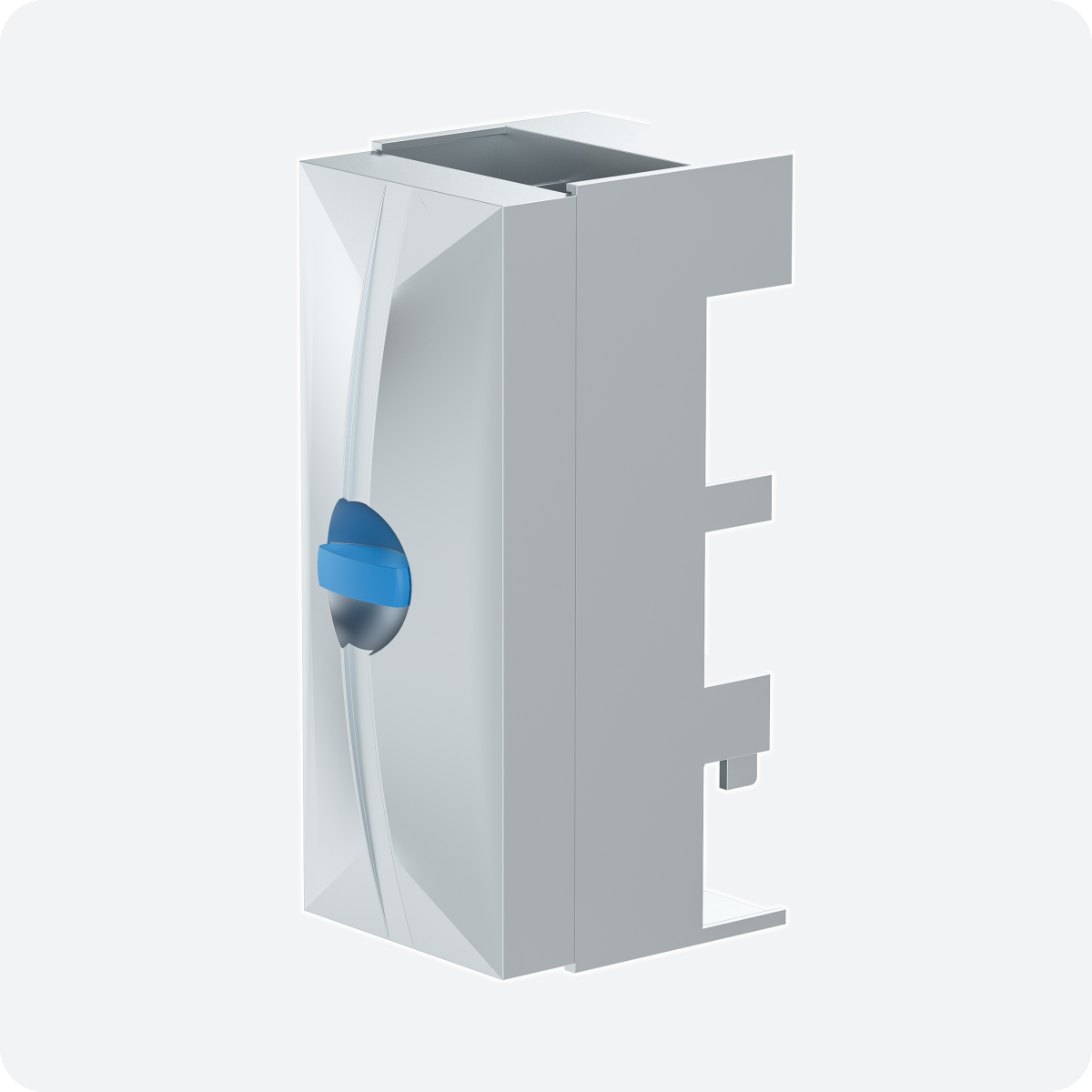

• LP440A81 Busbar Connecting Terminal Plate 440A | 3-Pole, 35–120 mm², 81 × 200 mm, with Cover Cap | 60 mm Busbar System Feed-In
LP440A81
LP440A81

LP440A81 Busbar Connecting Terminal Plate 440A | 3-Pole, 35–120 mm², 81 × 200 mm, with Cover Cap | 60 mm Busbar System Feed-In

$32.40 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Model: LP440A81
Select The Options Above

The LP440A81 is a 3-pole connecting terminal plate rated 440 A for 60 mm busbar systems with 20×5 to 30×10 mm flat busbars and double-T / triple-T profiles. It accepts 35–120 mm² conductors (solid/stranded, fine-stranded and fine-stranded with ferrule) and is supplied with a cover cap.

Technical Specifications

Model LP440A81
Order number 5010.051
Product type Connecting terminal plate, 3-pole, with cover cap
Rated current 440 A
Conductor cross-section 35–120 mm² — s(r), f, f + ferrule
Terminal Cu 6/10 × 15.5 × 0.8
Size (W × H) 81 × 200 mm
For busbars 20×5 to 30×10 mm, double-T and triple-T section
System 60 mm busbar system

Packaging

Units per box 1 pc
Box dimensions (L × W × H) 21.4 × 12.2 × 9.2 cm
Box gross weight 0.62 kg
Units per carton 18 pcs
Carton dimensions (L × W × H) 51 × 35 × 33 cm
Carton gross weight 11.23 kg

The LP440A81 is a 3-pole connecting terminal plate rated 440 A for 60 mm busbar systems with 20×5 to 30×10 mm flat busbars and double-T / triple-T profiles. It accepts 35–120 mm² conductors (solid/stranded, fine-stranded and fine-stranded with ferrule) and is supplied with a cover cap.

Designed for LEIPOLE 60 mm busbar systems in switchgear, distribution boards and control panels. Specifications: 3-Pole, 35–120 mm², 81 × 200 mm, with Cover Cap.
