LPSU Busbar Supports, End Covers & Extension Clamps
LEIPOLE LPSU busbar supports hold and insulate copper busbar runs inside switchgear, distribution boards and control panels at 60 mm phase spacing. The B-type supports are designed for double-T profile busbars; the A-type supports with internal screw holes accept 12–30 mm wide flat busbars in 5 mm and 10 mm thickness as well as double-T profiles. Matching end covers protect exposed busbar ends, the LPSU1-A provides an individually mountable PE/N busbar support with PE and N labels, and the A1990/A1827 clamps extend busbar runs at 630 A and 1250 A.
Busbar Supports
| Model | Order No. | Type | For busbars (mm) |
|---|---|---|---|
| LPSU1-B | 5010.097 | 1-pole, for connection to LPSU3-B and individually mountable; for double-T profiles, without end cover, 60 mm spacing | Double-T profile |
| LPSU3-B | 5010.098 | 3-pole; for double-T profiles, without end cover, 60 mm spacing | Double-T profile |

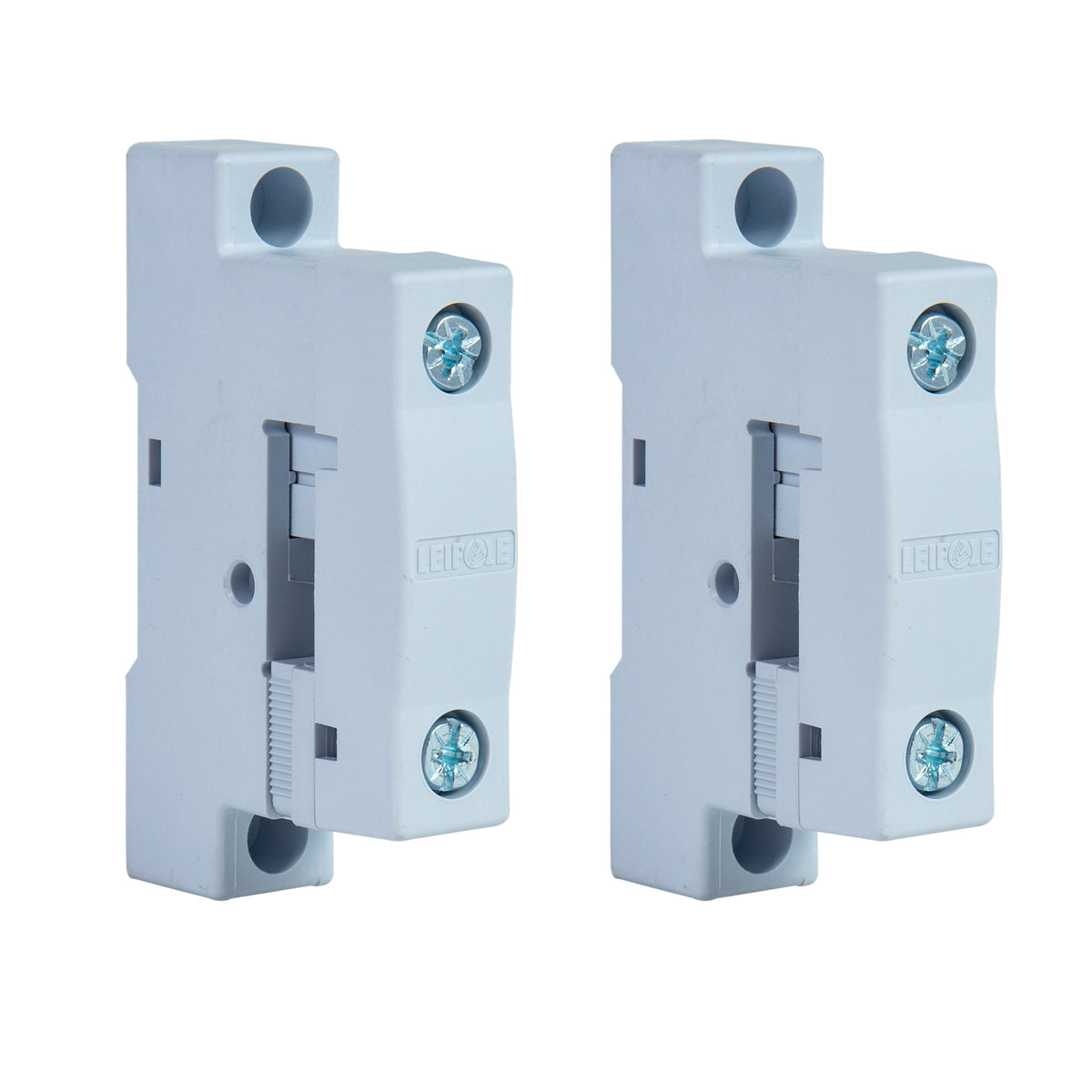

| LPSU1-A | 5010.042 | PE/N busbar support, 1-pole, individually mountable, including PE and N labels | — |

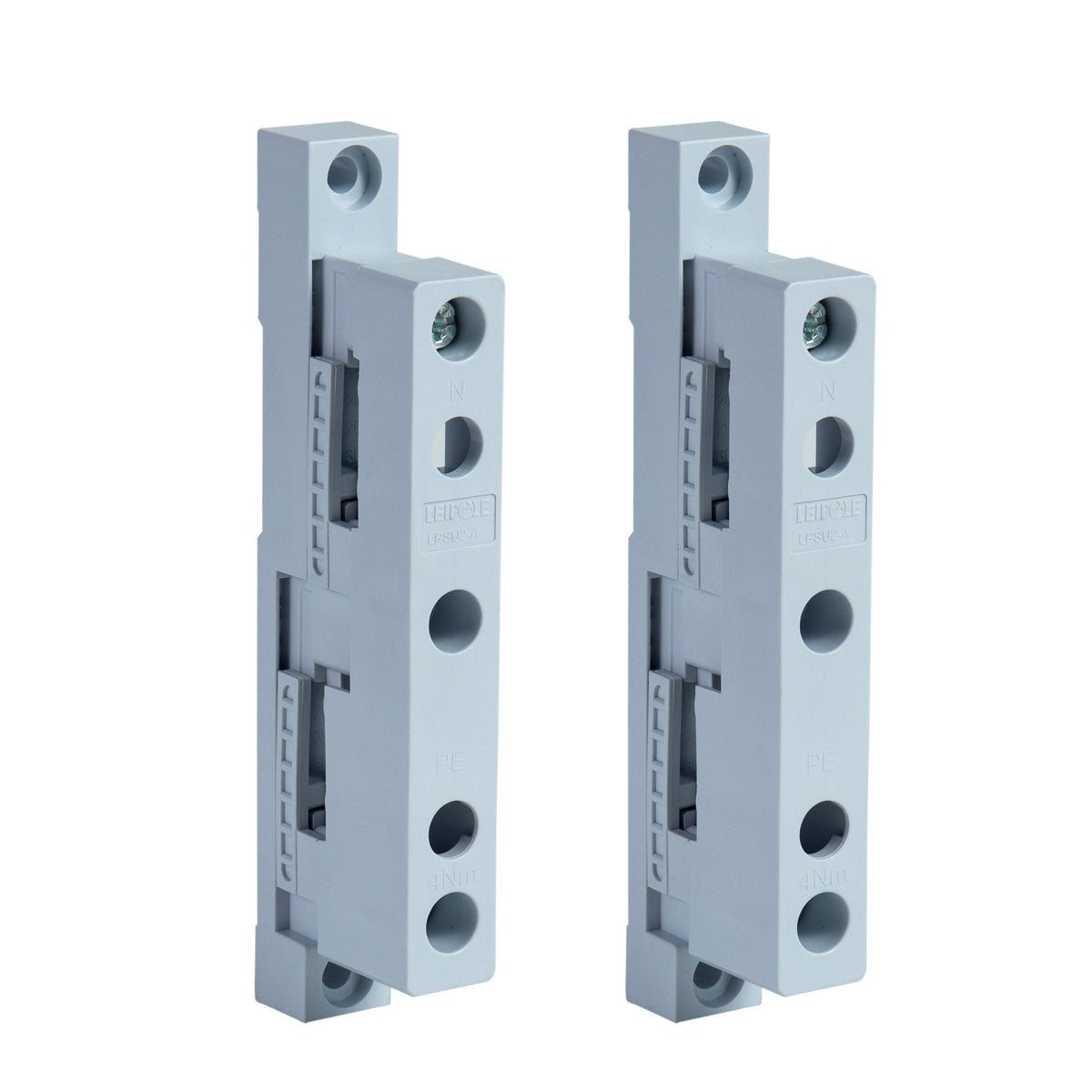

| LPSU2-A | 5010.039 | 2-pole with internal screw holes; for double-T profiles or 10 × 30 / 5 × 30, 60 mm spacing | 12, 15, 20, 30 × 5, 10 |

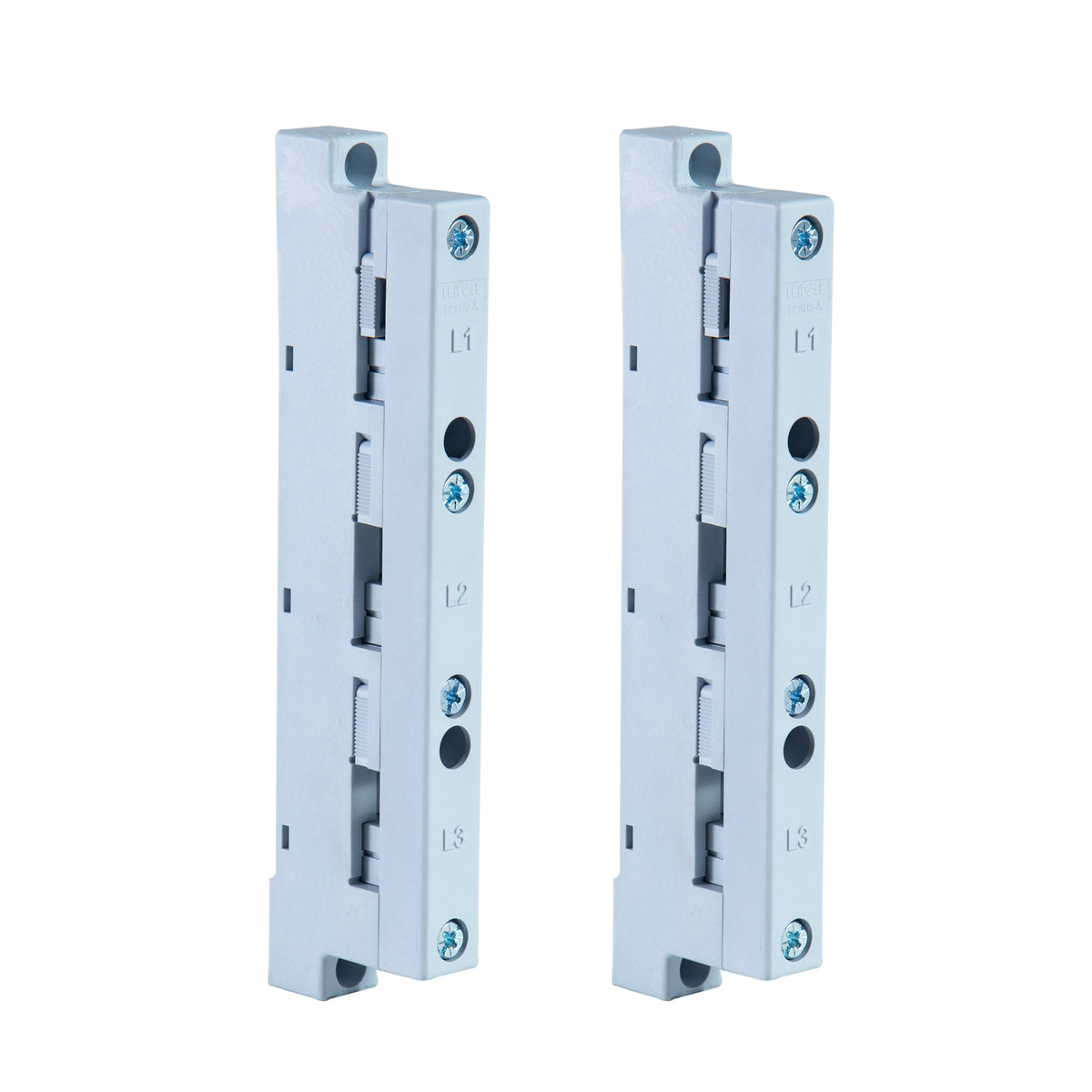

| LPSU3-A | 5010.040 | 3-pole with internal screw holes; for double-T profiles or 10 × 30 / 5 × 30, 60 mm spacing | 12, 15, 20, 25, 30 × 5, 10 |

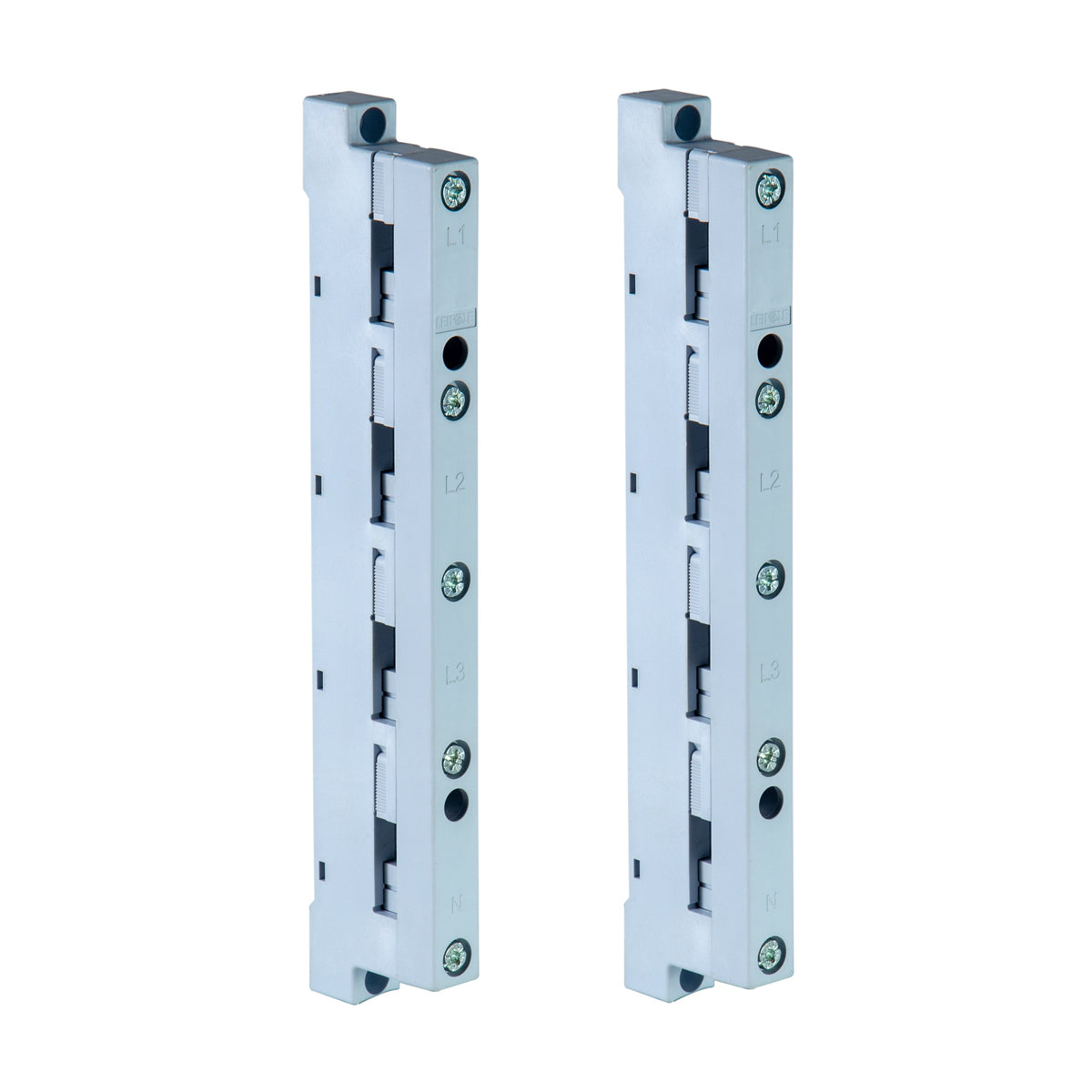

| LPSU4-A | 5010.041 | 4-pole with internal screw holes; for double-T profiles or 10 × 30 / 5 × 30, 60 mm spacing | 12, 15, 20, 25, 30 × 5, 10 |
End Covers
| Model | Order No. | For use with |
|---|---|---|
| LPSU1-BBF | 5010.102 | LPSU1-B |
| LPSU3-BBF | 5010.103 | LPSU3-B |
| LPSU1-ABF | 5010.044 | LPSU1-A |
| LPSU2-ABF | 5010.045 | LPSU2-A, set right and left |
| LPSU3-ABF | 5010.046 | LPSU3-A, set right and left |
| LPSU4-ABF | 5010.047 | LPSU4-A, set right and left |
Busbar Extension Connection Clamps
| Model | Order No. | Rated current | For busbars |
|---|---|---|---|
| A1990 | 5010.165 | 630 A | 20, 25, 30 × 5 and 10 mm |
| A1827 | 5010.166 | 1250 A | 2T (double-T) busbars |
Packaging
| Model | Qty per pack | G.W. per pack (kg) | Full carton |
|---|---|---|---|
| LPSU1-B | 2 pcs | 0.27 | — |
| LPSU3-B | 2 pcs | 1.96 | 36, 51 × 35 × 33 cm, 35.23 kg |
| LPSU1-A | 1 set | 0.16 | 200, 51 × 35 × 33 cm, 32.77 kg |
| LPSU2-A | 1 set | 0.23 | 120, 51 × 35 × 33 cm, 27.81 kg |
| LPSU3-A | 1 set | 0.38 | 85, 51 × 35 × 33 cm, 32.62 kg |
| LPSU4-A | 1 set | 0.46 | 68, 51 × 35 × 33 cm, 31.57 kg |
| LPSU1-BBF | 1 set | 0.10 | — |
| LPSU3-BBF | 1 set | 0.20 | — |
| LPSU1-ABF | 1 set | 0.01 | — |
| LPSU2-ABF | 1 set | 0.09 | — |
| LPSU3-ABF | 1 set | 0.14 | 100, 51 × 35 × 33 cm, 13.9 kg |
