MC3 / MC25 / MC35 Multi-Gate Cable Entry Plate | 7–35 Cable Gates, IP65, RAL 7035, TPE-V0 | Steel-Reinforced Cable Entry System

$17.54 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Model: MC3 (7 gates)
Select The Options Above

MC-series multi-gate cable entry plates route many cables through a single enclosure cut-out. Each plate has a steel-plate load-bearing reinforcement and TPE-V0 grommet membranes and gaskets in grey RAL 7035, sealing to IP65 in accordance with IEC 60529. Three gate layouts are available: MC3, MC25 and MC35. Sold individually.

Model Overview

Model Order no. Cable gates (quantity × cable diameter) Carton quantity

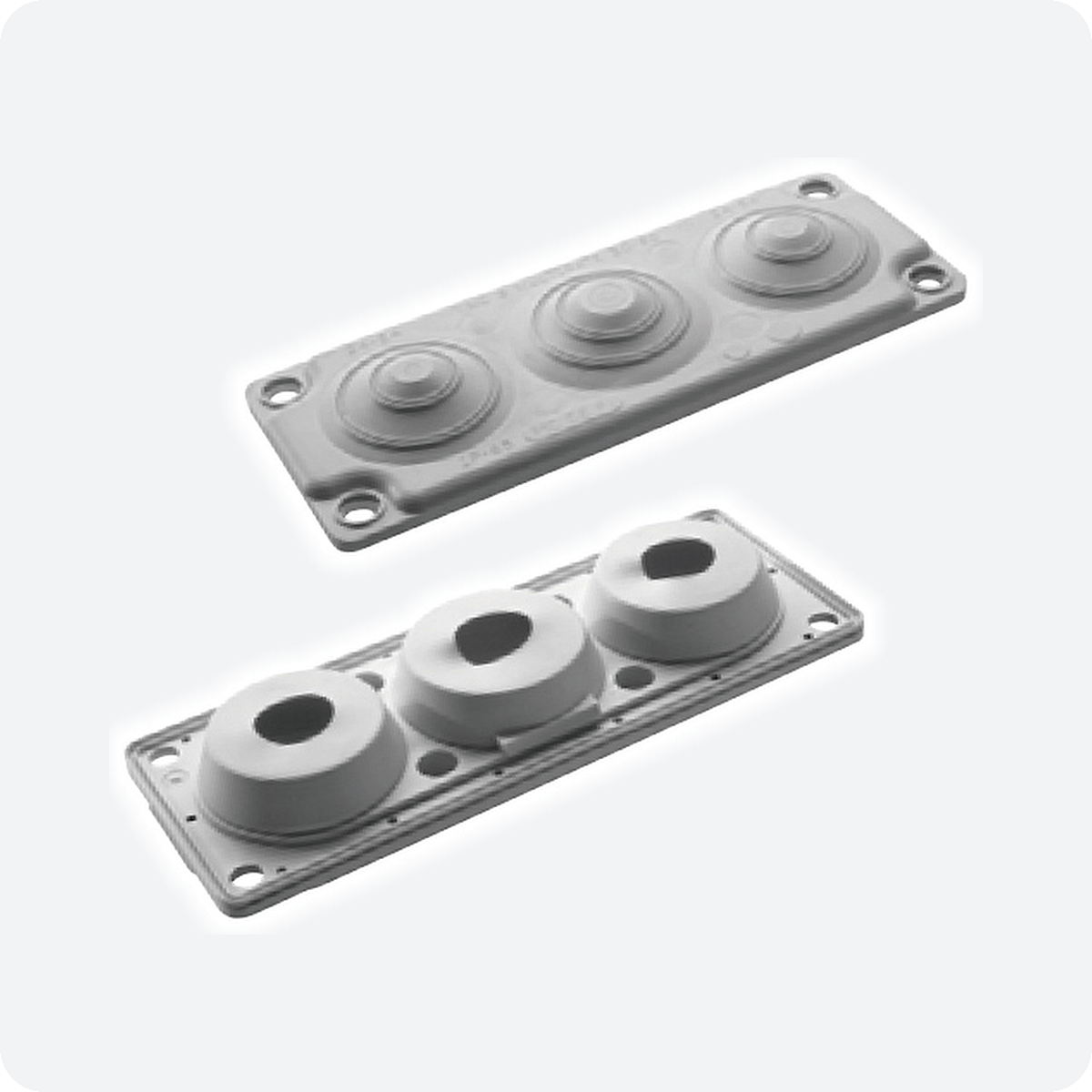

MC3 9014.117 7 gates: 4 × 8–12 mm, 1 × 30–60 mm, 2 × 24–54 mm 50 pcs

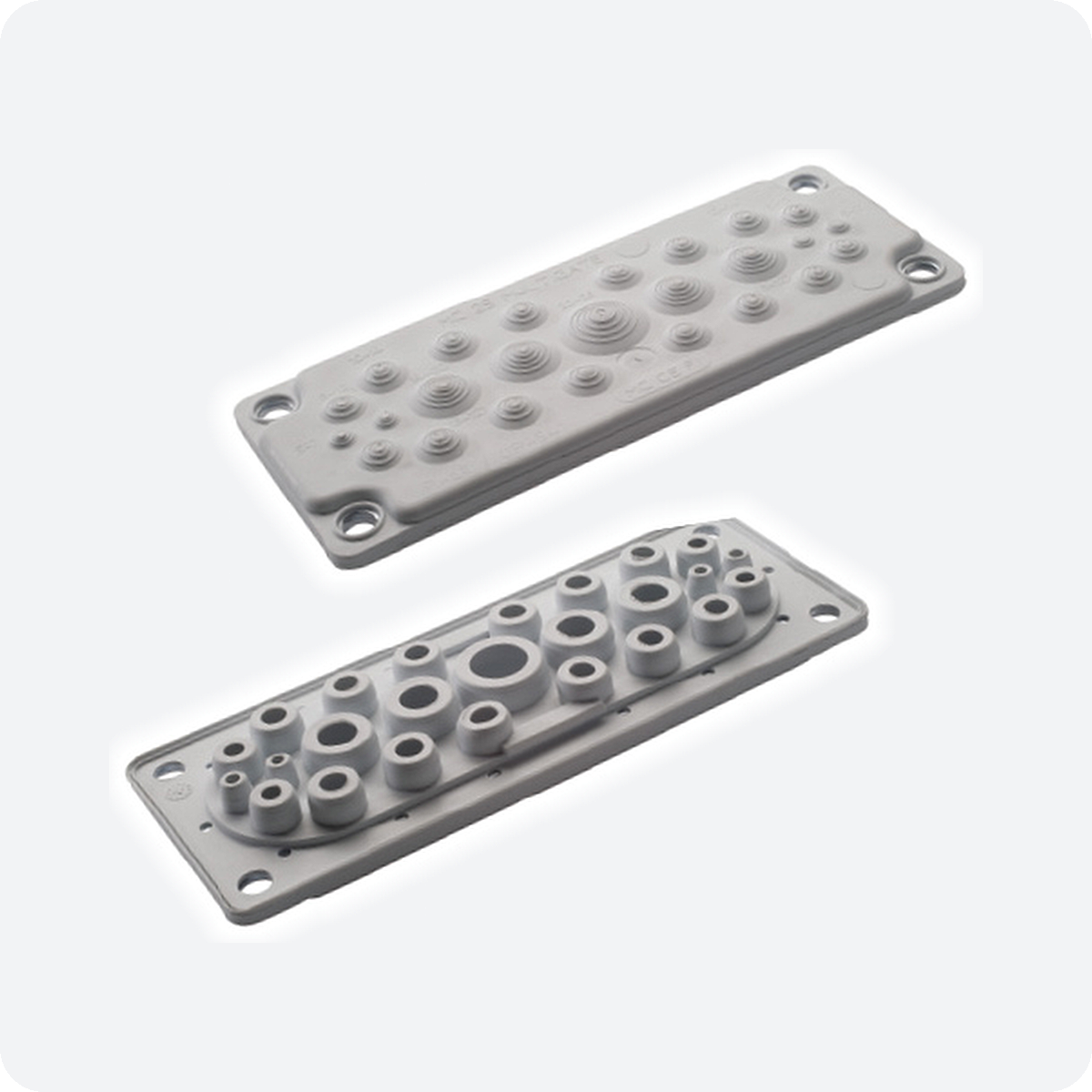

MC25 9014.118 25 gates: 4 × 5–7 mm, 4 × 14–22 mm, 4 × 8–12 mm, 1 × 20–26 mm, 12 × 10–14 mm 50 pcs

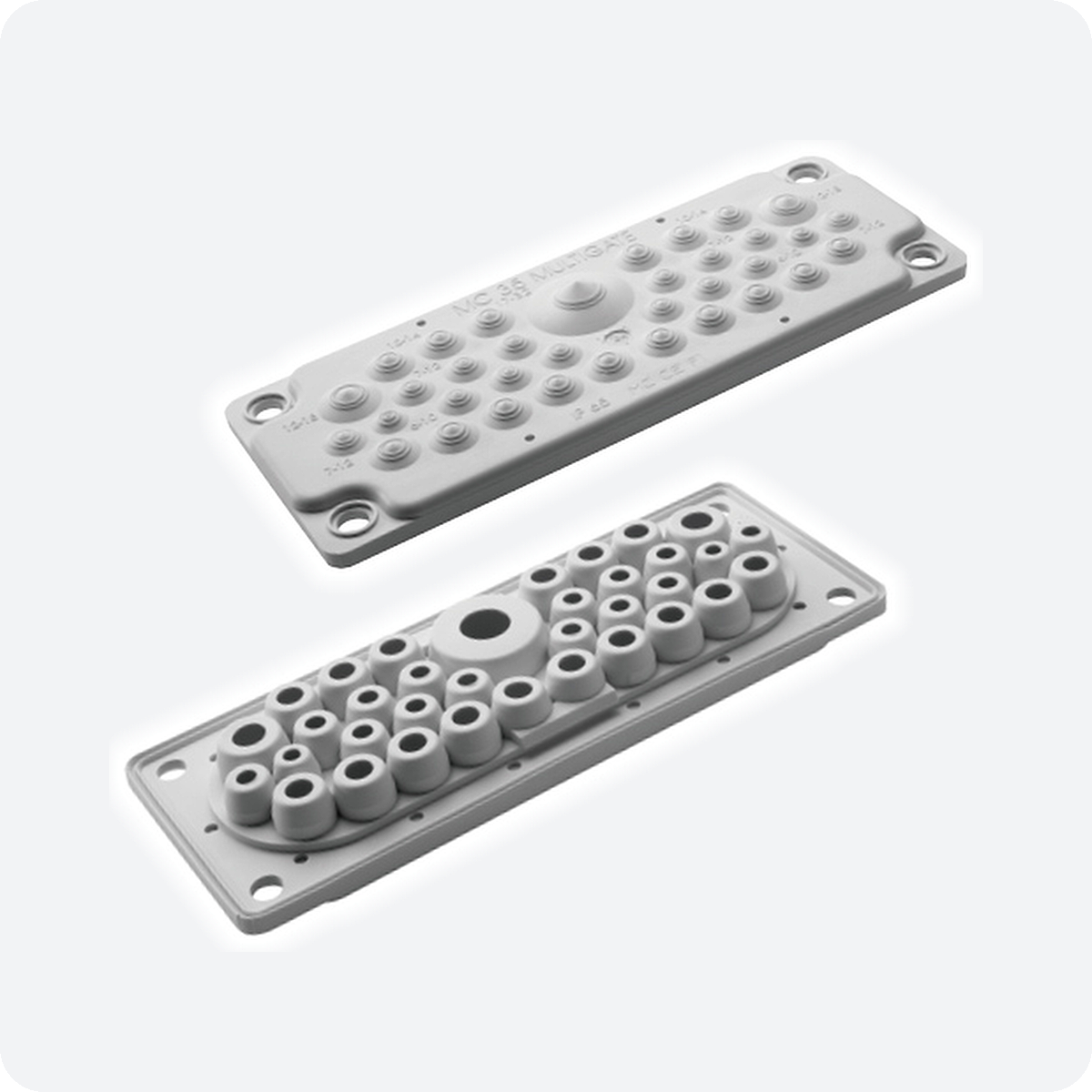

MC35 9014.119 35 gates: 2 × 6–10 mm, 2 × 12–18 mm, 14 × 7–12 mm, 16 × 10–14 mm, 1 × 17–32 mm 50 pcs

Technical Specifications

Degree of protection IP65 (IEC 60529)
Reinforcement Steel plate
Grommet membranes and gaskets TPE-V0 thermoplastic elastomer
Colour Grey, RAL 7035
UV resistance ISO 4892-2
Glow-wire test IEC 60695-2-10, 650 °C
Operating temperature −40 °C to +40 °C
Storage temperature −40 °C to +40 °C
Mounting temperature 0 °C to +30 °C
Material service life Minimum 10 years

Packaging

Model Order no. Carton quantity Carton gross weight Carton dimensions
MC3 9014.117 50 pcs 11.2 kg 47 × 25 × 26 cm
MC25 9014.118 50 pcs 11.9 kg 47 × 25 × 26 cm
MC35 9014.119 50 pcs 12.9 kg 47 × 25 × 26 cm

MC-series multi-gate cable entry plates route many cables through a single enclosure cut-out. Each plate has a steel-plate load-bearing reinforcement and TPE-V0 grommet membranes and gaskets in grey RAL 7035, sealing to IP65 in accordance with IEC 60529.

Specifications: 7–35 Cable Gates, IP65, RAL 7035, TPE-V0.
