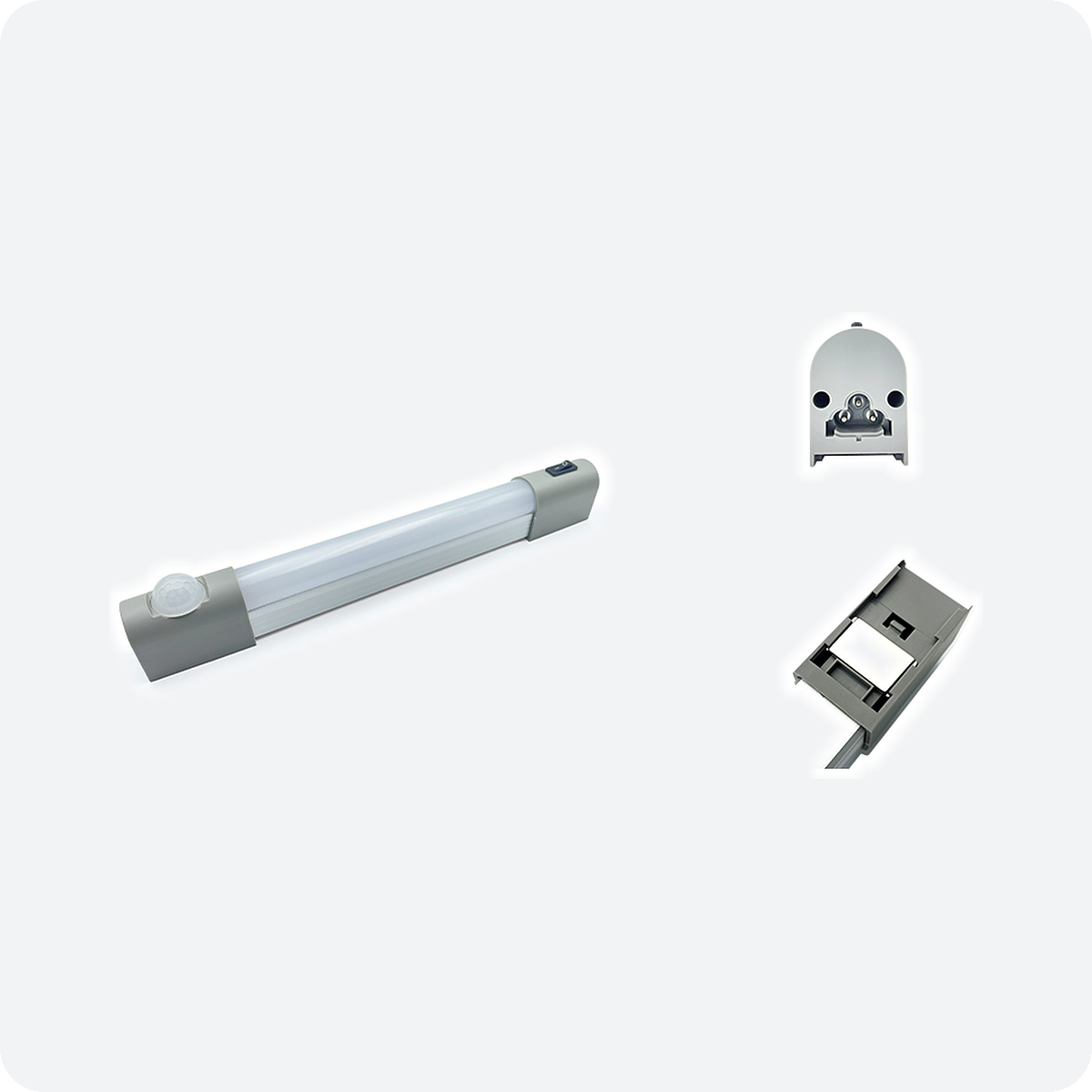

• PLE-300L–600L LED Cabinet Light | 8–14W, AC 90–265V, 800–1600 lm, 6000–7000K, Motion Sensor | Magnetic Aluminium Enclosure Light
PLE-300L–600L
PLE-300L–600L

PLE-300L–600L LED Cabinet Light | 8–14W, AC 90–265V, 800–1600 lm, 6000–7000K, Motion Sensor | Magnetic Aluminium Enclosure Light

$36.93 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Power: 8W – PLE-300L-8W
Select The Options Above

PLE-series LED cabinet lights combine an aluminium base and PC lampshade with an integrated motion sensor and magnetic mounting. A built-in constant-current driver runs directly from AC 90–265 V, 50–60 Hz, and four lengths from 344 mm to 644 mm deliver 8 W to 14 W of cool-white 6000–7000 K light. Sold individually.

Model Overview

Model Order no. Power Luminous flux Illuminance @ 1 m LED qty Size L × W × H Mounting hole distance L1 Body length L2
PLE-300L-8W 9017.010 8 W 800–900 lm 160 lux 3030 × 12 344 × 30 × 41.5 mm 320 mm 300 mm
PLE-400L-10W 9017.011 10 W 1000–1100 lm 200 lux 3030 × 18 444 × 30 × 41.5 mm 420 mm 400 mm
PLE-500L-12W 9017.012 12 W 1200–1400 lm 240 lux 3030 × 24 544 × 30 × 41.5 mm 520 mm 500 mm
PLE-600L-14W 9017.013 14 W 1400–1600 lm 280 lux 3030 × 30 644 × 30 × 41.5 mm 620 mm 600 mm

Technical Specifications

Input voltage AC 90–265 V
Frequency 50–60 Hz
LED efficacy 100 lm/W
Colour temperature 6000–7000 K
Colour rendering index Ra > 80
Beam angle 180°
Activation Motion sensor
Mounting Magnetic base; screw fixing with M5 screws
Connection Three-core power sockets at both ends
LED lifespan ≥ 50,000 h
Operating temperature −40 °C to +60 °C
Storage temperature −40 °C to +70 °C
Flammability rating UL94-V0
Material Lampshade PC, base aluminium
Certifications CCC, CE
Included accessories 2 × M5×12 self-tapping screws, 2 × magnets, 2 × installation brackets, 0.5 m three-core power cord

Packaging

Model Order no. Carton quantity Carton gross weight Carton dimensions
PLE-300L-8W 9017.010 30 pcs 10.5 kg 35 × 40 × 36 cm
PLE-400L-10W 9017.011 30 pcs 11.2 kg 45 × 40 × 36 cm
PLE-500L-12W 9017.012 30 pcs 12 kg 55 × 40 × 36 cm
PLE-600L-14W 9017.013 30 pcs 13.2 kg 65 × 40 × 36 cm

PLE-series LED cabinet lights combine an aluminium base and PC lampshade with an integrated motion sensor and magnetic mounting. A built-in constant-current driver runs directly from AC 90–265 V, 50–60 Hz, and four lengths from 344 mm to 644 mm deliver 8 W to 14 W of cool-white 6000–7000 K light.

Fit it inside control cabinets and enclosures to light the work area during installation, service and inspection. Specifications: 8–14W, AC 90–265V, 800–1600 lm, 6000–7000K, Motion Sensor.
