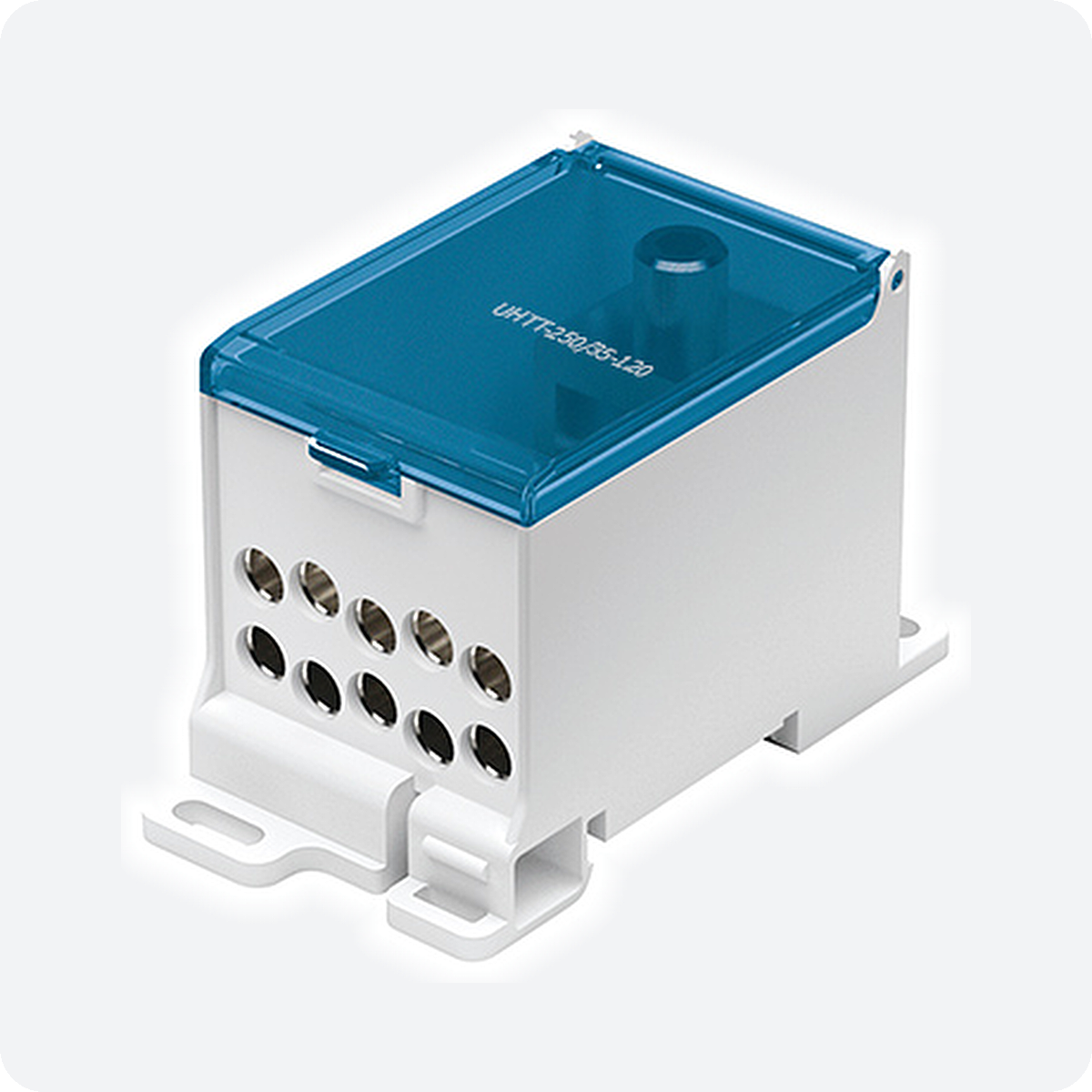

UHTT-250/35-120/6X16 Power Distribution Terminal – 250 A / 690 V

The LEIPOLE UHTT-250/35-120/6X16 is a one-in, six-out power distribution terminal from the UHTT-250 series, splitting a single 35–120 mm² main conductor into 6 branch circuits of 4–16 mm². Rated 250 A with 690 V IEC insulation voltage, it uses nickel-plated H59 brass conductors in a PA66-FR housing with PC cover (UL94 V-0) and IP20 touch protection. Outputs are arranged in tiers for clear, accessible wiring.

Technical Specifications

Model UHTT-250/35-120/6X16
Order number 5012.151
Configuration 1 input / 6 outputs
Rated current 250 A
Rated insulation voltage (Ui) 690 V IEC
Rated voltage (UL) 660 V UL
Peak withstand current (Ipk) 30 kA
Input conductor 35–120 mm² (single conductor)
Output terminals Bottom layer: 3 × 4–16 mm² (strip 23 mm)
Middle layer: 3 × 4–16 mm² (strip 13 mm)
Screw torque M10 ≤ 40.80 kgf·cm, M5 ≤ 20.40 kgf·cm
Dielectric withstand voltage 3500 V
Temperature rise ≤ 45 K
IP rating IP20
Flammability UL94 V-0
Materials Cover: PC; Housing: PA66-FR; Conductor: H59 brass, nickel-plated; Screws: carbon steel, trivalent passivation (48 h salt spray)
Certification CE, RoHS

Packaging

Sales unit Pack of 3 pcs
Inner box quantity 3 pcs
Inner box gross weight 0.80 kg

The LEIPOLE UHTT-250/35-120/6X16 is a one-in, six-out power distribution terminal from the UHTT-250 series, splitting a single 35–120 mm² main conductor into 6 branch circuits of 4–16 mm². Rated 250 A with 690 V IEC insulation voltage, it uses nickel-plated H59 brass conductors in a PA66-FR housing with PC cover (UL94 V-0) and IP20 touch protection.

Use it as a compact distribution point in panels where one main conductor must be split into branch circuits. Specifications: 35–120 mm² Input, 6 × 4–16 mm² Outputs, 690V IEC.
