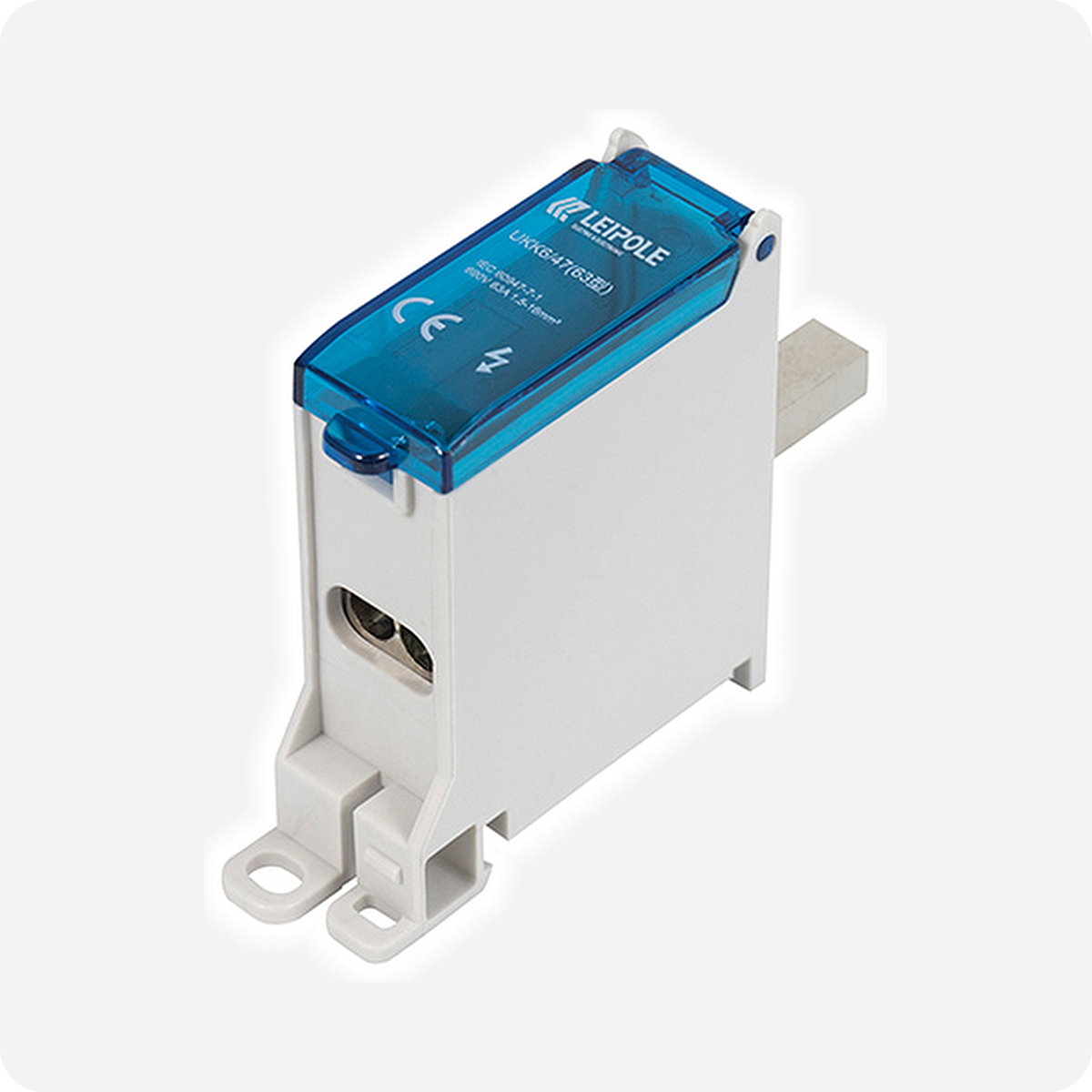

UKK6/47/4x10 Switch Terminal – 1 In / 4 Out

The LEIPOLE UKK6/47/4x10 switch terminal (UKK6/47 series) is designed for modular switching devices such as miniature circuit breakers, RCCBs and isolators. Its pin-type (Type 63) inlet plugs directly into the breaker terminal and distributes the circuit to 4 outgoing conductors of 1.5–10 mm², arranged on 2 tiers – no additional jumper wires or copper/aluminium transition bars are required. Insulation voltage 690 V, rated voltage 380 V, with nickel-plated H59 brass conductors and a PA66-FR housing (UL94 V-0, IP20).

Technical Specifications

Model UKK6/47/4x10
Order number 5012.021
Configuration 1 input / 4 outputs
Inlet Pin-type (Type 63)
Outlet cross-section 4 × 1.5–10 mm²
Rated insulation voltage 690 V
Rated voltage 380 V
Screw torque M4 ≤ 12.24 kgf·cm
Temperature rise ≤ 45 K
Dielectric withstand voltage 3500 V
IP rating IP20
Flammability UL94 V-0
Certification CE
Materials Dust cover: PC; Body and side panels: PA66-FR; Conductor: H59 brass, nickel-plated; Screws: carbon steel, trivalent passivation (48 h salt spray)

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 Pin (Type 63) –
Outlet – bottom tier 2 1.5–10 21 mm
Outlet – middle tier 2 1.5–10 11 mm

Packaging

Sales unit 1 pc
Inner box quantity 10 pcs
Inner box dimensions 18.8 × 7.7 × 6.4 cm
Inner box gross weight 0.65 kg
Carton quantity 216 pcs
Carton dimensions 51 × 35 × 33 cm

The LEIPOLE UKK6/47/4x10 switch terminal (UKK6/47 series) is designed for modular switching devices such as miniature circuit breakers, RCCBs and isolators. Its pin-type (Type 63) inlet plugs directly into the breaker terminal and distributes the circuit to 4 outgoing conductors of 1.5–10 mm², arranged on 2 tiers – no additional jumper wires or copper/aluminium transition bars are required.

Fit it to the breaker terminal to feed 4 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: Type 63 Pin Inlet, 4 × 1.5–10 mm² Outputs, 690V.
