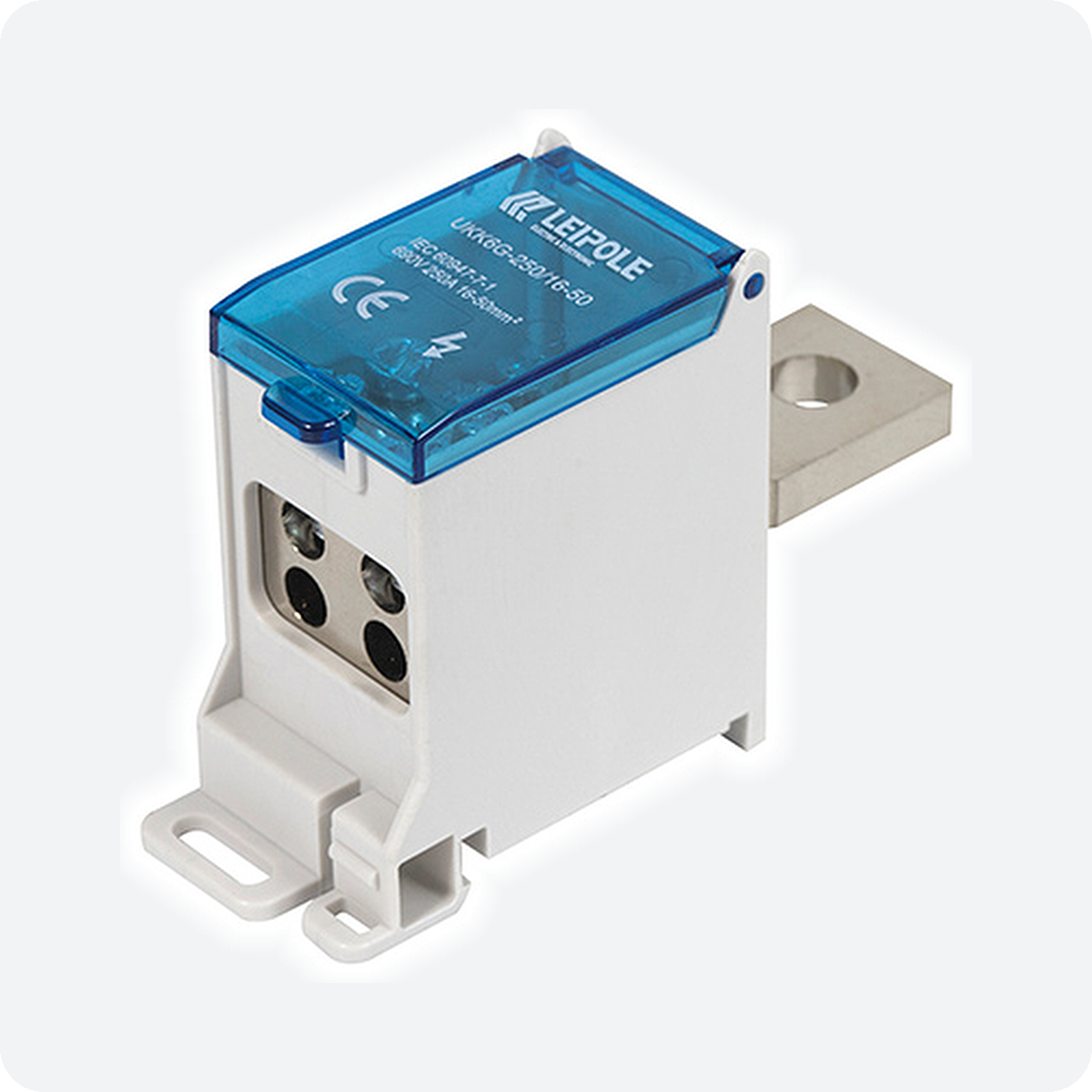

UKK6G-250/16-50/6x16 Switch Terminal – 1 In / 6 Out

The LEIPOLE UKK6G-250/16-50/6x16 is a one-in, six-out switch terminal from the UKK6G-250/16-50 series for miniature circuit breakers, RCCBs and other modular switching devices. A single 16–50 mm² feeder is distributed to 6 outgoing conductors of 1.5–16 mm², arranged on 2 tiers, connecting directly to the switching device without additional wires or copper/aluminium transition bars. Insulation voltage 690 V, rated voltage 380 V, with nickel-plated H59 brass conductors and a PA66-FR housing (UL94 V-0, IP20).

Technical Specifications

Model UKK6G-250/16-50/6x16
Order number 5012.043
Configuration 1 input / 6 outputs
Inlet 16–50 mm²
Outlet cross-section 6 × 1.5–16 mm²
Rated insulation voltage 690 V
Rated voltage 380 V
Screw torque M5 ≤ 20.40 kgf·cm
Temperature rise ≤ 45 K
Dielectric withstand voltage 3500 V
IP rating IP20
Flammability UL94 V-0
Certification CE
Materials Dust cover: PC; Body and side panels: PA66-FR; Conductor: H59 brass, nickel-plated; Screws: carbon steel, trivalent passivation (48 h salt spray)

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 16–50 –
Outlet – bottom tier 3 1.5–16 31 mm
Outlet – middle tier 3 1.5–16 16 mm

Packaging

Sales unit 1 pc
Inner box quantity 6 pcs
Inner box dimensions 19.5 × 9.2 × 6.8 cm
Inner box gross weight 0.93 kg
Carton quantity 132 pcs
Carton dimensions 51 × 35 × 33 cm
Carton gross weight 20.46 kg

The LEIPOLE UKK6G-250/16-50/6x16 is a one-in, six-out switch terminal from the UKK6G-250/16-50 series for miniature circuit breakers, RCCBs and other modular switching devices. A single 16–50 mm² feeder is distributed to 6 outgoing conductors of 1.5–16 mm², arranged on 2 tiers, connecting directly to the switching device without additional wires or copper/aluminium transition bars.

Fit it to the breaker terminal to feed 6 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In / 6 Out, 16–50 mm² Input, 6 × 1.5–16 mm² Outputs, 690V.
