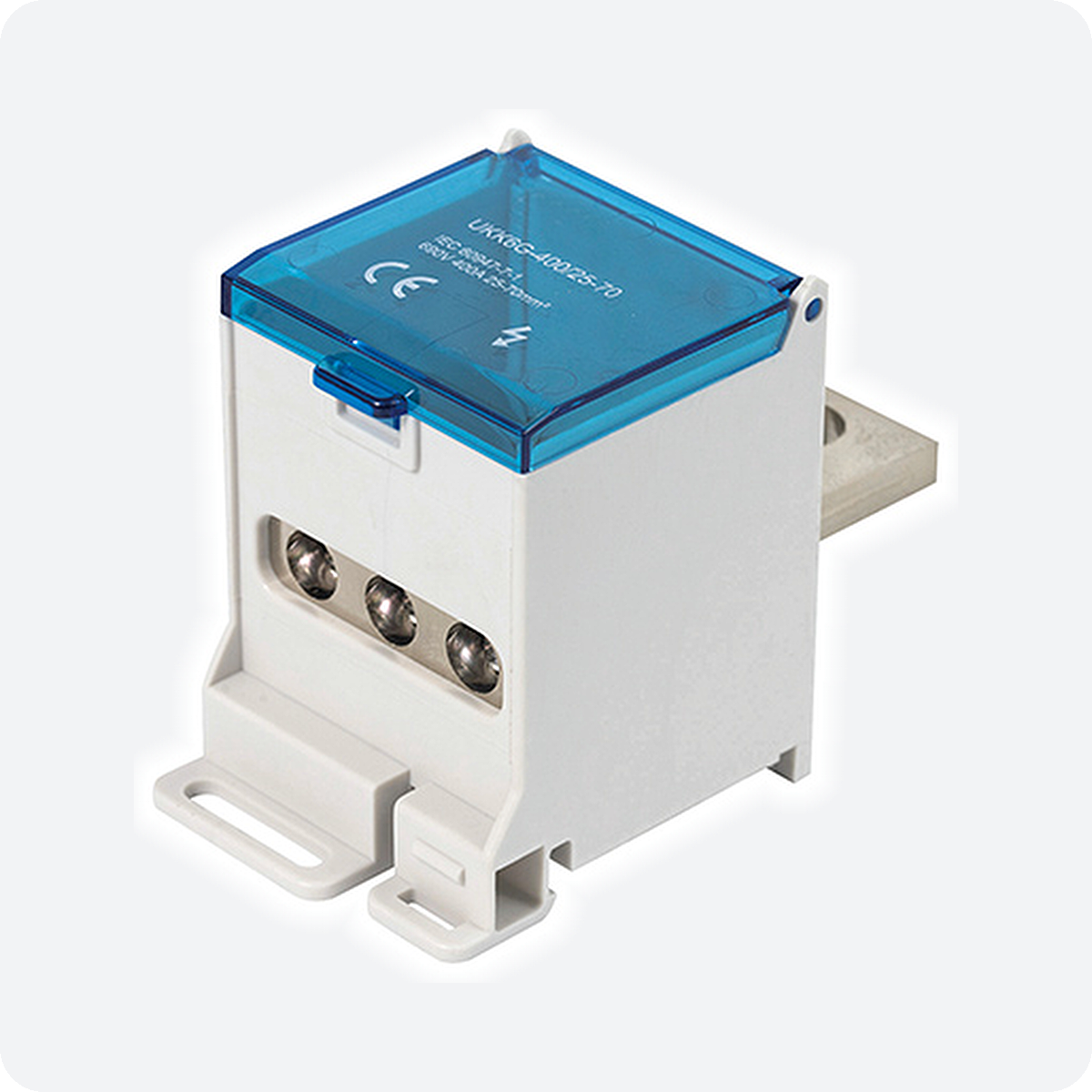

UKK6G-400/25-70/12x16 Switch Terminal – 1 In / 12 Out

The LEIPOLE UKK6G-400/25-70/12x16 is a one-in, twelve-out switch terminal from the UKK6G-400/25-70 series for miniature circuit breakers, RCCBs and other modular switching devices. A single 25–70 mm² feeder is distributed to 12 outgoing conductors of 1.5–16 mm², arranged on 3 tiers, connecting directly to the switching device without additional wires or copper/aluminium transition bars. Insulation voltage 690 V, rated voltage 380 V, with nickel-plated H59 brass conductors and a PA66-FR housing (UL94 V-0, IP20).

Technical Specifications

Model UKK6G-400/25-70/12x16
Order number 5012.053
Configuration 1 input / 12 outputs
Inlet 25–70 mm²
Outlet cross-section 12 × 1.5–16 mm²
Rated insulation voltage 690 V
Rated voltage 380 V
Screw torque M5 ≤ 20.40 kgf·cm
Temperature rise ≤ 45 K
Dielectric withstand voltage 3500 V
IP rating IP20
Flammability UL94 V-0
Certification CE
Materials Dust cover: PC; Body and side panels: PA66-FR; Conductor: H59 brass, nickel-plated; Screws: carbon steel, trivalent passivation (48 h salt spray)

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 25–70 –
Outlet – bottom tier 4 1.5–16 32 mm
Outlet – middle tier 4 1.5–16 22 mm
Outlet – top tier 4 1.5–16 12 mm

Packaging

Sales unit 1 pc
Inner box quantity 3 pcs
Inner box dimensions 14.8 × 9.3 × 7.4 cm
Inner box gross weight 0.68 kg
Carton quantity 81 pcs
Carton gross weight 18.36 kg

The LEIPOLE UKK6G-400/25-70/12x16 is a one-in, twelve-out switch terminal from the UKK6G-400/25-70 series for miniature circuit breakers, RCCBs and other modular switching devices. A single 25–70 mm² feeder is distributed to 12 outgoing conductors of 1.5–16 mm², arranged on 3 tiers, connecting directly to the switching device without additional wires or copper/aluminium transition bars.

Fit it to the breaker terminal to feed 12 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In / 12 Out, 25–70 mm² Input, 12 × 1.5–16 mm² Outputs, 690V.
