• UKK6G-600/35-95/8x16 Switch Terminal Power Distribution Block | 1 In / 8 Out, 35–95 mm² Input, 8 × 1.5–16 mm² Outputs, 690V | IP20 MCB Feed Terminal
UKK6G-600/35-95/8x16
UKK6G-600/35-95/8x16

UKK6G-600/35-95/8x16 Switch Terminal Power Distribution Block | 1 In / 8 Out, 35–95 mm² Input, 8 × 1.5–16 mm² Outputs, 690V | IP20 MCB Feed Terminal

$14.77 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Select The Options Above

UKK6G-600/35-95/8x16 Switch Terminal – 1 In / 8 Out

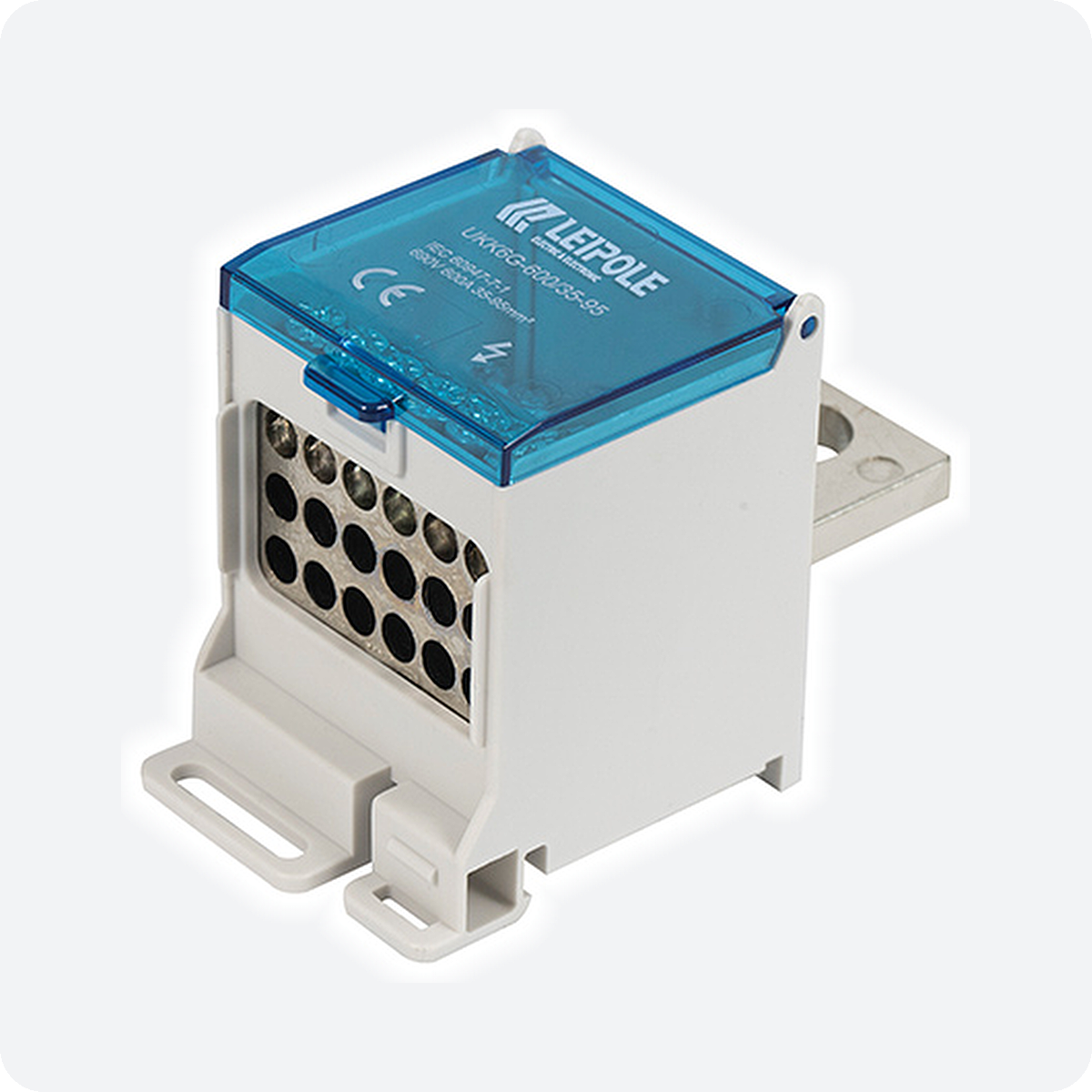

The LEIPOLE UKK6G-600/35-95/8x16 is a one-in, eight-out switch terminal from the UKK6G-600/35-95 series for miniature circuit breakers, RCCBs and other modular switching devices. A single 35–95 mm² feeder is distributed to 8 outgoing conductors of 1.5–16 mm², arranged on 2 tiers, connecting directly to the switching device without additional wires or copper/aluminium transition bars. Insulation voltage 690 V, rated voltage 380 V, with nickel-plated H59 brass conductors and a PA66-FR housing (UL94 V-0, IP20).

Technical Specifications

Model UKK6G-600/35-95/8x16
Order number 5012.060
Configuration 1 input / 8 outputs
Inlet 35–95 mm²
Outlet cross-section 8 × 1.5–16 mm²
Rated insulation voltage 690 V
Rated voltage 380 V
Screw torque M5 ≤ 20.40 kgf·cm
Temperature rise ≤ 45 K
Dielectric withstand voltage 3500 V
IP rating IP20
Flammability UL94 V-0
Certification CE
Materials Dust cover: PC; Body and side panels: PA66-FR; Conductor: H59 brass, nickel-plated; Screws: carbon steel, trivalent passivation (48 h salt spray)

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 35–95 –
Outlet – bottom tier 4 1.5–16 32 mm
Outlet – middle tier 4 1.5–16 16 mm

Packaging

Sales unit 1 pc
Inner box quantity 3 pcs
Inner box dimensions 14.8 × 9.3 × 7.4 cm
Inner box gross weight 0.65 kg
Carton dimensions 51 × 35 × 33 cm

The LEIPOLE UKK6G-600/35-95/8x16 is a one-in, eight-out switch terminal from the UKK6G-600/35-95 series for miniature circuit breakers, RCCBs and other modular switching devices. A single 35–95 mm² feeder is distributed to 8 outgoing conductors of 1.5–16 mm², arranged on 2 tiers, connecting directly to the switching device without additional wires or copper/aluminium transition bars.

Fit it to the breaker terminal to feed 8 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In / 8 Out, 35–95 mm² Input, 8 × 1.5–16 mm² Outputs, 690V.

  • Standard delivery within 7–15 business days
  • Request a return within 30 days after the last item in your order is delivered
  • Return items in original condition for a full refund
  • Customers cover return shipping costs for standard returns
  • No restocking fee
  • Cancellation requests are accepted before the item is fulfilled (shipped)
Add to Cart Select The Options Above
