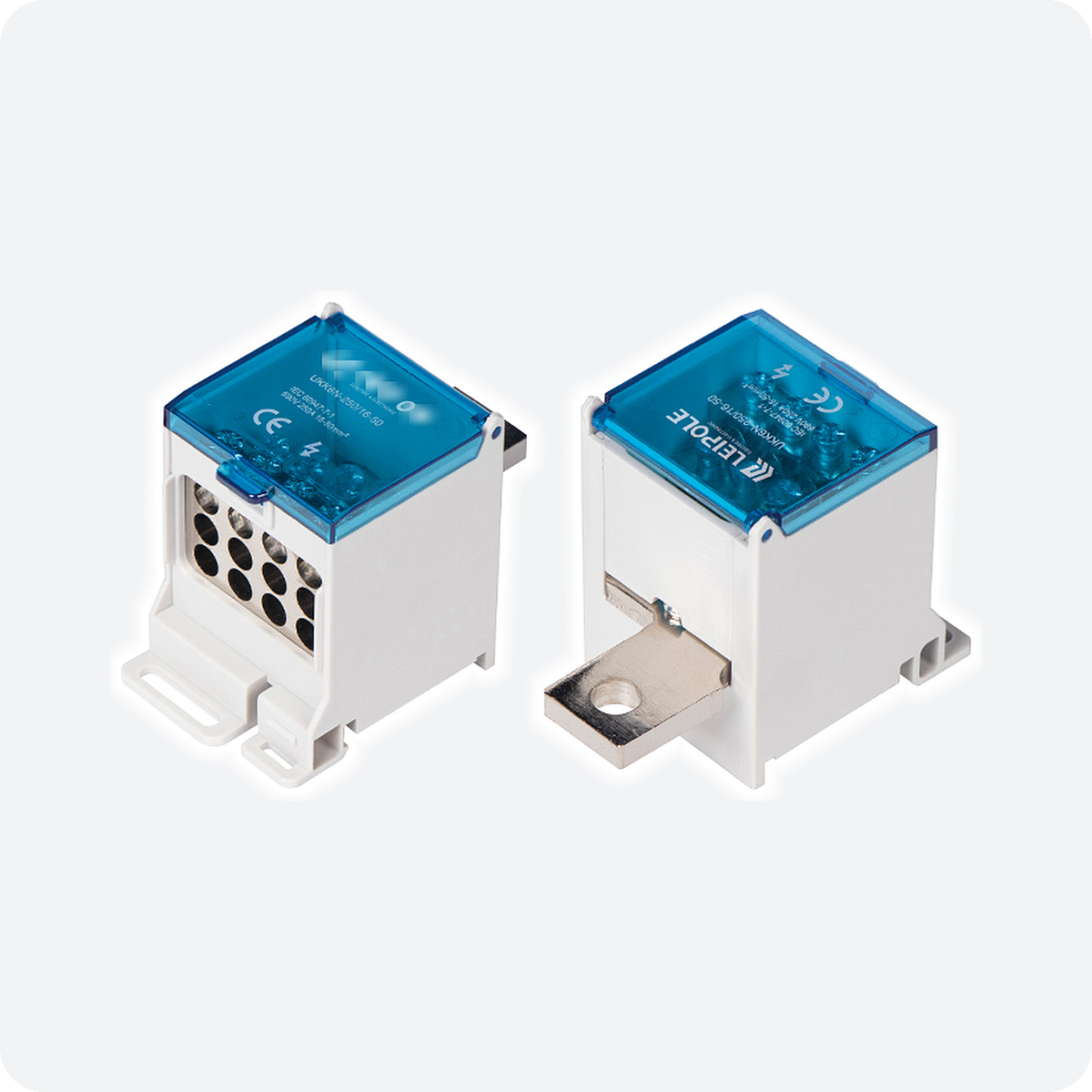

UKK6N-250/16-50/16×10 Switch Terminal – 1 In / 16 Out

The UKK6N-250/16-50/16×10 is a one-in, sixteen-out switch terminal (right-hand combination version) that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 16–50 mm² feeder is distributed to 16 outgoing conductors of 1.5–10 mm², arranged on 3 tiers – no additional wires, copper or aluminium bars are needed for the transition. Insulation voltage 690 V, rated voltage 380 V.

Technical Specifications

Model UKK6N-250/16-50/16×10
Order number 5012.080
Routes 1 in, 16 out
Inlet cross-section 16–50 mm²
Outlet cross-section 16 × 1.5–10 mm²
Insulation voltage 690 V
Rated voltage 380 V
Screw torque M4: ≤ 12.24 kgf·cm (≈ 1.2 N·m)
Temperature rise ≤45K
Dielectric withstand voltage 3500 V
IP rating IP20
Flame retardancy UL94 V-0
Certification CE
Conductor H59 brass, nickel-plated
Housing / side panels PA66-FR
Cover PC
Screws Carbon steel, trivalent rainbow passivation, 48 h salt spray

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 16–50 –
Outlet – bottom tier 4 1.5–10 32 mm
Outlet – middle tier 6 1.5–10 22 mm
Outlet – top tier 6 1.5–10 12 mm

Packaging

Sales unit 1 pc
Inner box quantity 3 pcs
Inner box dimensions 14.8 × 9.3 × 7.4 cm
Inner box gross weight 0.70 kg
Carton quantity 63 pcs
Carton dimensions 51 × 35 × 33 cm
Carton gross weight 14.60 kg

The UKK6N-250/16-50/16×10 is a one-in, sixteen-out switch terminal (right-hand combination version) that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices.

Fit it to the breaker terminal to feed 16 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In 16 Out, 16–50 mm² Input, 1.5–10 mm² Output.
