• UKK6N-250/16-50/8x10 Switch Terminal Power Distribution Block | 1 In 8 Out, 16–50 mm² Input, ≤10 mm² Output | IP20 690V Breaker Feed Terminal
UKK6N-250/16-50/8x10
UKK6N-250/16-50/8x10

UKK6N-250/16-50/8x10 Switch Terminal Power Distribution Block | 1 In 8 Out, 16–50 mm² Input, ≤10 mm² Output | IP20 690V Breaker Feed Terminal

$10.16 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Select The Options Above

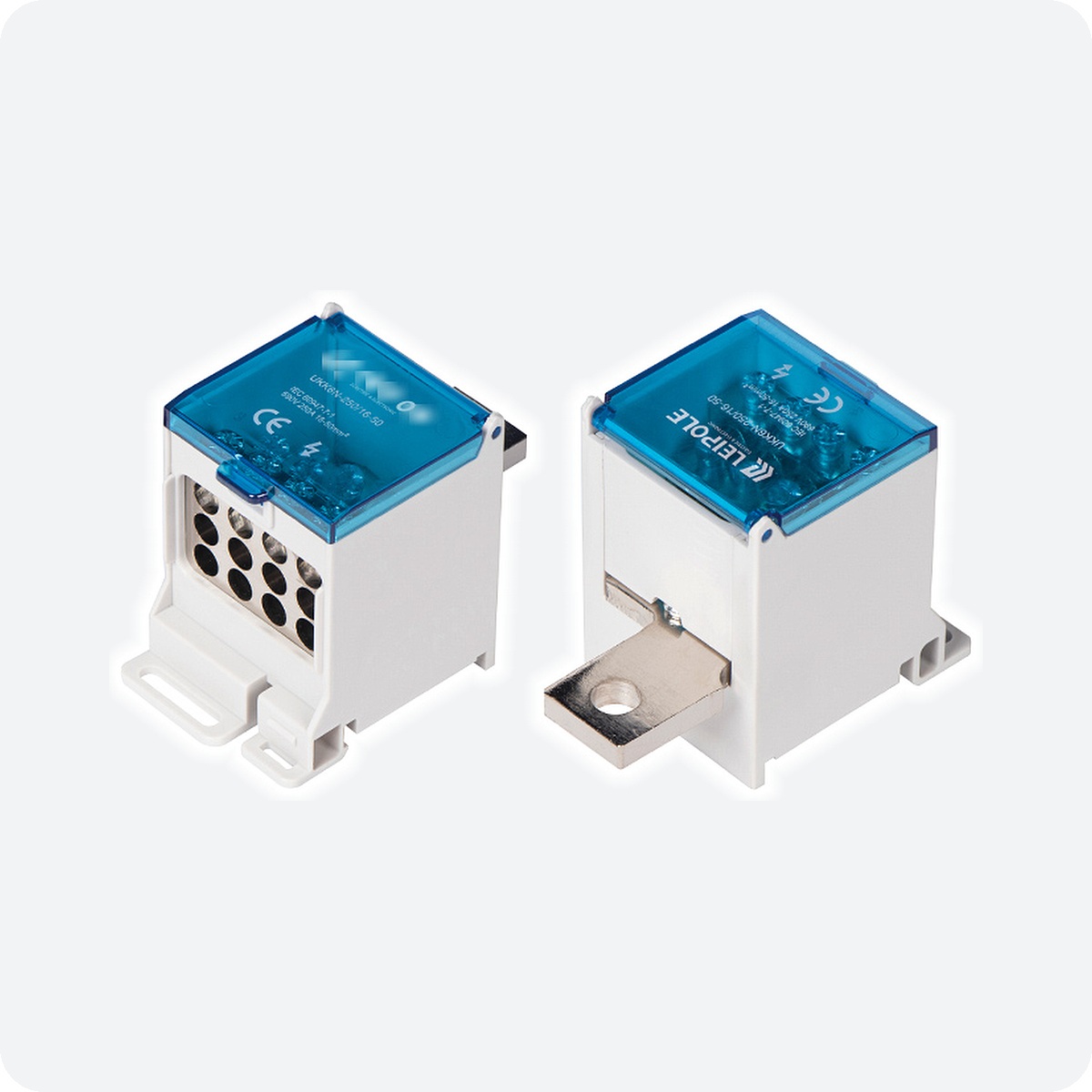

UKK6N-250/16-50/8×10 Switch Terminal – 1 In / 8 Out

The UKK6N-250/16-50/8×10 is a one-in, eight-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 16–50 mm² feeder is distributed to 8 outgoing conductors of up to 10 mm² – no additional wires, copper or aluminium bars are needed for the transition. Insulation voltage 690 V, rated voltage 380 V.

Technical Specifications

Model UKK6N-250/16-50/8×10
Order number 5012.074
Routes 1 in, 8 out
Inlet cross-section 16–50 mm²
Outlet cross-section 8 × up to 10 mm²
Insulation voltage 690 V
Rated voltage 380 V
IP rating IP20

Packaging

Sales unit 1 pc
Inner box quantity 6 pcs
Inner box dimensions 19.5 × 9.2 × 6.8 cm
Inner box gross weight 0.77 kg
Carton dimensions 51 × 35 × 33 cm

The UKK6N-250/16-50/8×10 is a one-in, eight-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 16–50 mm² feeder is distributed to 8 outgoing conductors of up to 10 mm² – no additional wires, copper or aluminium bars are needed for the transition.

Fit it to the breaker terminal to feed 8 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In 8 Out, 16–50 mm² Input, ≤10 mm² Output.
