• UKK6N-400/25-70/8x16 Switch Terminal Power Distribution Block | 1 In 8 Out, 25–70 mm² Input, ≤16 mm² Output | IP20 690V Breaker Feed Terminal
UKK6N-400/25-70/8x16
UKK6N-400/25-70/8x16

UKK6N-400/25-70/8x16 Switch Terminal Power Distribution Block | 1 In 8 Out, 25–70 mm² Input, ≤16 mm² Output | IP20 690V Breaker Feed Terminal

$13.39 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Select The Options Above

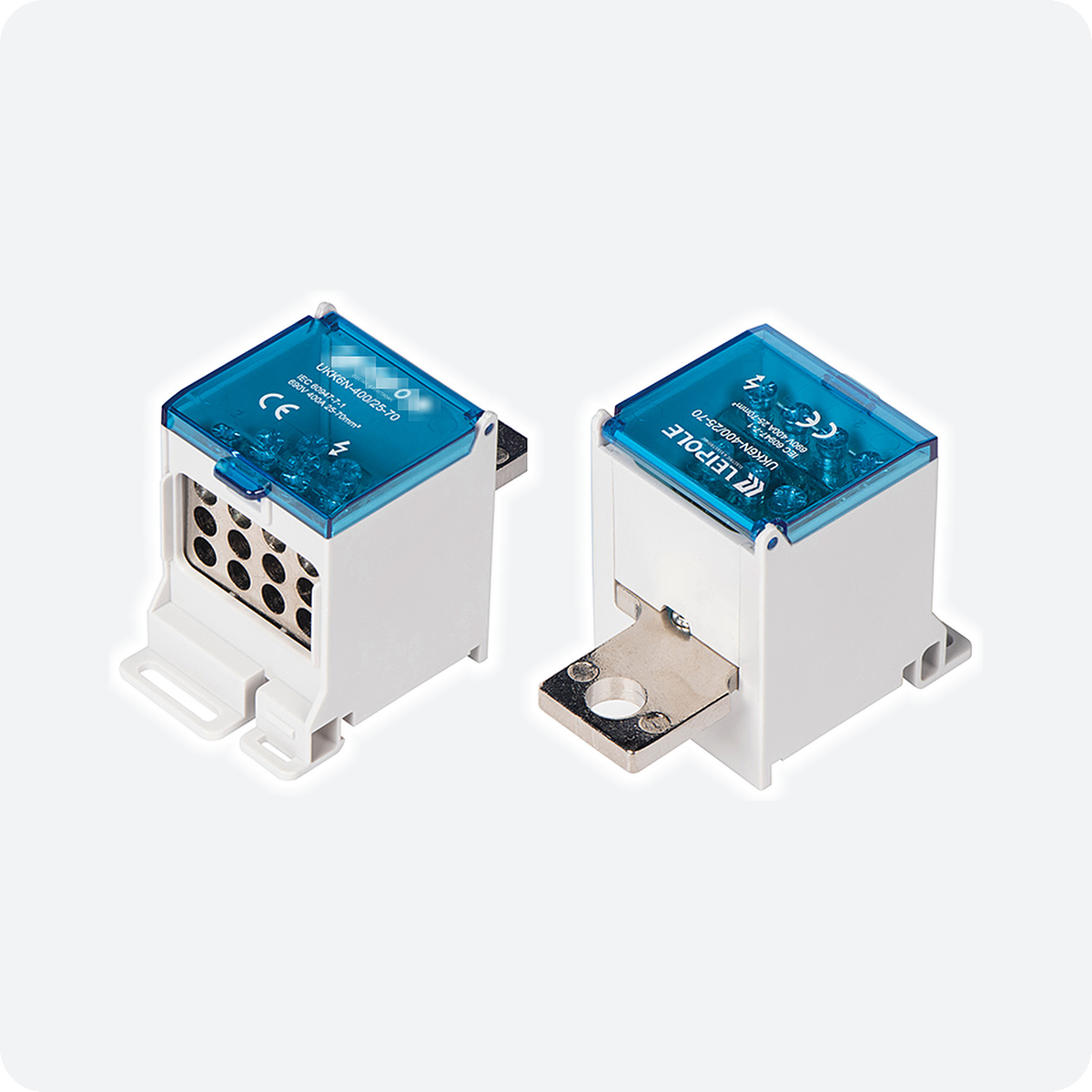

UKK6N-400/25-70/8×16 Switch Terminal – 1 In / 8 Out

The UKK6N-400/25-70/8×16 is a one-in, eight-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 25–70 mm² feeder is distributed to 8 outgoing conductors of up to 16 mm² – no additional wires, copper or aluminium bars are needed for the transition. Insulation voltage 690 V, rated voltage 380 V.

Technical Specifications

Model UKK6N-400/25-70/8×16
Order number 5012.082
Routes 1 in, 8 out
Inlet cross-section 25–70 mm²
Outlet cross-section 8 × up to 16 mm²
Insulation voltage 690 V
Rated voltage 380 V
IP rating IP20

Packaging

Sales unit 1 pc
Inner box quantity 3 pcs
Inner box dimensions 14.8 × 9.3 × 7.4 cm
Inner box gross weight 0.62 kg
Carton dimensions 51 × 35 × 33 cm

The UKK6N-400/25-70/8×16 is a one-in, eight-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 25–70 mm² feeder is distributed to 8 outgoing conductors of up to 16 mm² – no additional wires, copper or aluminium bars are needed for the transition.

Fit it to the breaker terminal to feed 8 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In 8 Out, 25–70 mm² Input, ≤16 mm² Output.
