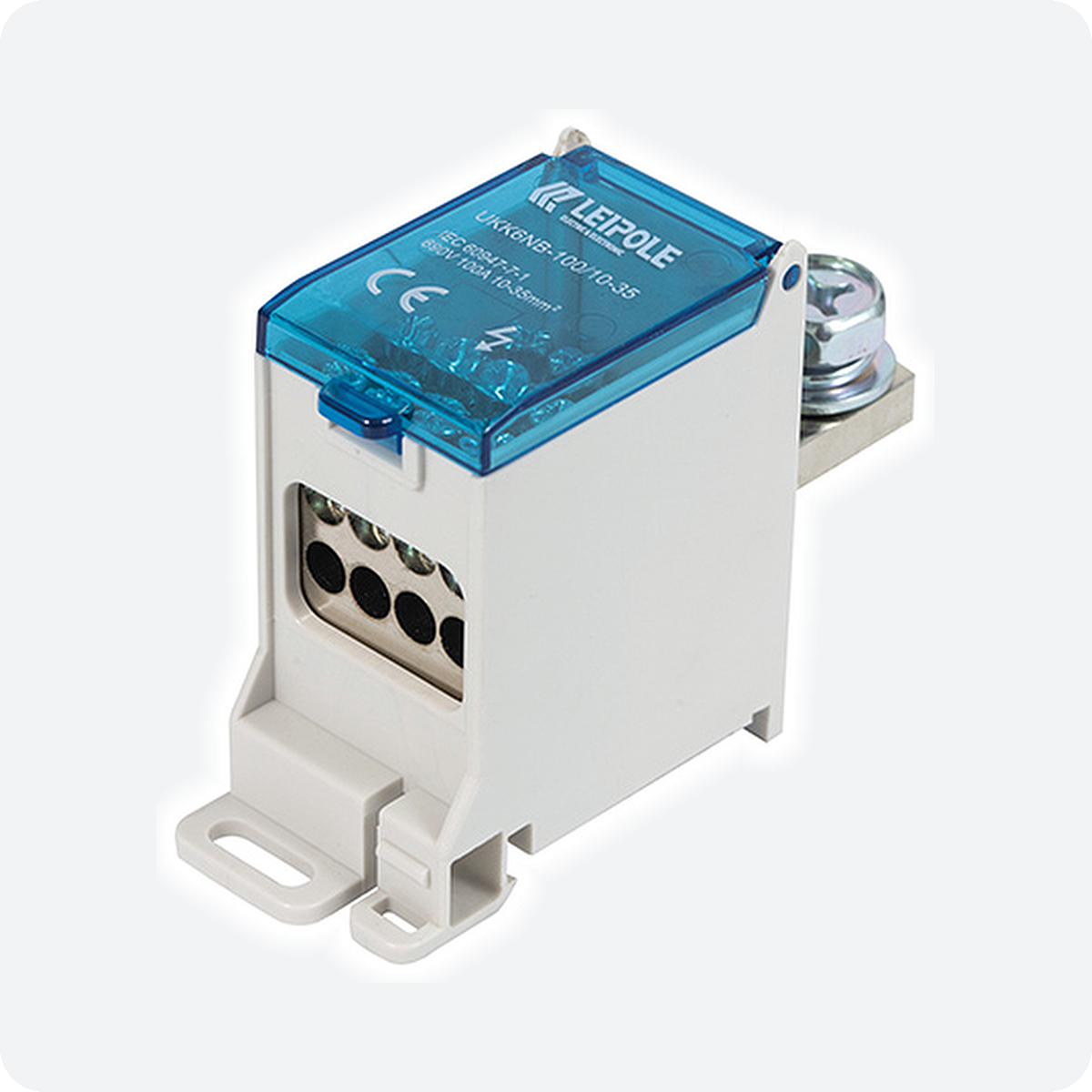

• UKK6NB-100/10-35/4x16 Switch Terminal Power Distribution Block | 1 In 4 Out, 10–35 mm² Input, 1.5–16 mm² Output | IP20 690V Breaker Feed Terminal
UKK6NB-100/10-35/4x16
UKK6NB-100/10-35/4x16

UKK6NB-100/10-35/4x16 Switch Terminal Power Distribution Block | 1 In 4 Out, 10–35 mm² Input, 1.5–16 mm² Output | IP20 690V Breaker Feed Terminal

$8.31 USD

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
In stock!
Select The Options Above

UKK6NB-100/10-35/4×16 Switch Terminal – 1 In / 4 Out

The UKK6NB-100/10-35/4×16 is a one-in, four-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 10–35 mm² feeder is distributed to 4 outgoing conductors of 1.5–16 mm², arranged on 2 tiers – no additional wires, copper or aluminium bars are needed for the transition. Insulation voltage 690 V, rated voltage 380 V.

Technical Specifications

Model UKK6NB-100/10-35/4×16
Order number 5012.093
Routes 1 in, 4 out
Inlet cross-section 10–35 mm²
Outlet cross-section 4 × 1.5–16 mm²
Insulation voltage 690 V
Rated voltage 380 V
Screw torque M8: ≤ 35.70 kgf·cm (≈ 3.5 N·m); M5: ≤ 20.40 kgf·cm (≈ 2.0 N·m)
Temperature rise ≤45K
Dielectric withstand voltage 3500 V
IP rating IP20
Flame retardancy UL94 V-0
Certification CE
Conductor H59 brass, nickel-plated
Housing / side panels PA66-FR
Cover PC
Screws Carbon steel, trivalent rainbow passivation, 48 h salt spray

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 10–35 –
Outlet – bottom tier 2 1.5–16 31 mm
Outlet – middle tier 2 1.5–16 16 mm

Packaging

Sales unit 1 pc
Inner box quantity 6 pcs
Inner box dimensions 19.5 × 9.2 × 6.8 cm
Inner box gross weight 1.01 kg
Carton dimensions 51 × 35 × 33 cm

The UKK6NB-100/10-35/4×16 is a one-in, four-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 10–35 mm² feeder is distributed to 4 outgoing conductors of 1.5–16 mm², arranged on 2 tiers – no additional wires, copper or aluminium bars are needed for the transition.

Fit it to the breaker terminal to feed 4 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In 4 Out, 10–35 mm² Input, 1.5–16 mm² Output.
