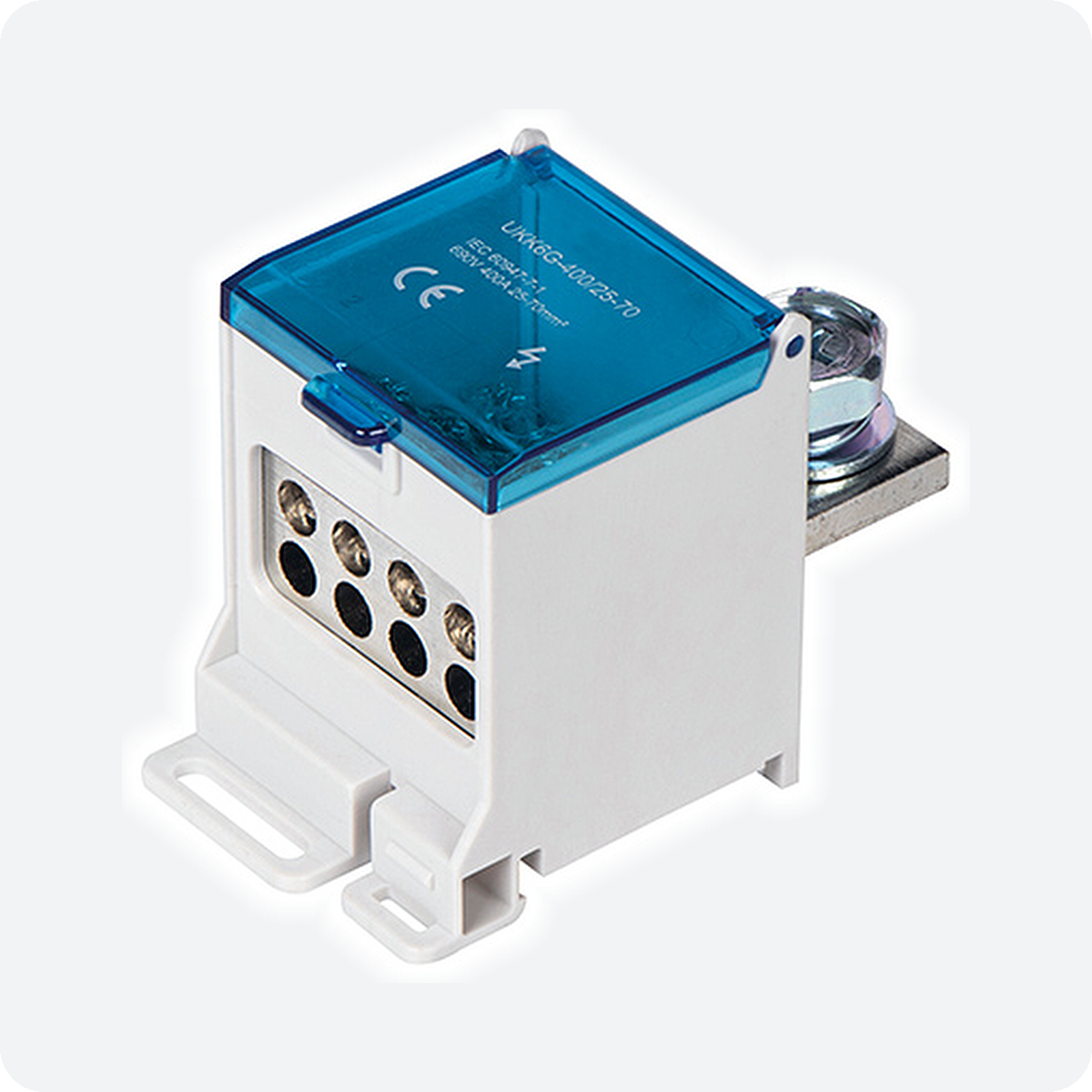

UKK6NB-400/25-70/6×16 Switch Terminal – 1 In / 6 Out

The UKK6NB-400/25-70/6×16 is a one-in, six-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 25–70 mm² feeder is distributed to 6 outgoing conductors of 1.5–16 mm², arranged on 2 tiers – no additional wires, copper or aluminium bars are needed for the transition. Insulation voltage 690 V, rated voltage 380 V.

Technical Specifications

Model UKK6NB-400/25-70/6×16
Order number 5012.108
Routes 1 in, 6 out
Inlet cross-section 25–70 mm²
Outlet cross-section 6 × 1.5–16 mm²
Insulation voltage 690 V
Rated voltage 380 V
Screw torque M10: ≤ 40.80 kgf·cm (≈ 4.0 N·m); M5: ≤ 20.40 kgf·cm (≈ 2.0 N·m)
Temperature rise ≤45K
Dielectric withstand voltage 3500 V
IP rating IP20
Flame retardancy UL94 V-0
Certification CE
Conductor H59 brass, nickel-plated
Housing / side panels PA66-FR
Cover PC
Screws Carbon steel, trivalent rainbow passivation, 48 h salt spray

Connection Data

Terminal Qty Cross-section (mm²) Stripping length
Inlet 1 25–70 –
Outlet – bottom tier 3 1.5–16 31 mm
Outlet – middle tier 3 1.5–16 16 mm

Packaging

Sales unit 1 pc
Inner box quantity 3 pcs
Inner box dimensions 14.8 × 9.3 × 7.4 cm
Inner box gross weight 0.71 kg
Carton dimensions 51 × 35 × 33 cm

The UKK6NB-400/25-70/6×16 is a one-in, six-out switch terminal that connects directly to the input terminal of miniature circuit breakers, residual current circuit breakers and other modular switching devices. A single 25–70 mm² feeder is distributed to 6 outgoing conductors of 1.5–16 mm², arranged on 2 tiers – no additional wires, copper or aluminium bars are needed for the transition.

Fit it to the breaker terminal to feed 6 outgoing circuits from a single feeder in distribution boards and control panels, without separate jumper wiring. Specifications: 1 In 6 Out, 25–70 mm² Input, 1.5–16 mm² Output.
